Siemens SINAMICS S120 - Cable Routing for Auxiliary Power Supply Modules

Electrical installation
4.5 Connections
Cabinet Modules NEMA
Manual, 04/2014, A5E03586450A
129
4.5.12.8
Cable routing for Auxiliary Power Supply Modules

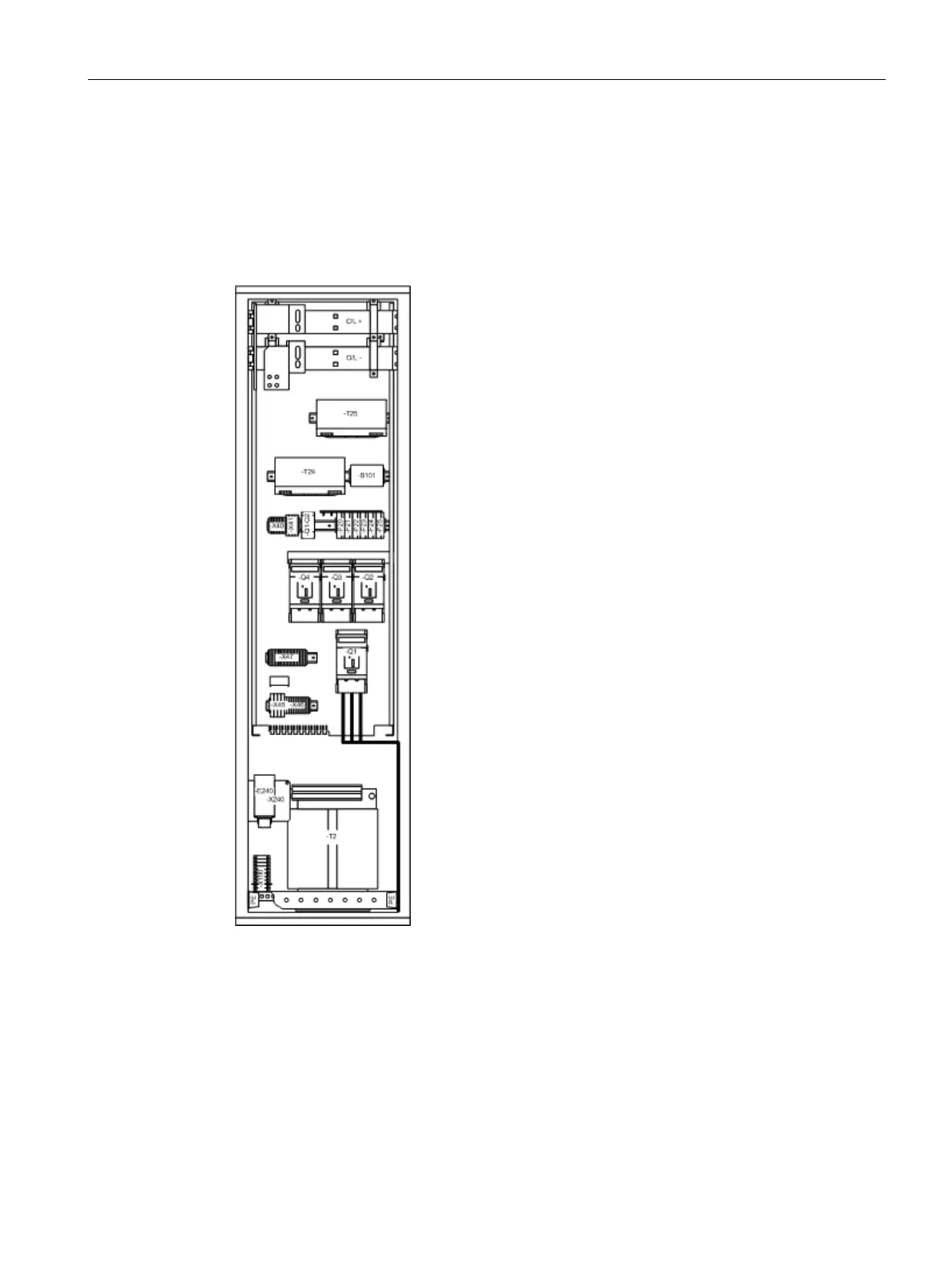

Cable routing for connection to the line supply
Auxiliary Power
Supply Module
1.
Feed the cable into the cabinet from the bottom right.
2.
Guide the cable up and, when it reaches the level of the line connection, guide it to the
left.
3.
Secure the cable at suitable points.
4.
Connect the cable to the line terminals.
