8.8 K08, AOP30 Advanced Operator Panel
Cabinet Modules NEMA
Manual, 04/2014, A5E03586450A
365
8.8
K08, AOP30 Advanced Operator Panel
Availability of option
This option is available for the following S120 Cabinet Modules:
● Basic Line Modules
● Smart Line Modules
● Active Line Modules
● Booksize Cabinet Kits
● Motor Modules in chassis format
Note
Option K08 is only available in conjunction with the CU32
0-2 Control Unit (option K90 or
K95).
Description

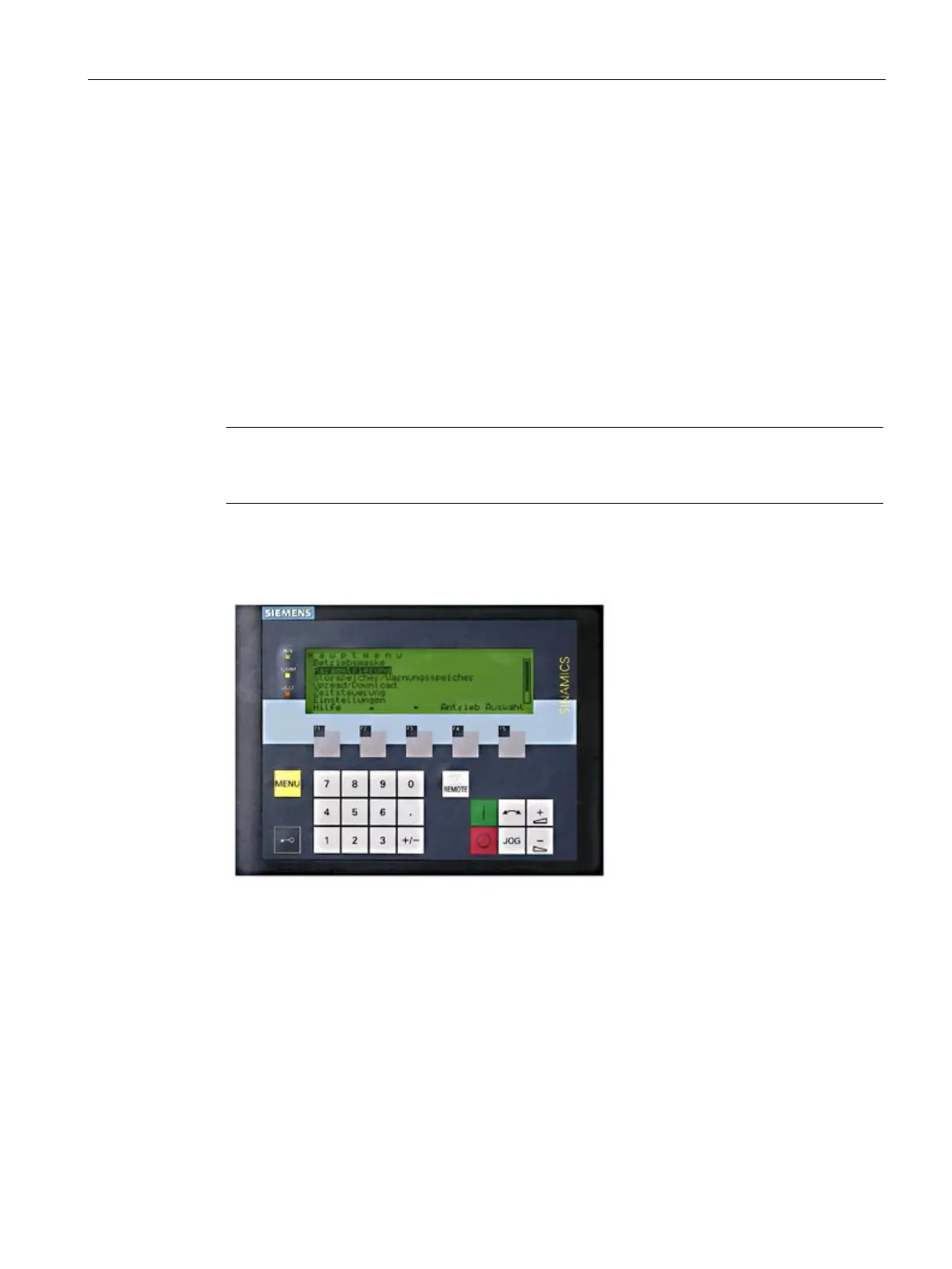

Figure 8-10 AOP30 advanced operator panel (option K08)
The user-friendly AOP30 advanced operator panel is an optional input/output device used for
commissioning, operation and diagnostic purposes.
The AOP30 communicates with the CU320-2 Control Unit via an RS 232 serial interface
using the PPI protocol.
