Options
8.34 L61/L62, L64/L65, braking units
Cabinet Modules NEMA
468 Manual, 04/2014, A5E03586450A

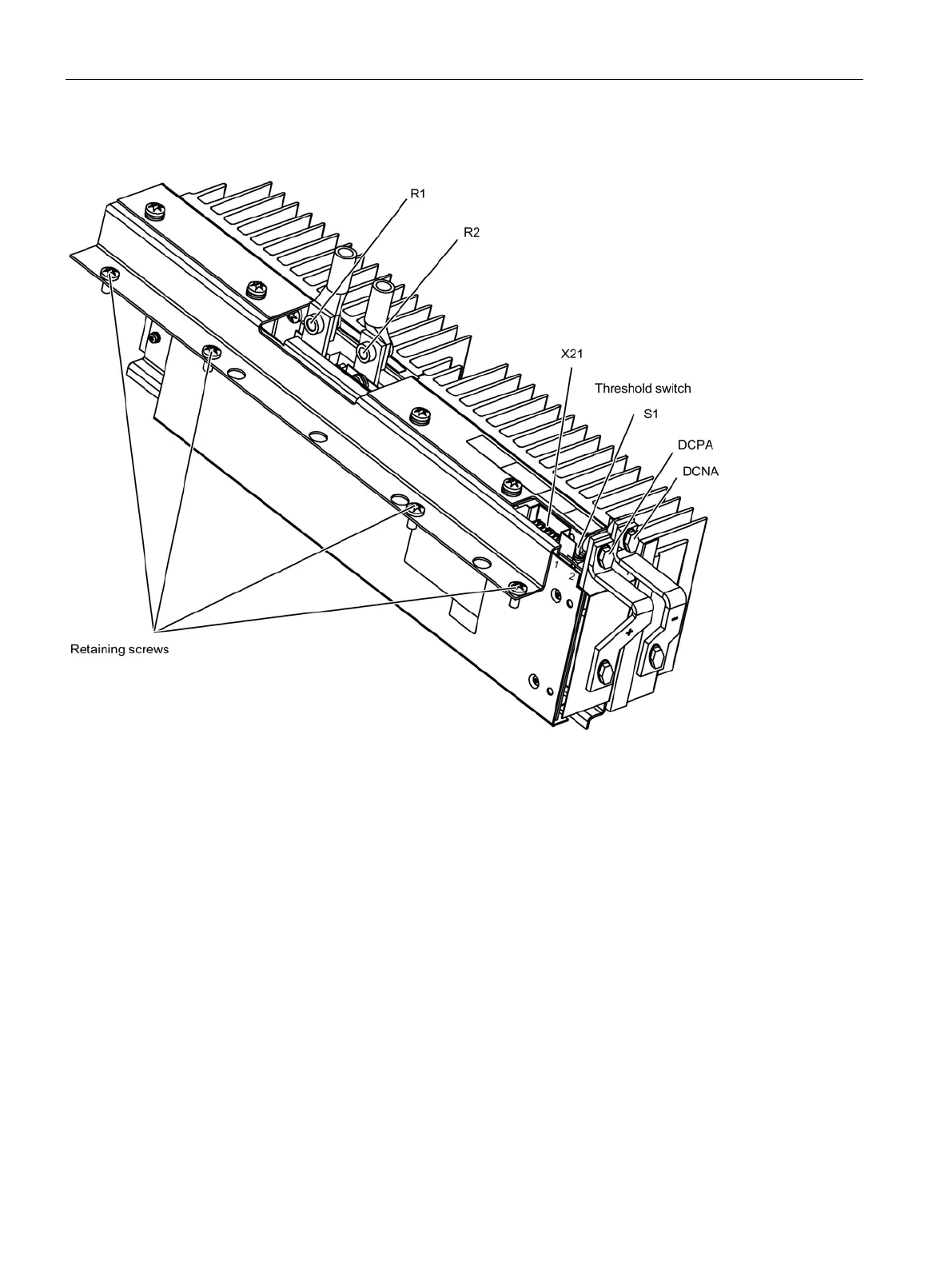

Braking module for frame sizes HX and JX
Figure 8-43 Braking module for Smart Line Module / Active Line Module / Motor Module, frame sizes HX and JX
8.34.5
Example connection of Braking Module
The connections between the Braking Module and the DC link and control terminal strip -X21
are made in the factory.
The braking resistor is connected to terminal -X5.
