5.6 Motor Modules in chassis format
Cabinet Modules NEMA
Manual, 04/2014, A5E03586450A
213
5.6
Motor Modules in chassis format
5.6.1
Description
Note
Additional information
Refer to the layout diagrams and circuit diagrams provided on the customer DVD supplied
with the device for the arrangement o
f components and interfaces, and for wiring.

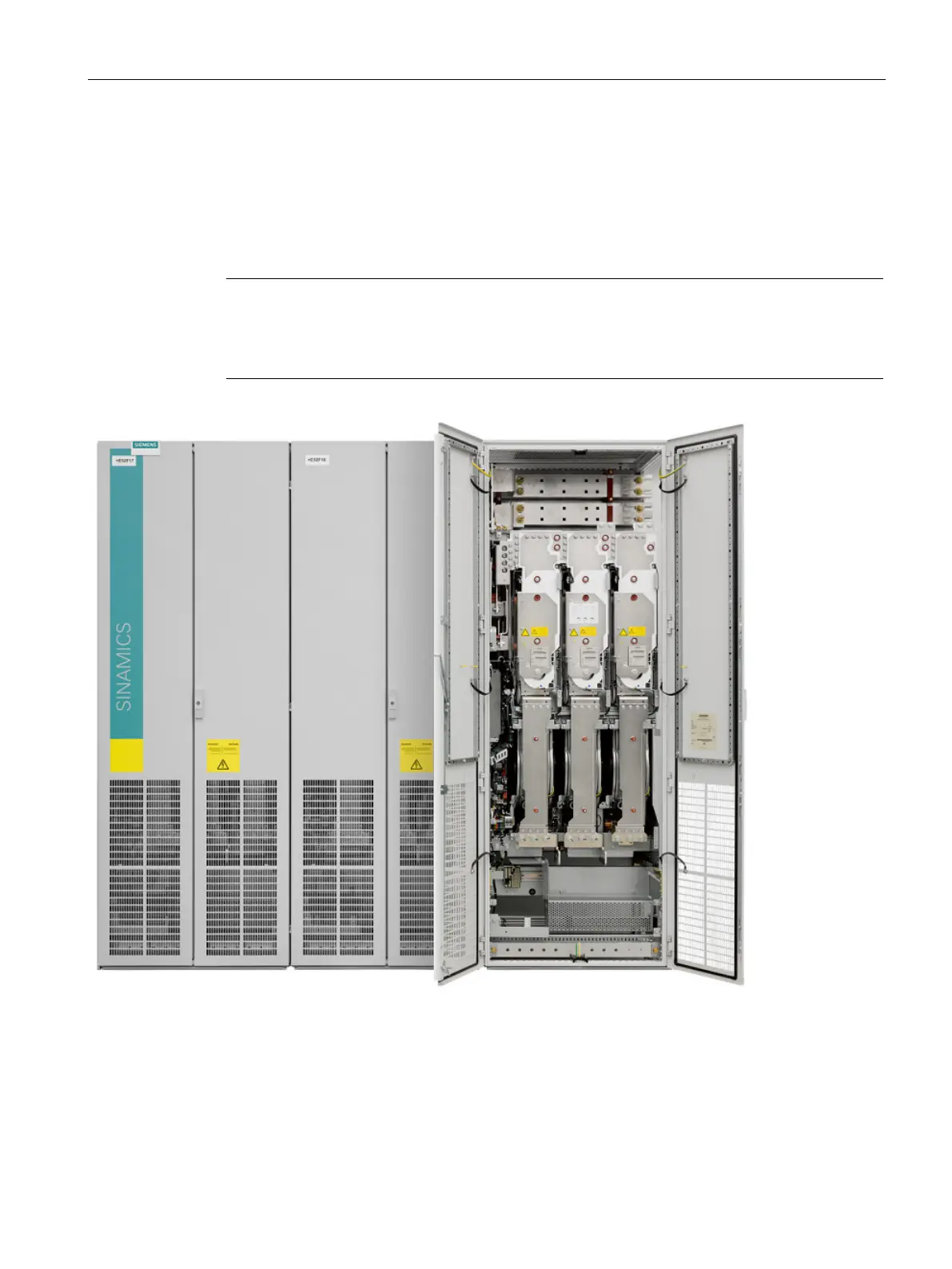

Figure 5-34 Motor Module in chassis format
