Maintenance and servicing
6.4 Replacing components
Cabinet Modules NEMA
Manual, 04/2014, A5E03586450A
299
6.4.10.4
Replacing the fan, size HX
Replacing the fan, left power block

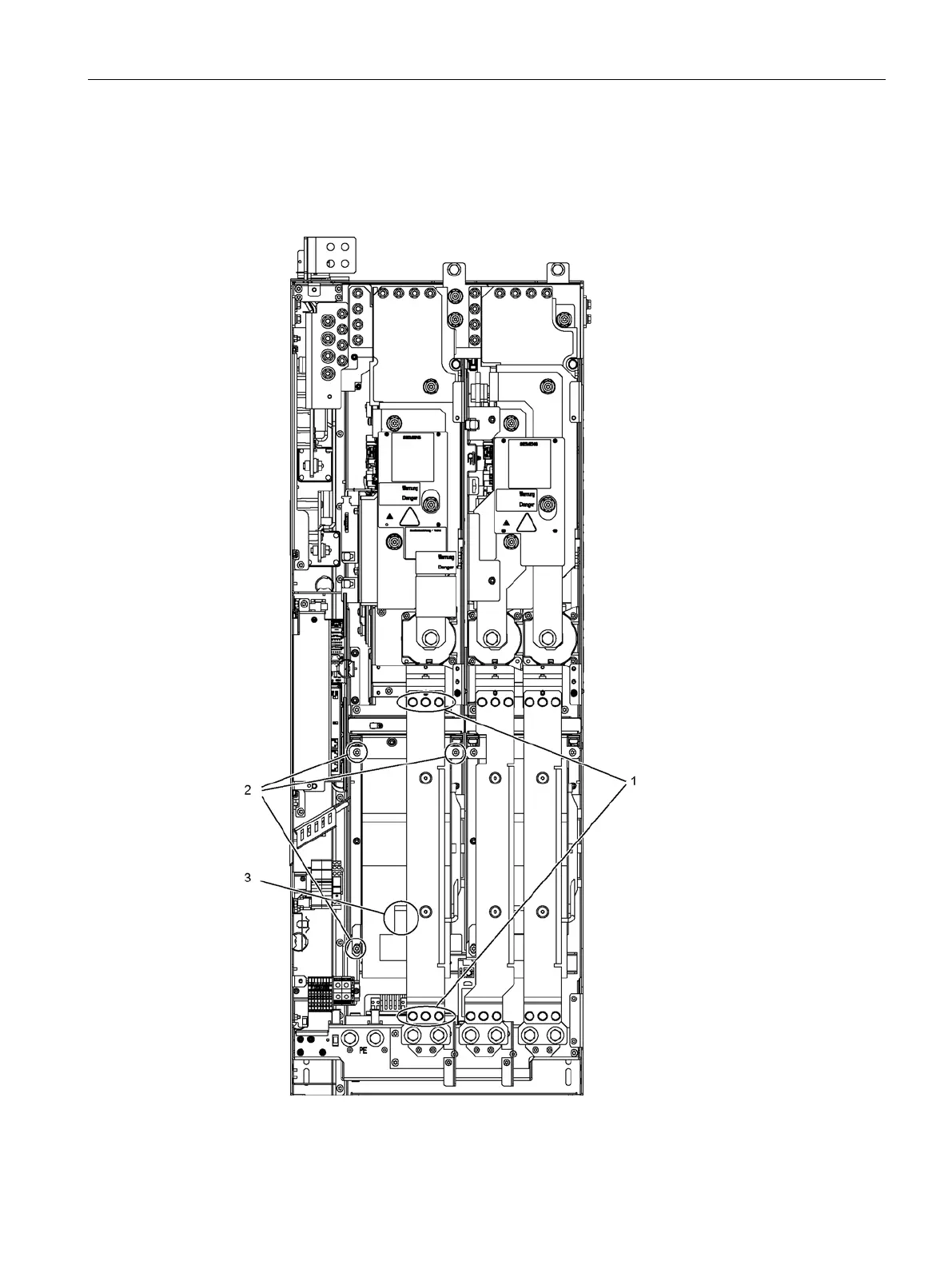

Figure 6-19 Replacing the fan, Active Line Module, Smart Line Module, and Motor Module, frame
size HX - left power block
