Siemens SINAMICS S120 - Page 139

Cabinet Modules
5.1 Line Connection Modules
Cabinet Modules NEMA
Manual, 04/2014, A5E03586450A
139

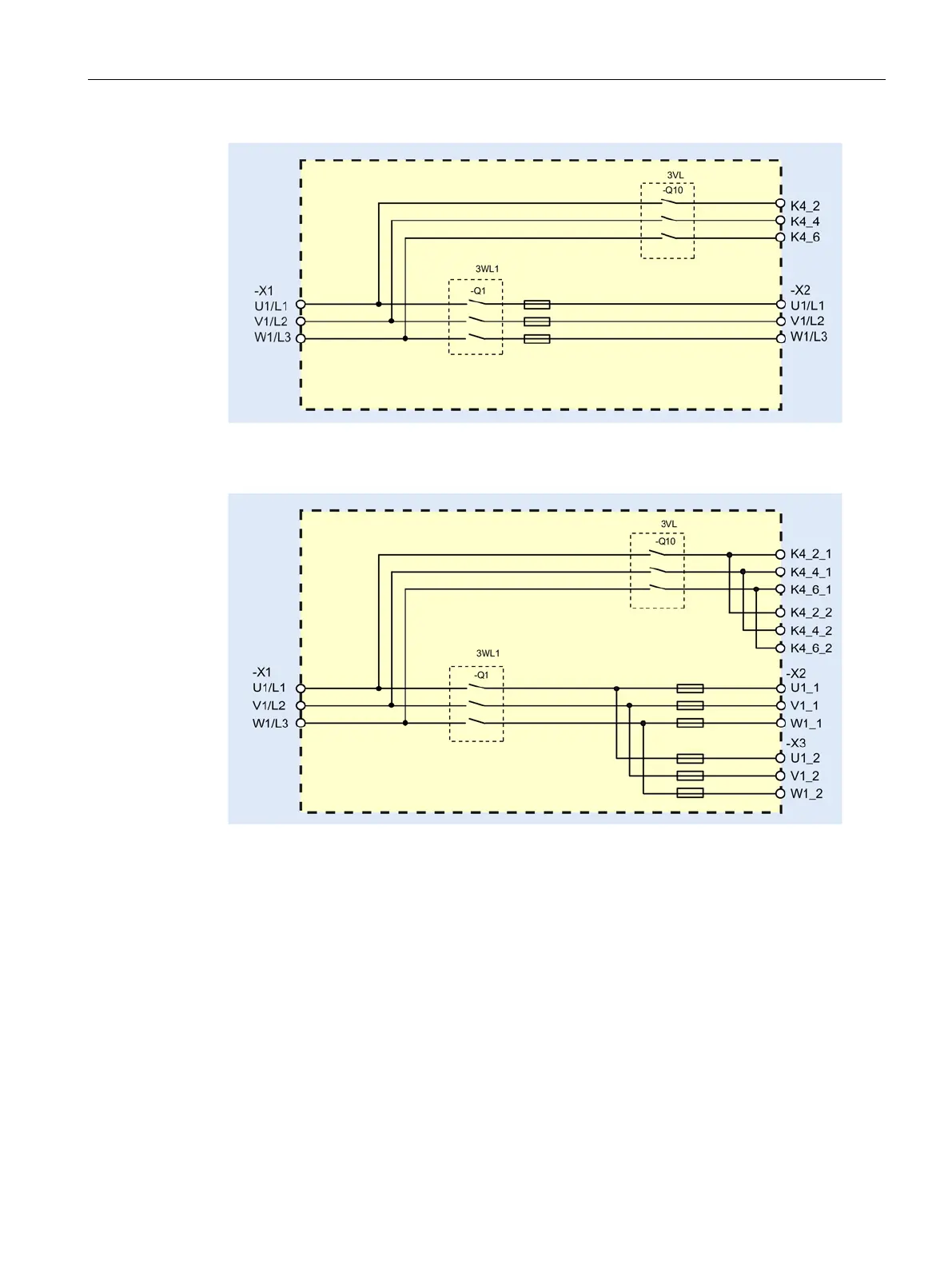

Figure 5-5 Connection example: Line Connection Module >800 A for connection to Active Line
Modules, option L42
Figure 5-6 Connection example: Line Connection Module ≥2000 A for connection to Active Line
Modules in parallel connection, option L42
