Cabinet Modules
5.2 Basic Line Modules
Cabinet Modules NEMA
154 Manual, 04/2014, A5E03586450A

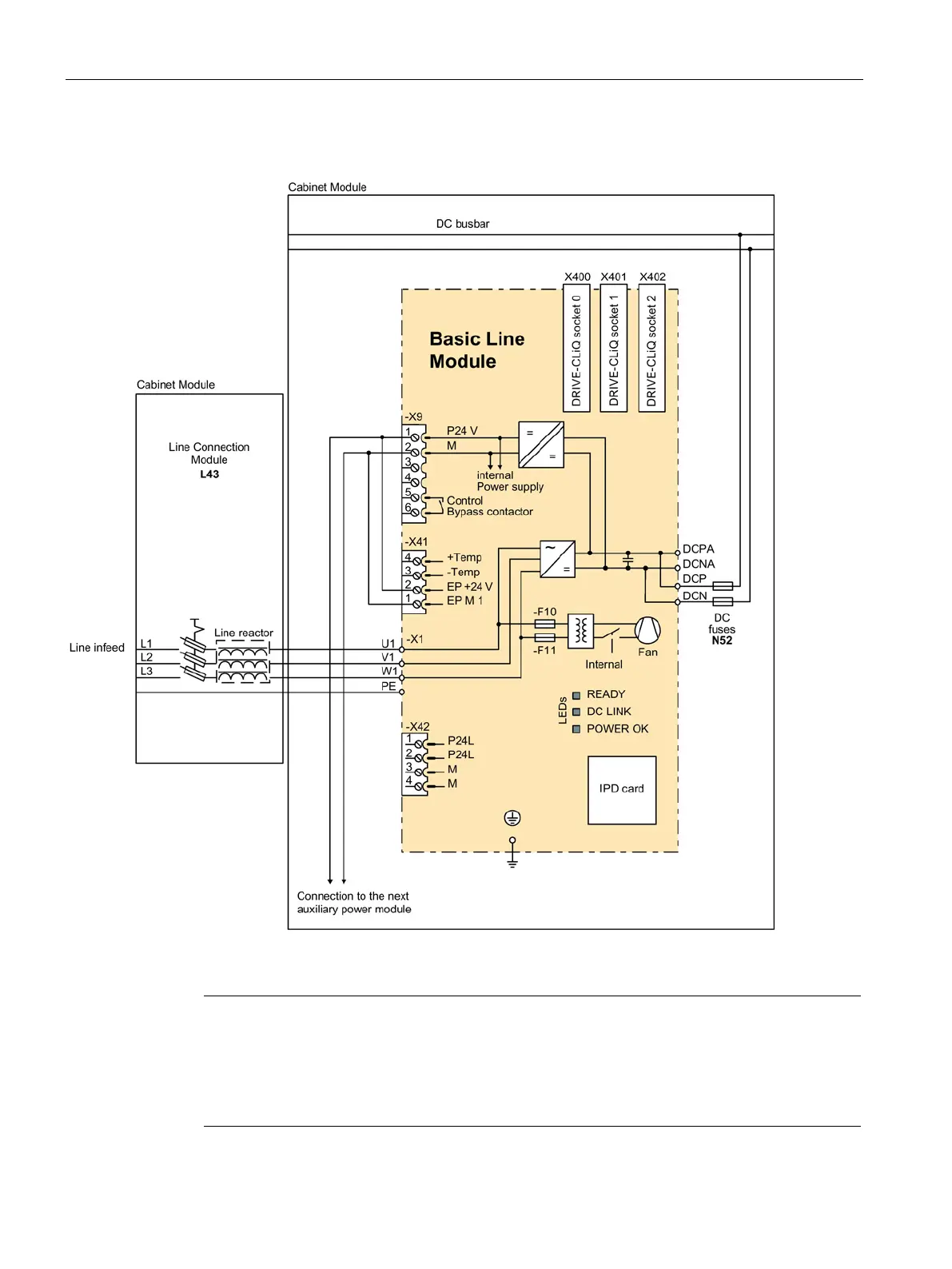

Figure 5-15 Connection example for Basic Line Modules (frame size FB and GB)
Note
X9 terminal assignment for the Basic Line Module (frame size GD)
For the Basic Line Modules, frame size GD, equipped with diode bridge
The bypass contactor is controlled at terminals -X9:3 and -X9:4
Pre-charging is controlled at terminals -X9:5 and -X9:6
