Cabinet Modules
5.5 Booksize format Motor Modules
Cabinet Modules NEMA
Manual, 04/2014, A5E03586450A
201
Motor Modules are also available in a booksize cabinet kit format for power ratings from
5 HP to 100 HP (4.8 kW to 71 kW) in voltage class 380 V to 480 V (DC link voltage 510 V to
720 V).

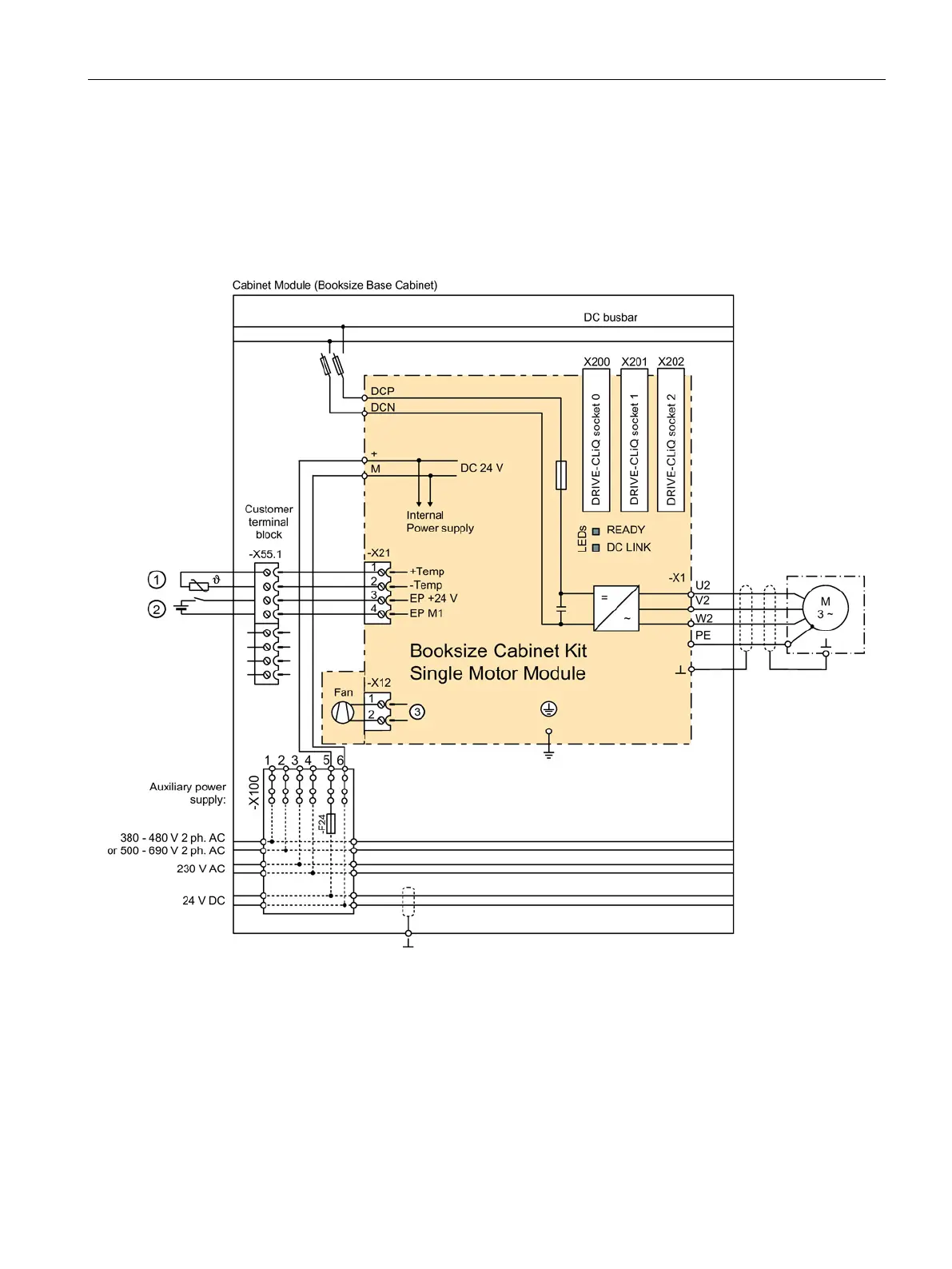

Figure 5-31 Connection example: Motor Module in booksize cabinet kit format
① Temperature sensor connection for motors without DRIVE-CLiQ interface
② Required for Safety Integrated
③ Fan module for rated output current of 132 A
