8.20 K90, Control Unit CU320-2 DP
Cabinet Modules NEMA
Manual, 04/2014, A5E03586450A
403
Pin assignment of customer terminal block –X55

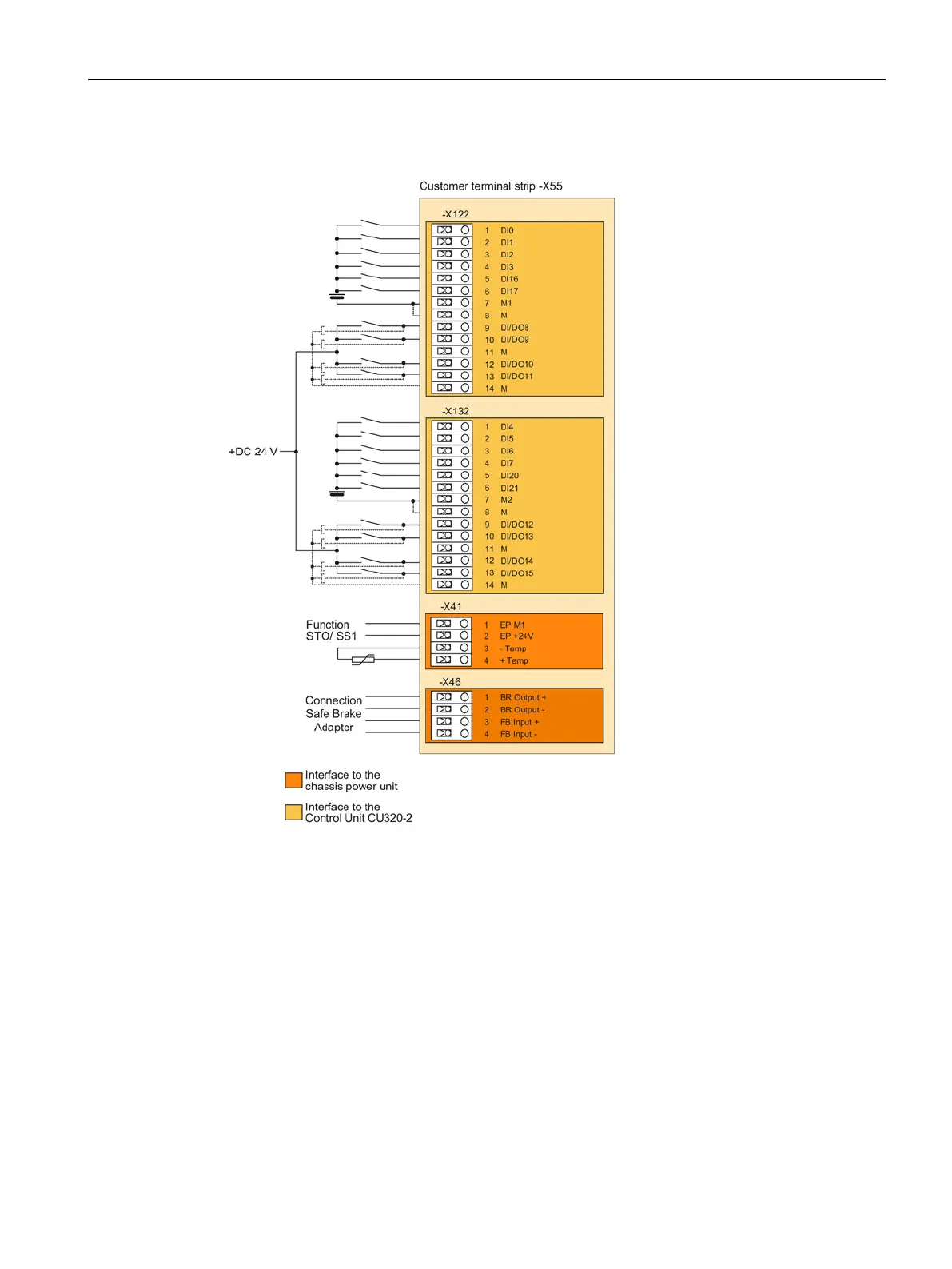

Figure 8-28 Pin assignment of customer terminal block -X55 (example: Motor Module Cabinet
Module (chassis format))
