8.22 K95, CU320-2 PN Control Unit
Cabinet Modules NEMA
Manual, 04/2014, A5E03586450A
425
Pin assignment of customer terminal block –X55

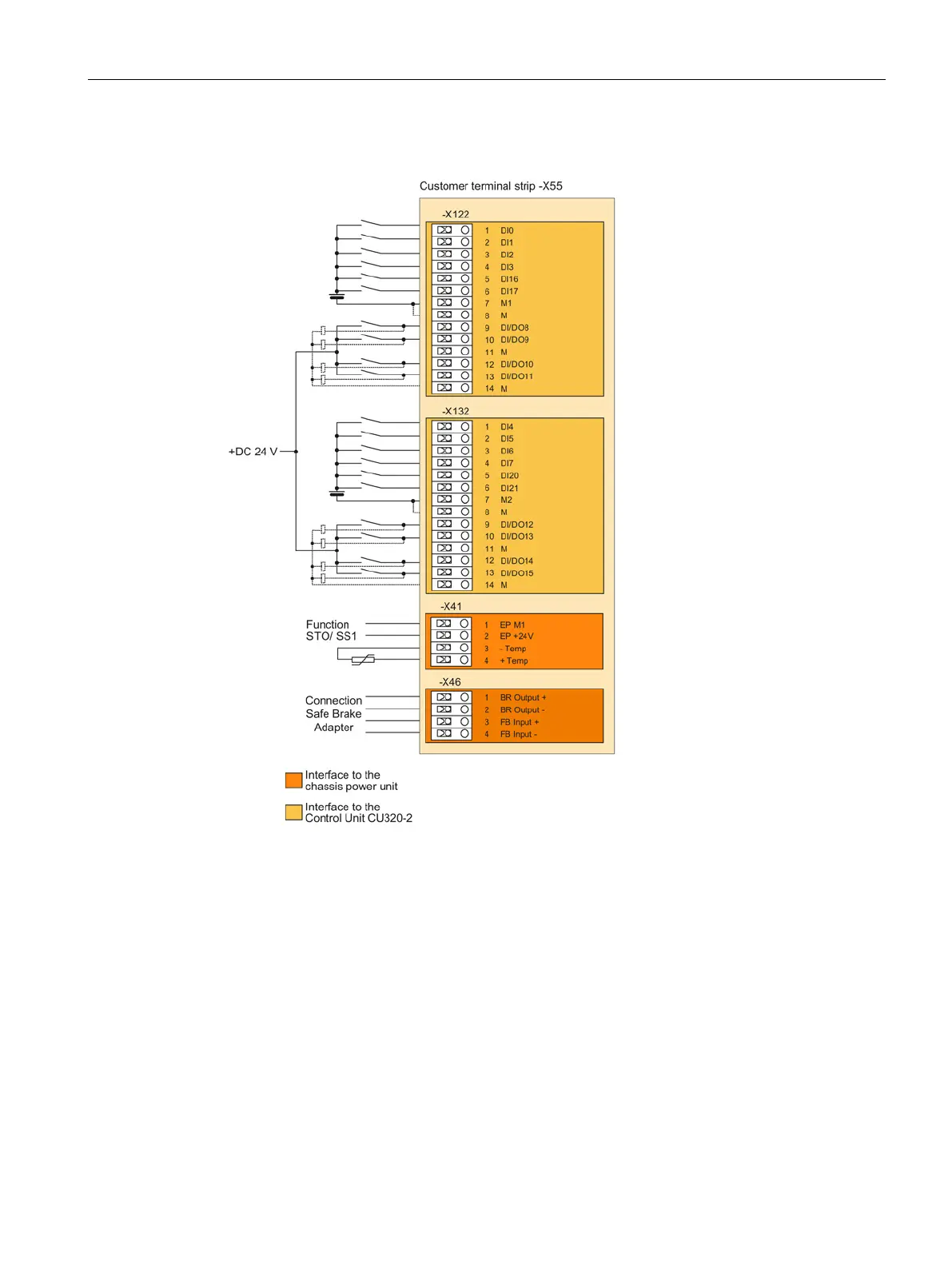

Figure 8-34 Pin assignment of customer terminal block -X55 (example: Motor Module Cabinet
Module (chassis format))
