Options
8.46 M80 to M87, DC busbar system
Cabinet Modules NEMA
494 Manual, 04/2014, A5E03586450A
Note
Current intensity of the DC busbar
The required current intensity of the DC busbar depends on the individual plant
configuration. For this reason, a fixed DC busbar thickness is not assigned to the individual
Cabinet Modules. The required thickness must be configured for each indivi
dual case and
specified as option M80 to M87 (mandatory option).
For transport units, integrated busbars are installed at the factory. Connection jumpers are
not required inside a transport unit.
For option M26 (side panel on the right), connection jumpers
are not required, nor are they

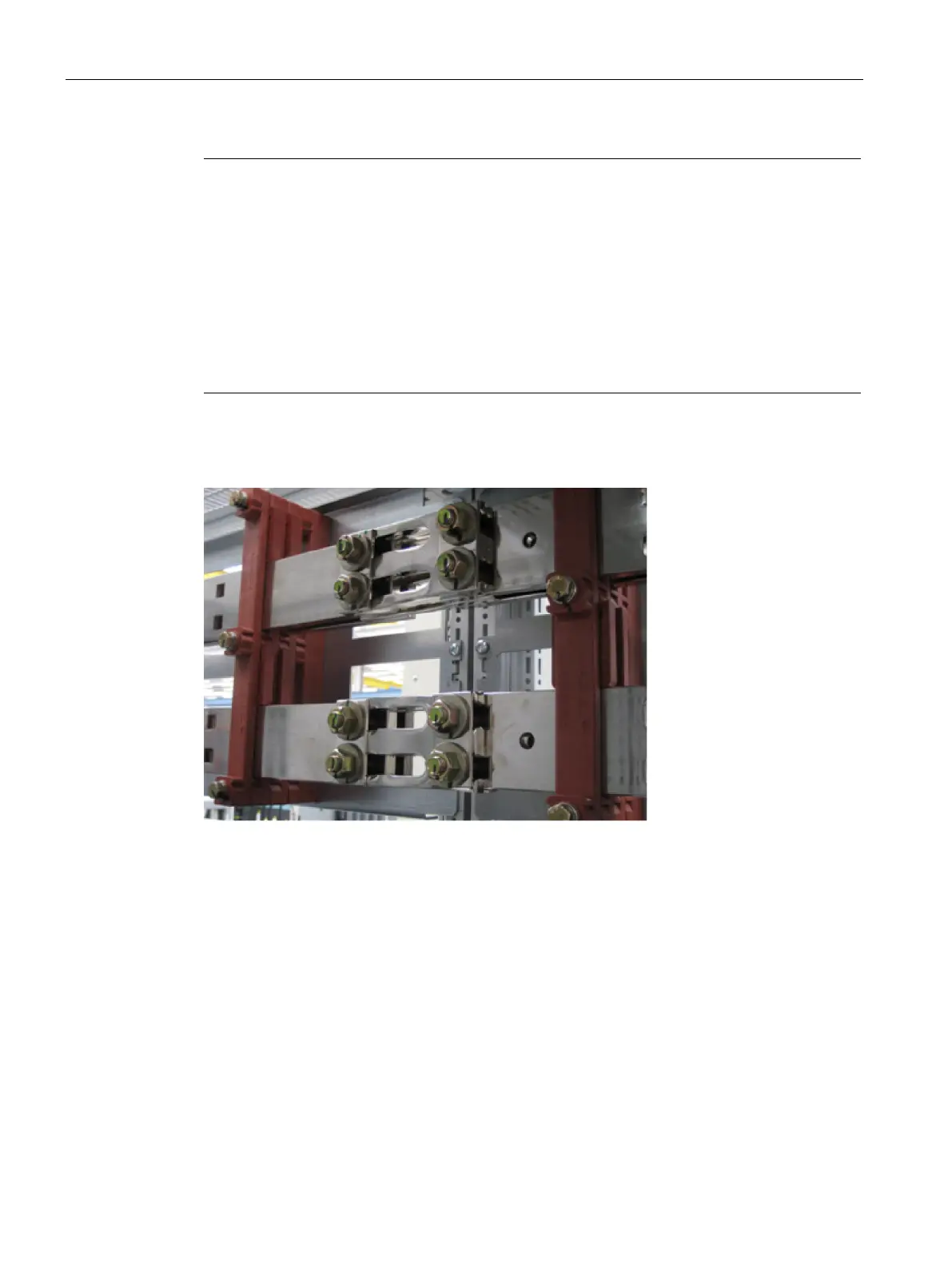

Figure 8-57 M80 - M87, DC busbar
