6.
Open the vertical softkey bar for available turning cycles.
7.
Press this softkey to open the window for CYCLE95 and enter the name of the contour
sub
routine in "NPP", for example, "RR".
8.
Press th
is softkey to open the program editor window again and enter the program blocks
for the external contour:
G1 X0 Z0
G3 X33.762 Z
-30.726 CR=20
G2 X40.704 Z
-56.29 CR=20
G2 X44 Z
-60 CR=5
G1 Z
-66
X45
Note:
Make sure you enter the blank diameter in the last li
ne of the program for the external con-
tour (for example, "X45" in the above program). Besides, the program for the external co
n-
tour has to be positioned after "M30". For detailed information, see the screenshots of the
complete program at the end of this example.
9.

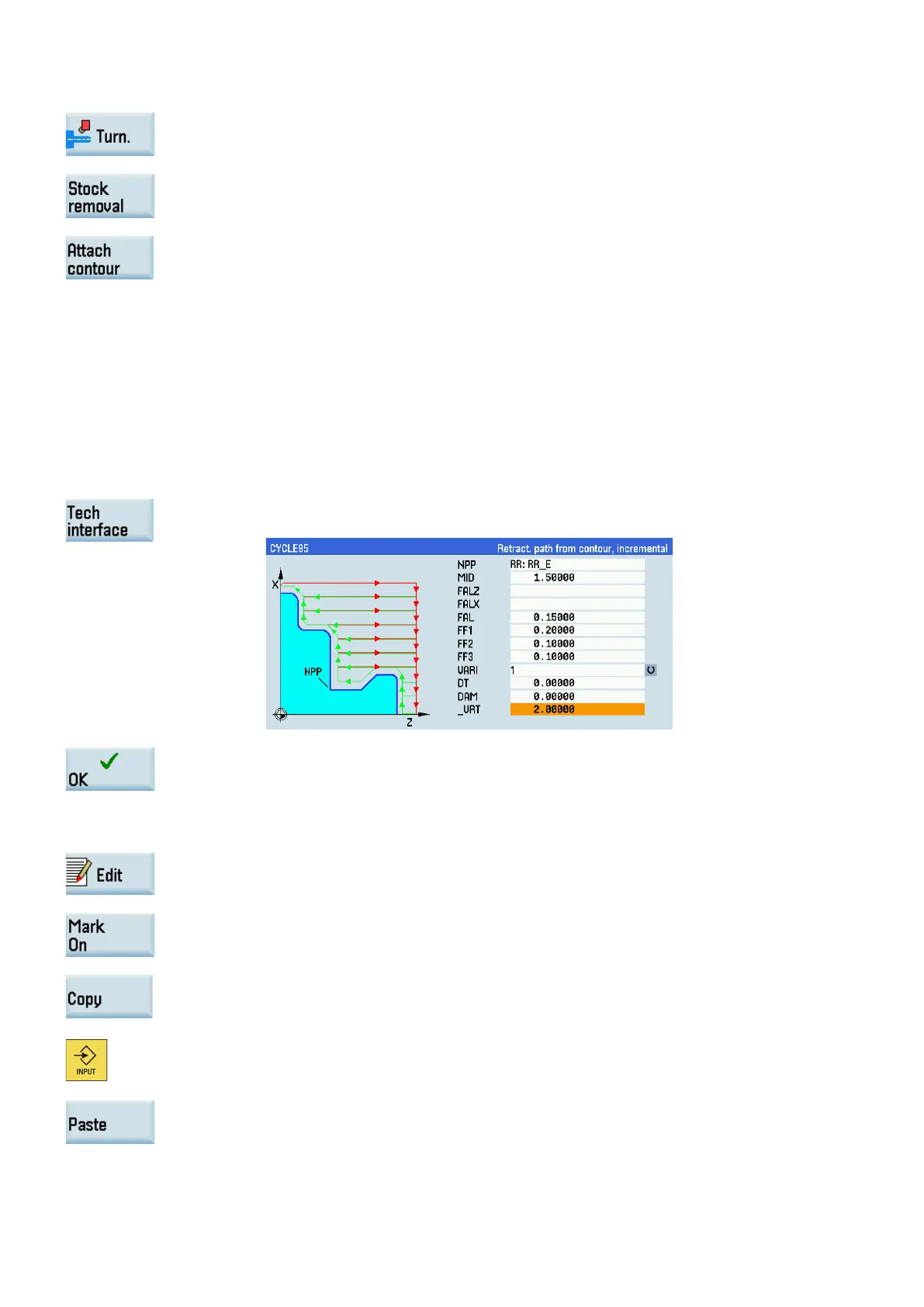

Press this softkey to return to the w
indow for CYCLE95 and enter the desired parameters
as follows:
10.
Press this softkey to confirm
your input and open the cycle programming window.
11.
Enter the following program block:
M3 S2000
12.
Press this softkey to return to the program editor window.
13.
Move the cursor to "C" in the line for CYCLE95 with the cursor keys and press this softkey
to insert a marker.
14.
Use the cursor keys to select the entire program block for CYCLE95. Press this softkey to
copy the selection to the bu
ffer memory.
15.
Place the cursor on the end
-of-
block character after "M3 S2000" with cursor keys and press
this key on the MCP to enter a new line.
16.
Paste the content of the buffer memory into the new line.
