SIREMOBIL Iso-C 3D SPR2-230.814.01 Page 8 of 14 Siemens AG
Rev. 05 08.04 CS PS 24 Medical Solutions
2 - 8 Actions up to serial number 1408
• Route the cables as shown in (Fig. 19, Fig. 20 and Fig. 21).
• Do not stabilize the newly routed cables with the existing cables (e.g. with cable ties).

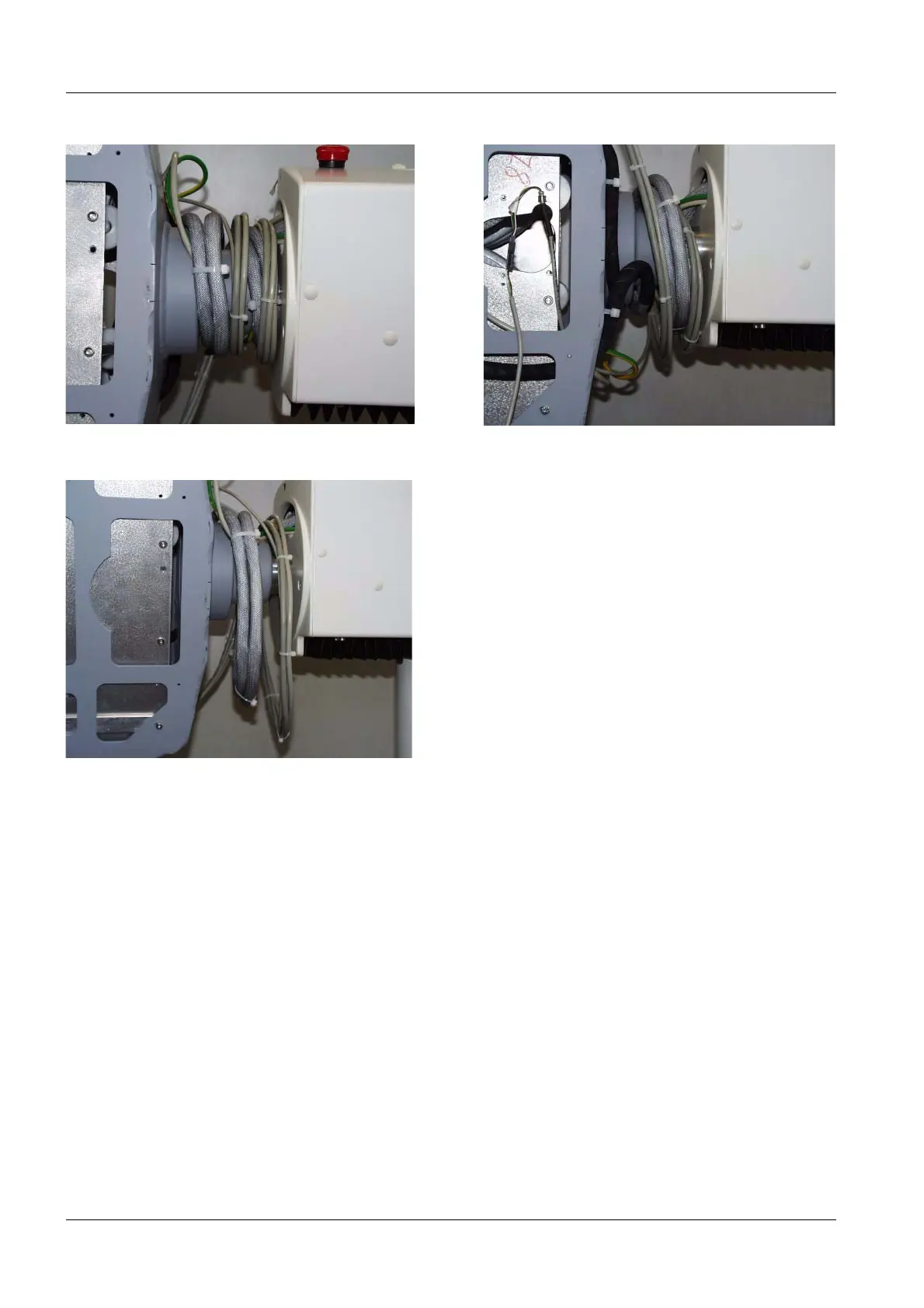

Fig. 19 Cable module, cable fully coiled up Fig. 20 Cable module, cable half uncoiled
Fig. 21 Cable module, cable fully uncoiled
