• Unscrew both of the monitor bases from the monitor trolley and remove them completely
(Fig. 20).
• Remove the video cable of the right monitor. This will be replaced with a new video
cable.
• Take both of the power cables and the video cable for the left monitor out of the cable
opening and place them in the logbook compartment, so that the cable opening is free.
• Around the center cable opening 4 pre-punched holes are visible ( Ê/ Fig. 20).
4 metal bolts are set in these holes, thus closing them.
Knock out the 4 metal bolts with a punch (or another round object) by striking downward.
Remove the 4 bolts from the monitor trolley.
• Raise the center dummy cover, thus closing one of the cable openings on the side (Fig.
21).
• Close the second cable opening on the side and the 8 fastening holes around the side
cable openings with the dummy covers provided.

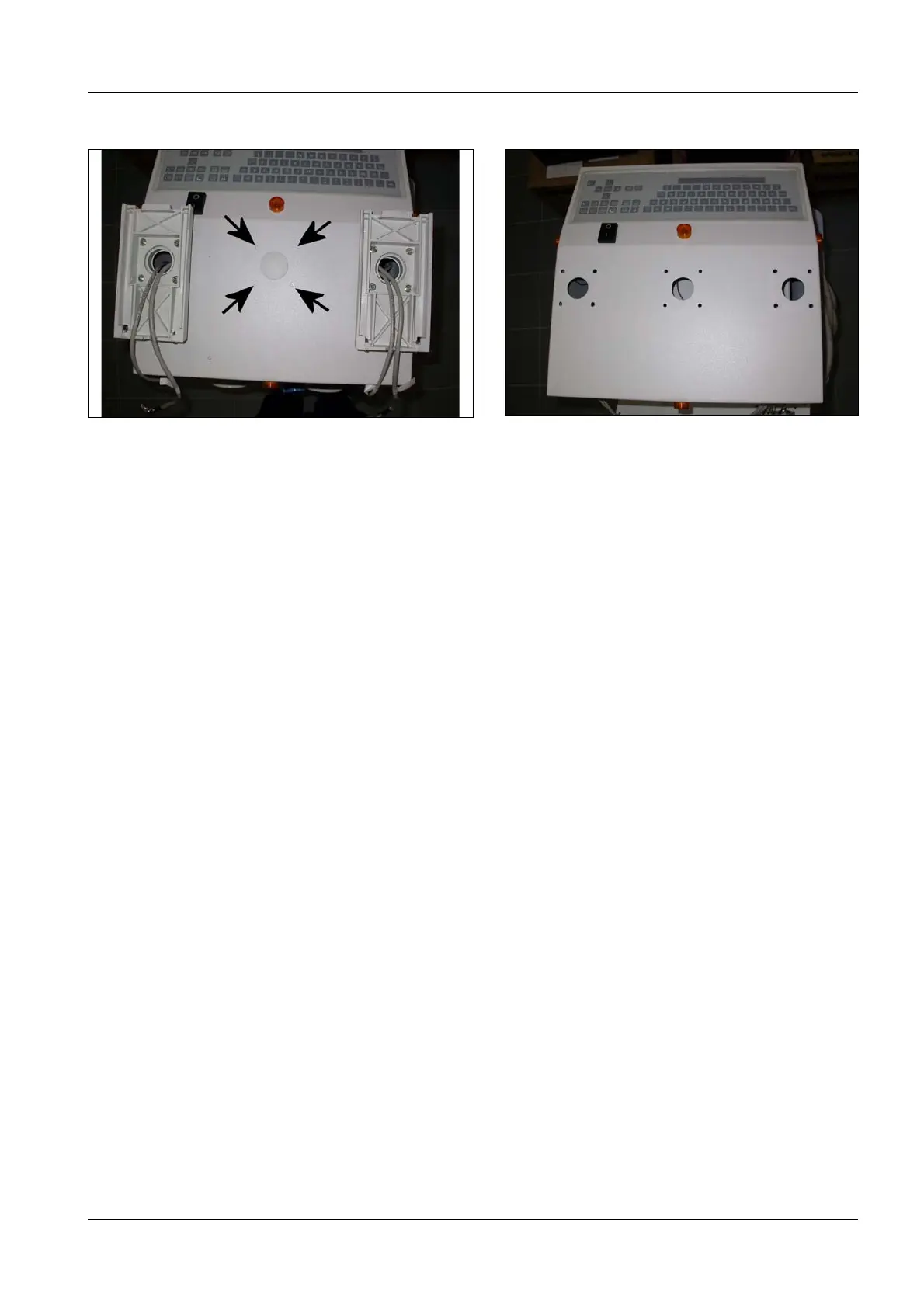

Fig. 20 Monitor attachment Fig. 21 Monitor trolley cable openings
