Functions
7.2 Span Data
FUE1010 IP65 NEMA 4X
Operating Instructions, 12/2014, A5E03086491-AC
103
Maximum span values represent:
Minimum span values represent:
100% of span
Current output of 20mA
Voltage output of 10 VDC
Pulse output of 5000 Hz
0% of span
Current output of 4mA
Voltage output of 0 VDC
Pulse output of 0 Hz

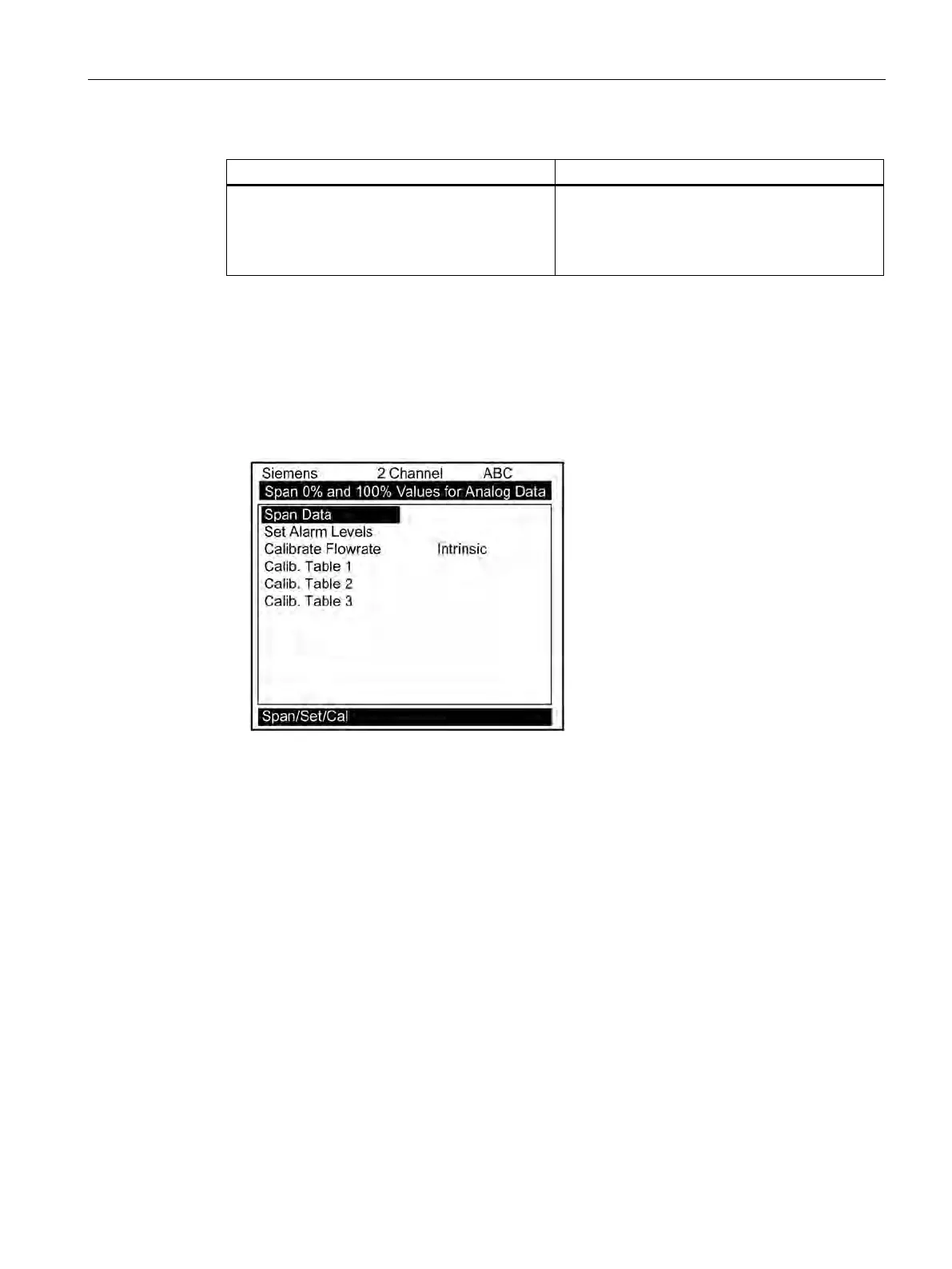

To change the default Span Data settings:
1. At [Meter Type], press <Right Arrow> to [Dual Path Flow] and press <ENTER>.
2. At [Chan/Path] press <Right Arrow> to <Clamp-on> and press <ENTER>.
3. At [Clamp-on] menu scroll down to [Span/Set/Cal] and press <Right Arrow>.
4. Highlight [Span Data] and press the <Right Arrow>.
