Siemens SITRANS FUE1010 IP65 NEMA 4X User Manual

Functions
7.5 Setting Relays
FUE1010 IP65 NEMA 4X
114 Operating Instructions, 12/2014, A5E03086491-AC

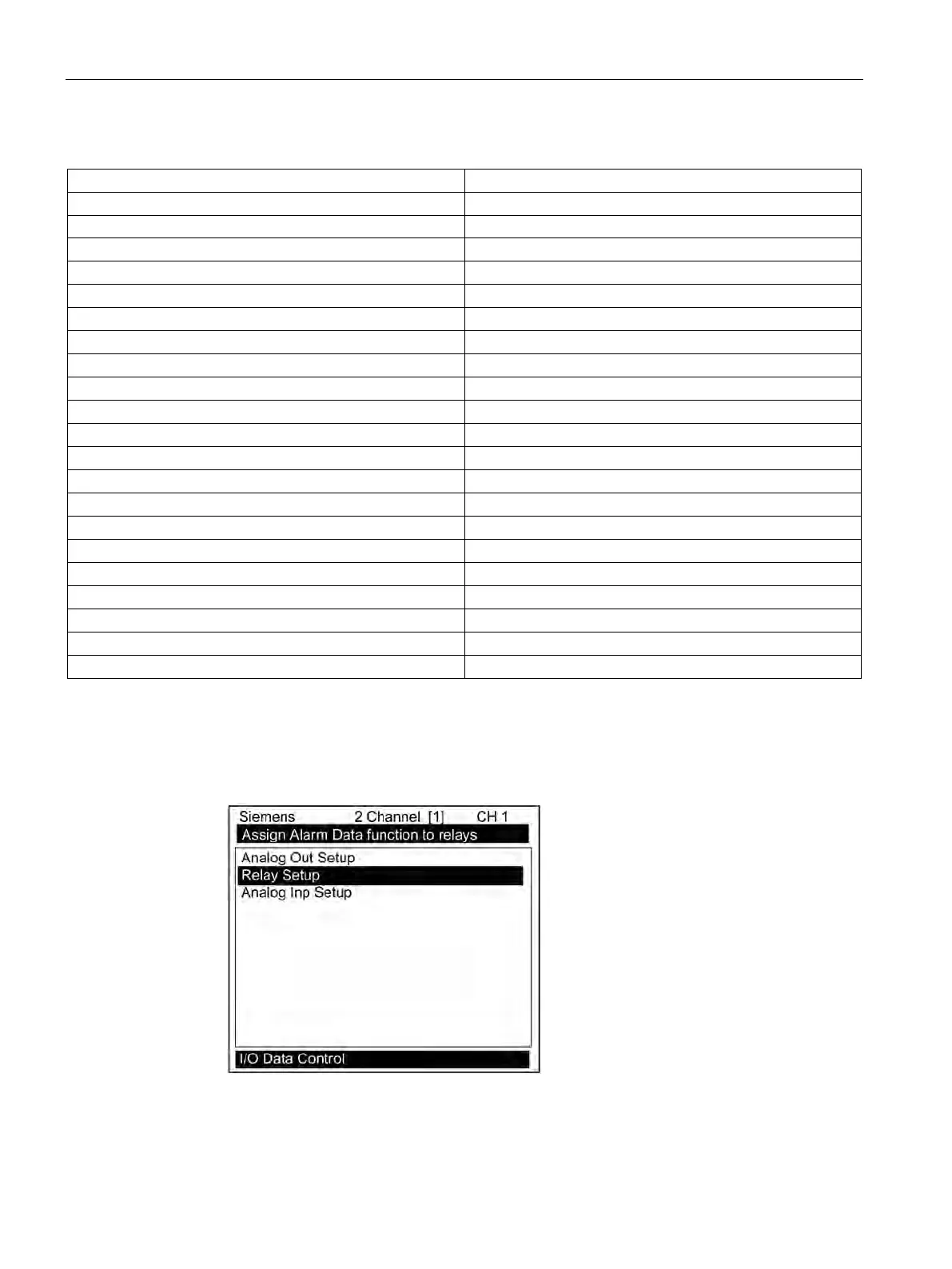

Table 7- 4 Relay Option List
Not Used
Not Active
Power Off
Power Off alarm occurs when power fails.
High Flow
Flow rate exceeds high flow setpoint.
Low Low
Flow rate exceeds or falls below flow setpoint.
Flow Alarm Flow rate exceeds or falls below flow set points.
Fault Alarm
System loses receive signal (all paths in fault).
Soft Fault
Fault condition - memory mode active.
Spacing
Sensor spacing needs adjusting.
Empty
Empty pipe alarm.
Aeration
Aeration percentage exceeds alarm set point.
Reverse Flow
Flow is in negative direction.
BatchTot
Batch/Sample total advances.
Pos Total
Positive total volume advances 1 digit.
Neg Total
Negative total volume advances 1 digit.
High Energy
High Energy value relay setpoint.
Low Energy
Low Energy value relay setpoint.
Energy Postot
Positive energy totalizer advances by 1 digit.
Energy Negtot
Negative energy totalizer advances by 1 digit.
Td
Temperature diference relay setpoint.
Ts
Supply temperature relay setpoint.
High CE
High Chiller Effeciency value relay setpoint.
Low CE
Low Chiller Effeciency value relay setpoint.
Assigning functions to Relay 1:
1. From the [Dual Path Flow] menu scroll down and highlight [I/O Data Control].
2. Press <Right Arrow> and scroll down to [Relay Setup].
3. To access the [Relay Setup] option list press <Right Arrow>.
