7.12 Reflexor
FUE1010 IP65 NEMA 4X
Operating Instructions, 12/2014, A5E03086491-AC
131
Two mounting configurations are available in the Reflexor Mode:
● Adjacent mounting locates the two sensors alongside each other using a single mounting
chain or strap.
● In-Line mounting locates the two sensors axially along the pipe using two mounting
chains or straps.
Connect to DN on flow meter
Connect to UP on flow meter

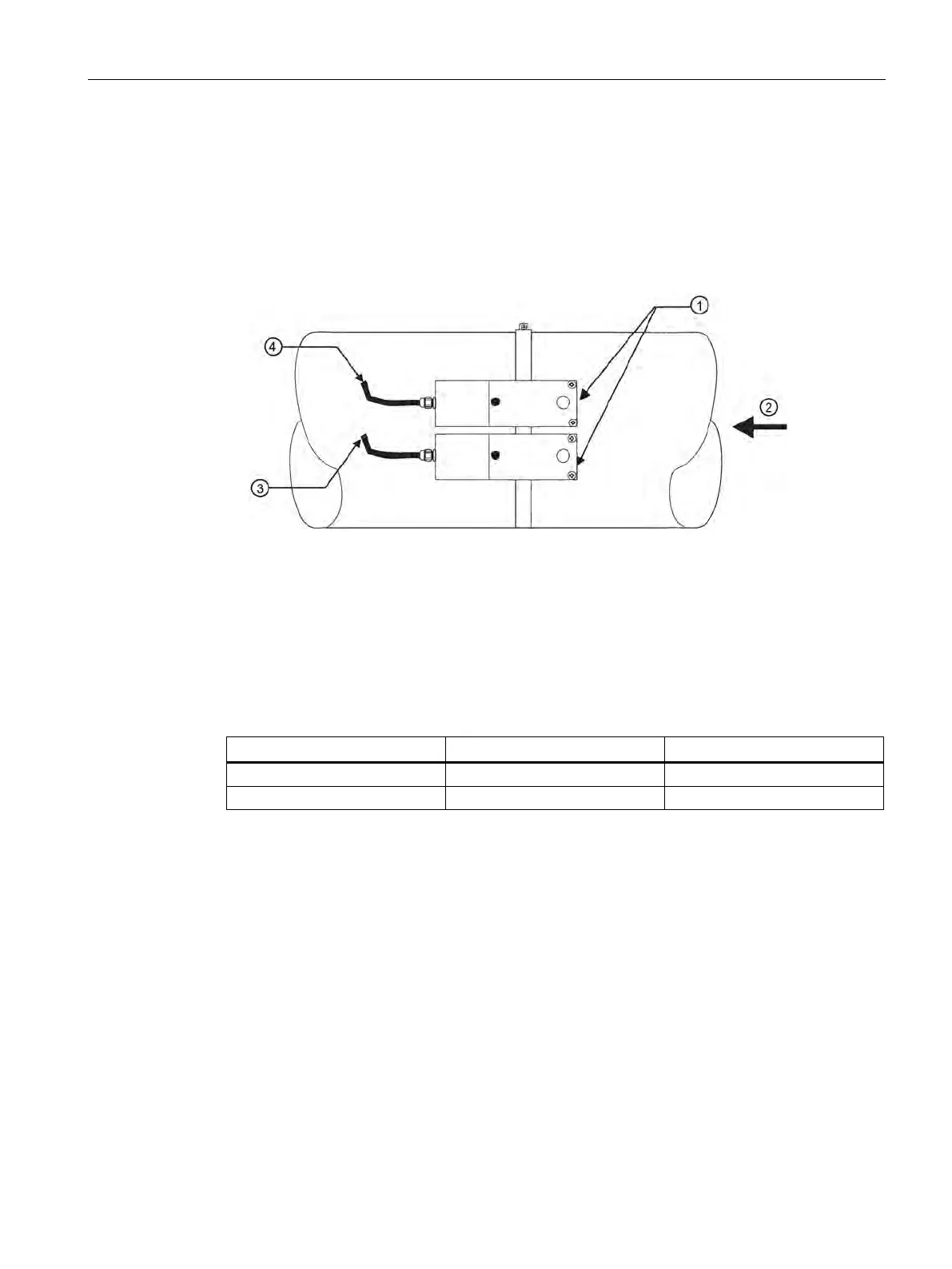

Figure 7-2 Adjacent Sensor Mounting
On inline mounted metal pipes the Receive Sensor is always located downstream of the
Transmit Sensor. On plastic pipes the Transmit Sensor is always located downstream of the
Receive Sensor.
Table 7- 10 Inline Metal and Plastic Pipe Cable Connections
In both cases, the cable entry will be on downstream side. Adjacent mounting will provide the
maximum sensitivity to flow. Refer to the appropriate sensor installation drawing for the
191N1S (Installation Drawing 191N1S-7).
