Connecting
5.5 Sensor Installation
FUE1010 IP65 NEMA 4X
Operating Instructions, 12/2014, A5E03086491-AC
59
paint, etc. Use abrasive material provided to provide a clean contact surface for the
sensors.
Note
Please note that the instructions show vertical mounting for clarity purposes only. Do not
instal
l sensors on the top of a pipe.

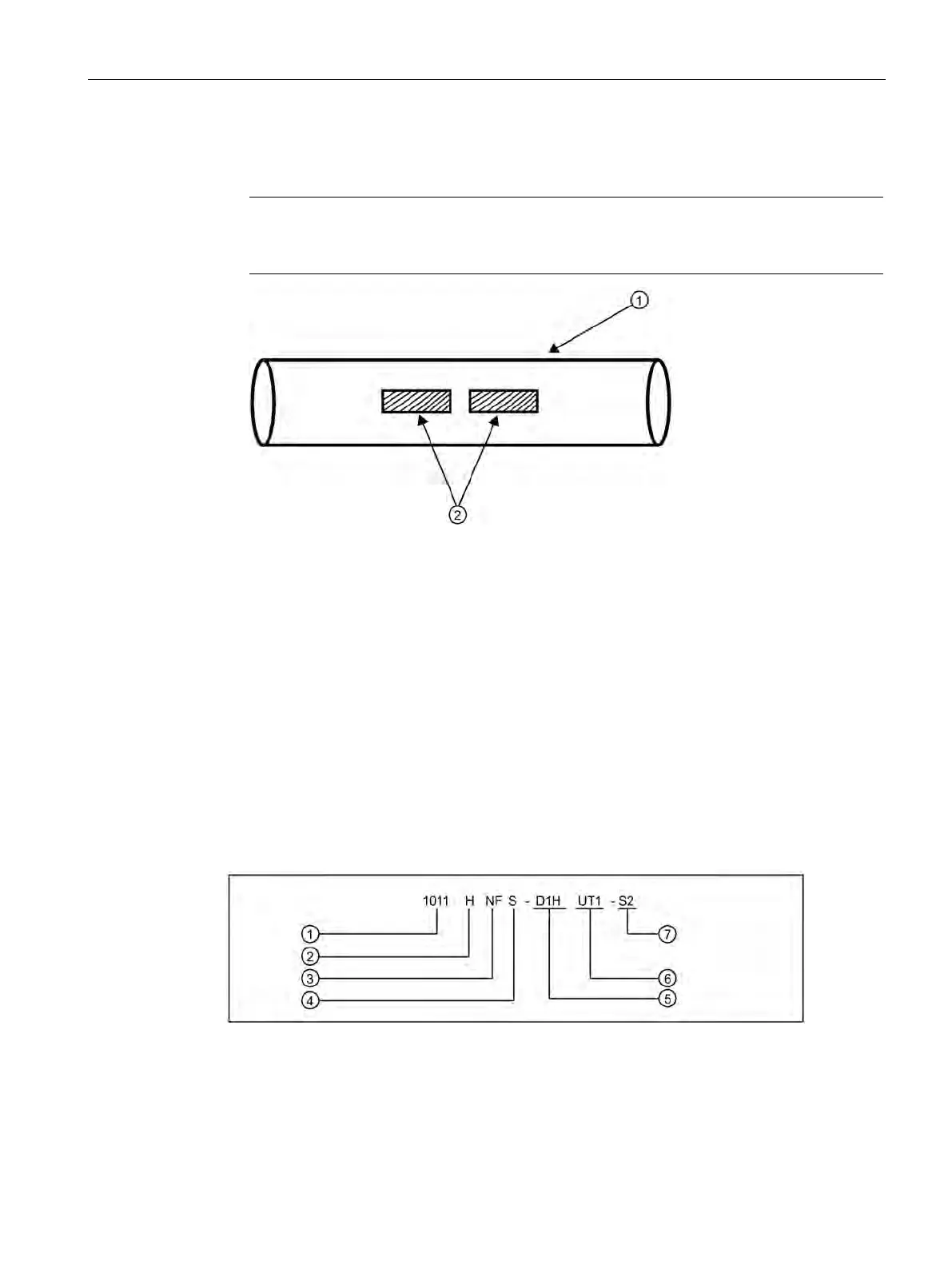

Figure 5-10 Pipe Surface Preparation
4. Clean an area 13 mm (1/2-inch) on either side of the sensors.
5. Clean an additional 13 mm (1/2-inch) along the length of the sensors.
Sensor Identification and Selection
Sensor identification
The sensor part number located on the front face provides a detailed identification. For
example, the Part Number: 1011HNS-D1T1-S2 means:
