5.3 Navigating the Menu
FUE1010 IP65 NEMA 4X
48 Operating Instructions, 12/2014, A5E03086491-AC

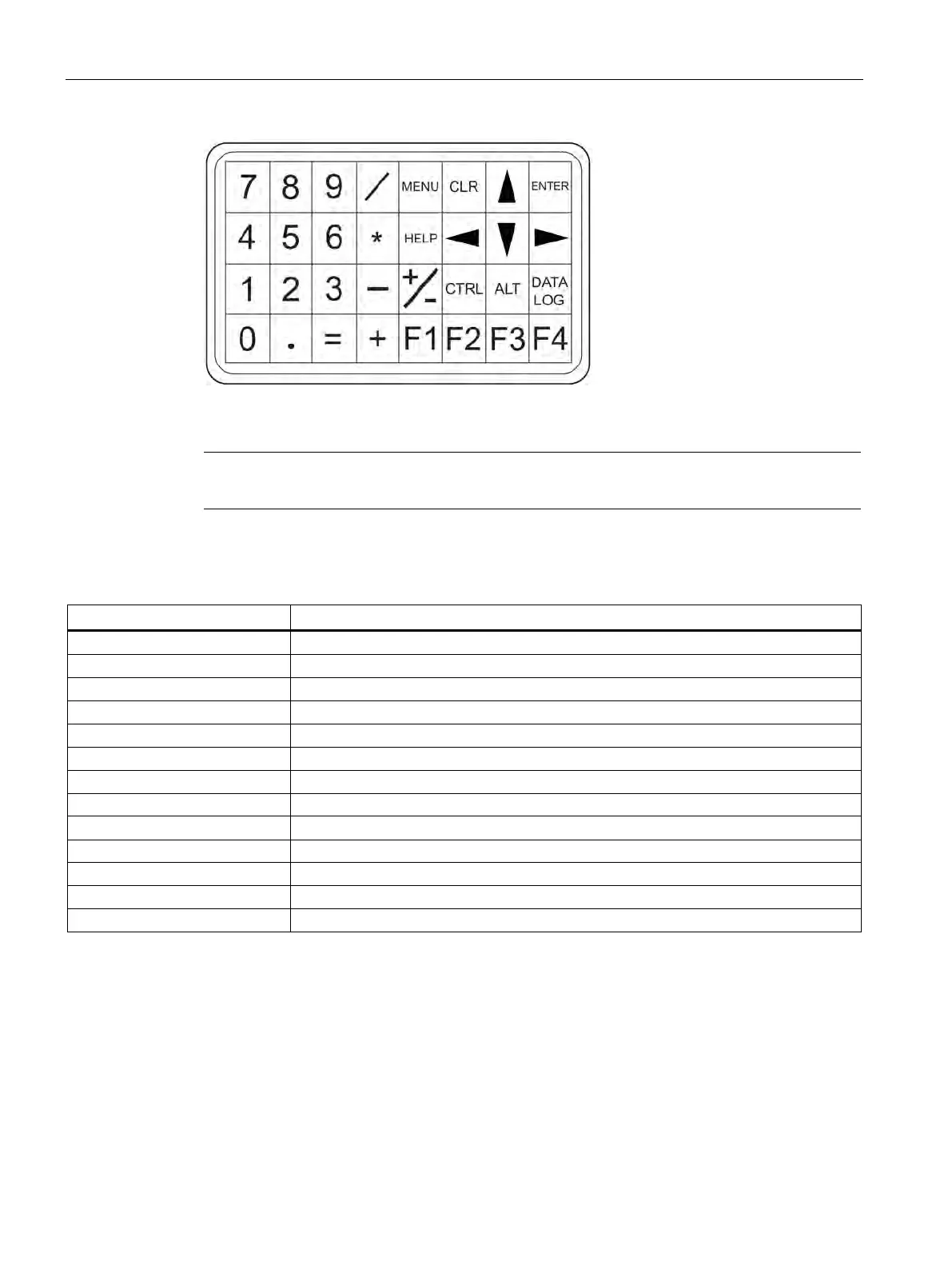

Figure 5-5 Keypad
Note
Use <Left Arrow> key to return to previous menus.
Table 5- 2 Keypad Function Chart
Keys
Description
MENU
Press to activate the Installation Menu.
ENTER
Store numeric data, select from option lists, etc.
Left / Right Arrows
Menu navigation keys move cursor.
Up / Down Arrows
Same as <Left> and <Right> arrows. Scrolls option lists and graphic display screen.
CLR
Erases data or selects list options.
Numbers 0 - 9
Use to type numeric data.
Decimal Point
Use for decimal points in numeric data.
Math Operators
4-function math operations in numeric entry cells.
"F" Keys 1, 2, and 3 Used to start/stop/reset Totalizer.
F4
Caution: used during power up for system reset.
CTRL and ALT
Used as shift keys for alternative key functions.
DATALOG
Triggers immediate Datalogger report.
Plus and Minus [+ / -]
Changes the sign of numeric data.
