Siemens SITRANS FUE1010 IP65 NEMA 4X User Manual

Connecting
5.7 Sensor Wiring
FUE1010 IP65 NEMA 4X
86 Operating Instructions, 12/2014, A5E03086491-AC
5.7
Sensor Wiring
Connecting Sensors to the Transmitter
1. Open the transmitter top cover. Using a flat blade screwdriver, remove the Cable Strain
Relief bracket (see figure below).
2. Observing the upstream and downstream orientation, attach the UP (upstream) and DN
(downstream) cables to the sensors and make snug. Attach the other ends to the UP and
DN terminals of the flow meter (see figure below).
3. Replace the Cable Strain Relief bracket. Close top cover.
4. Proceed to Commissioning (Page 87).
①
Transmitter Input Module
⑤
To CH-2 UP
②
Sensor Cables Connected to Transmitter
⑥
To CH-1 DN
③
Cable Strain Relief Bracket
⑦
To CH-1 UP
④
To CH-2 DN
⑧
Channel 2
⑨
Channel 1

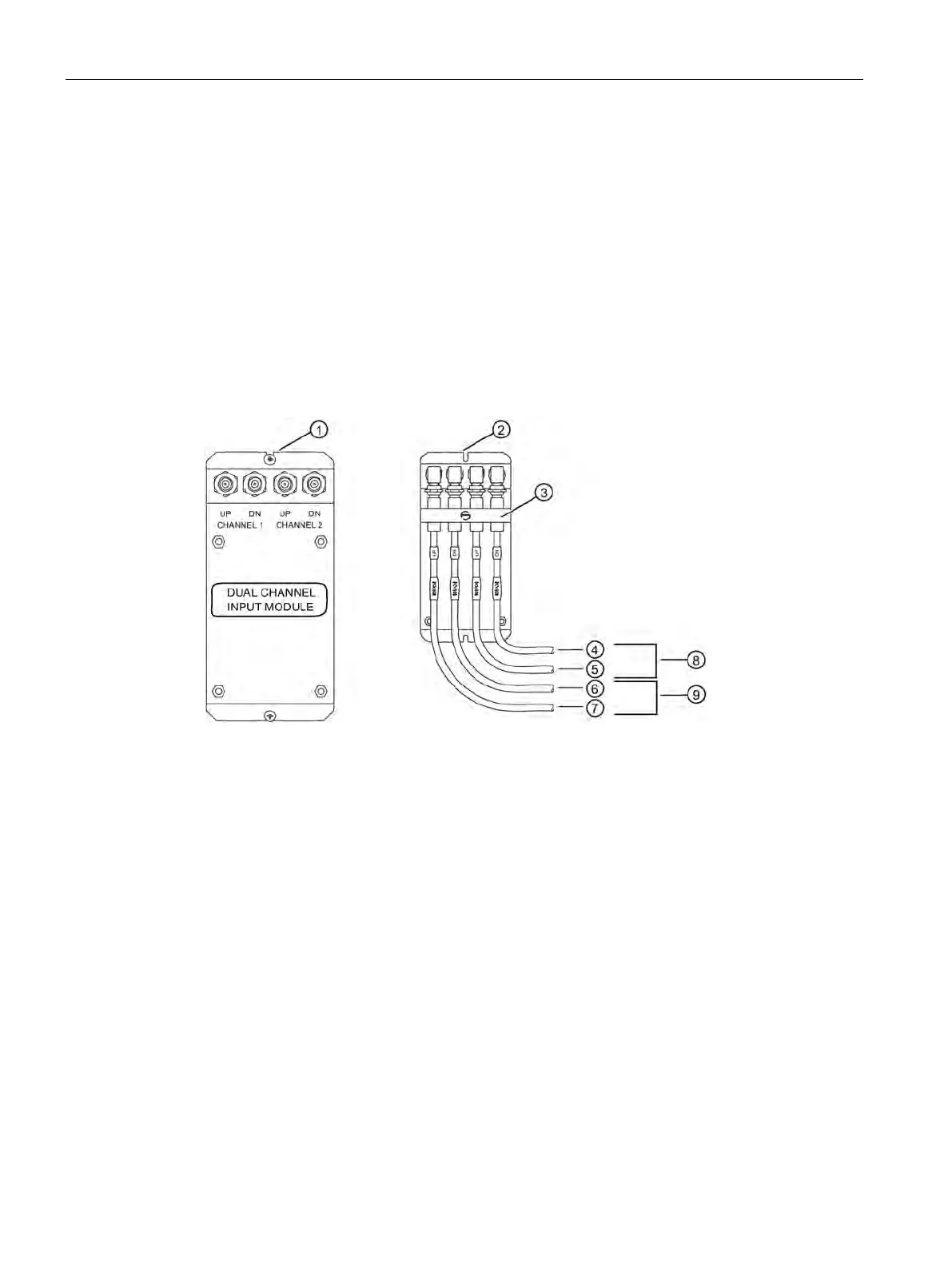

Figure 5-28 Sensor Cable Connections
