Connecting
5.5 Sensor Installation
FUE1010 IP65 NEMA 4X
70 Operating Instructions, 12/2014, A5E03086491-AC
1012T Mounting Tracks
Using 1012T Sensor Mounting Tracks
The 1012TN and 1012TNH Mounting Tracks provide a rigid mounting platform for Series
1011 Universal or high precision size A or B sensors. The mounting tracks service pipe sizes
up to a maximum of 140mm (5.00") outer diameter. The 1012T mounting tracks support both
Direct and Reflect mounting modes. The transmitter recommends the appropriate sensors,
mounting track and mounting mode, based on the pipe data entries.
Installing a 1012T Mounting Track in Reflect Mode
The Sensor Installation procedures show how the automatic selection of sensors, mounting

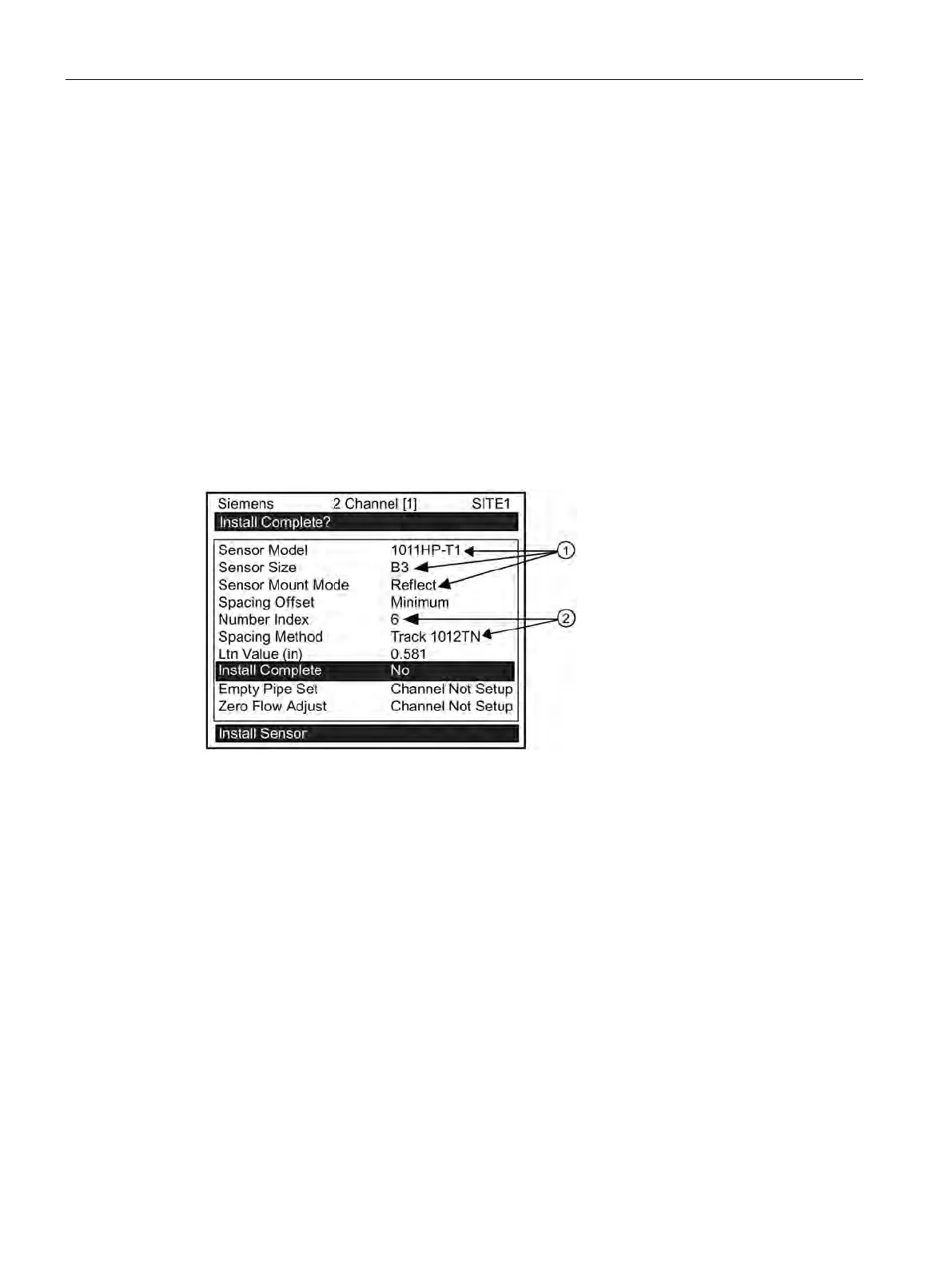

mode and spacing method are established. Examine the figure below, which illustrates a
typical [Install Sensor] menu screen. Note the automatic assignment of mounting track part
number, plus the designation of the number index.
Sensor type, size and mounting mode selection.
Automatic selection of mounting track part number and number index.
