Functions
7.12 Reflexor
FUE1010 IP65 NEMA 4X
130 Operating Instructions, 12/2014, A5E03086491-AC
Selecting Sensor Mounting Location
Select a sensor mounting location that has a fully developed flow profile. Do not locate the
sensor so that sonic energy enters a region that is not representative of the flow velocities at
the measuring location. Use the figure below as a guide to select the proper mounting
location.
①
Elbow
③
Valve
②
Expansion or Contraction
④
Orifice Plate

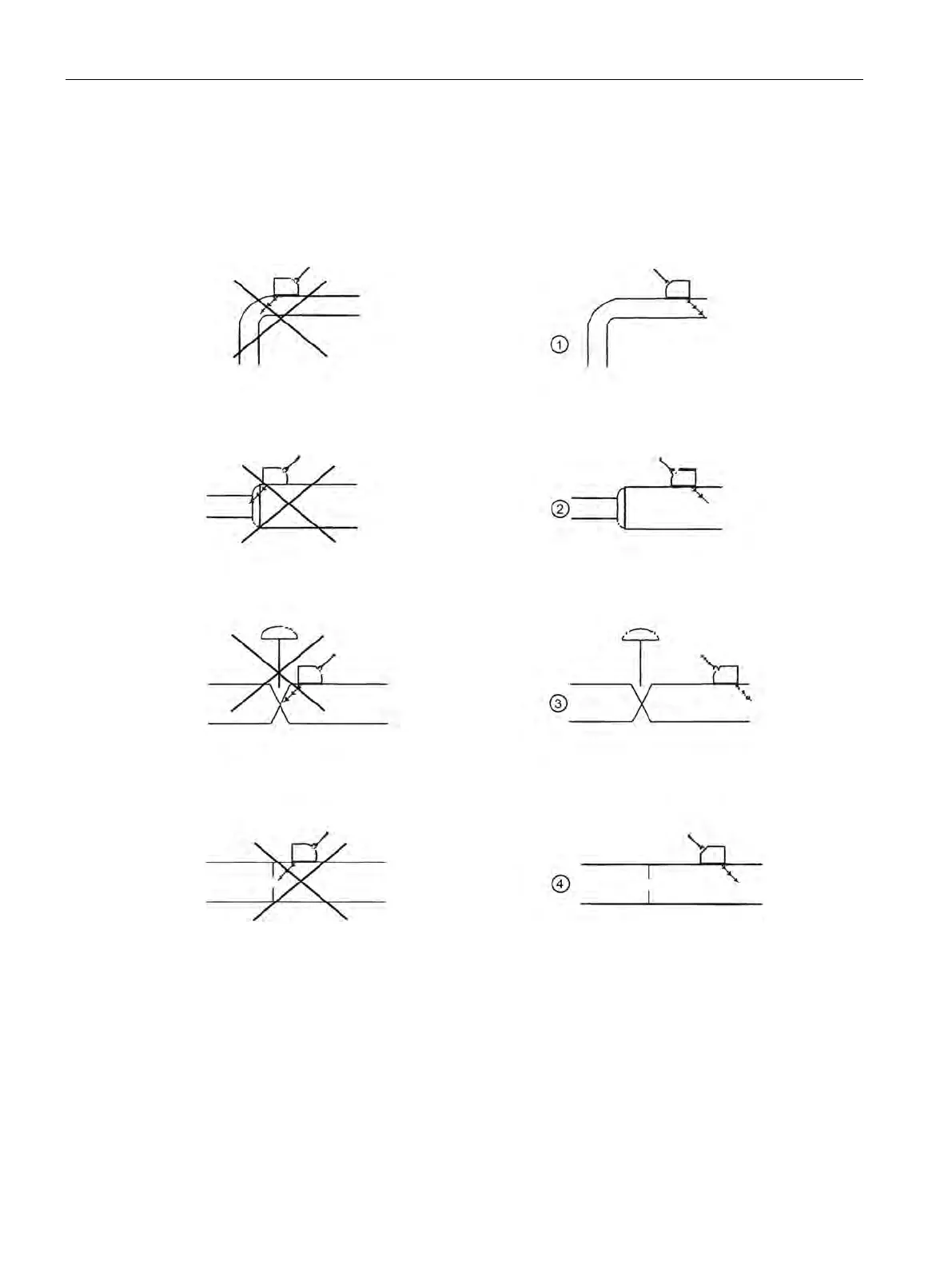

Figure 7-1 Sensor Mounting Examples
