7.7 Analog Out Setup
FUE1010 IP65 NEMA 4X
Operating Instructions, 12/2014, A5E03086491-AC
117
Io Output Functions
Note
4
-20mA outputs also provide a fault indication by dropping to 2mA if assigned to flow rate
and under fau
lt conditions.

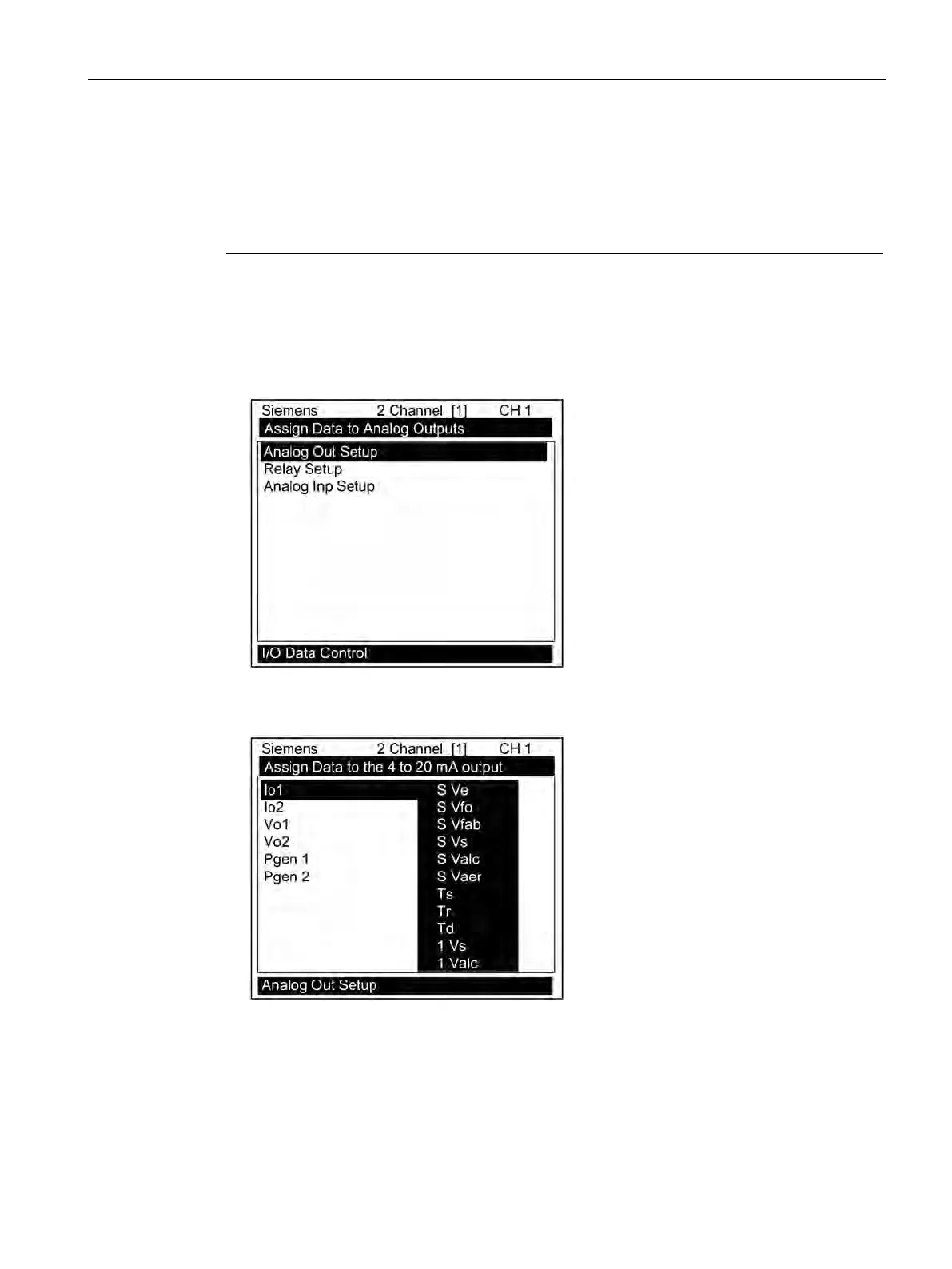

Assigning a function to the current output:
1. From the [Chan/Path Setup] menu scroll to [I/O Data Control].
2. Press <Right Arrow] to highlight the [Analog Out Setup] menu.
3. Press <Right Arrow> twice to access the [Io] option list.
4. Move the cursor to the desired data function by pressing <Up/Down Arrow>.
5. To store selection press <ENTER>.
Vo Output Functions
The Vo analog output is a 0-10 VDC signal that varies linearly in relation to a selected
function.
