Siemens SITRANS FUE1010 IP65 NEMA 4X User Manual

Appendix
A.3 I/O Connections and Wiring
FUE1010 IP65 NEMA 4X
Operating Instructions, 12/2014, A5E03086491-AC
179

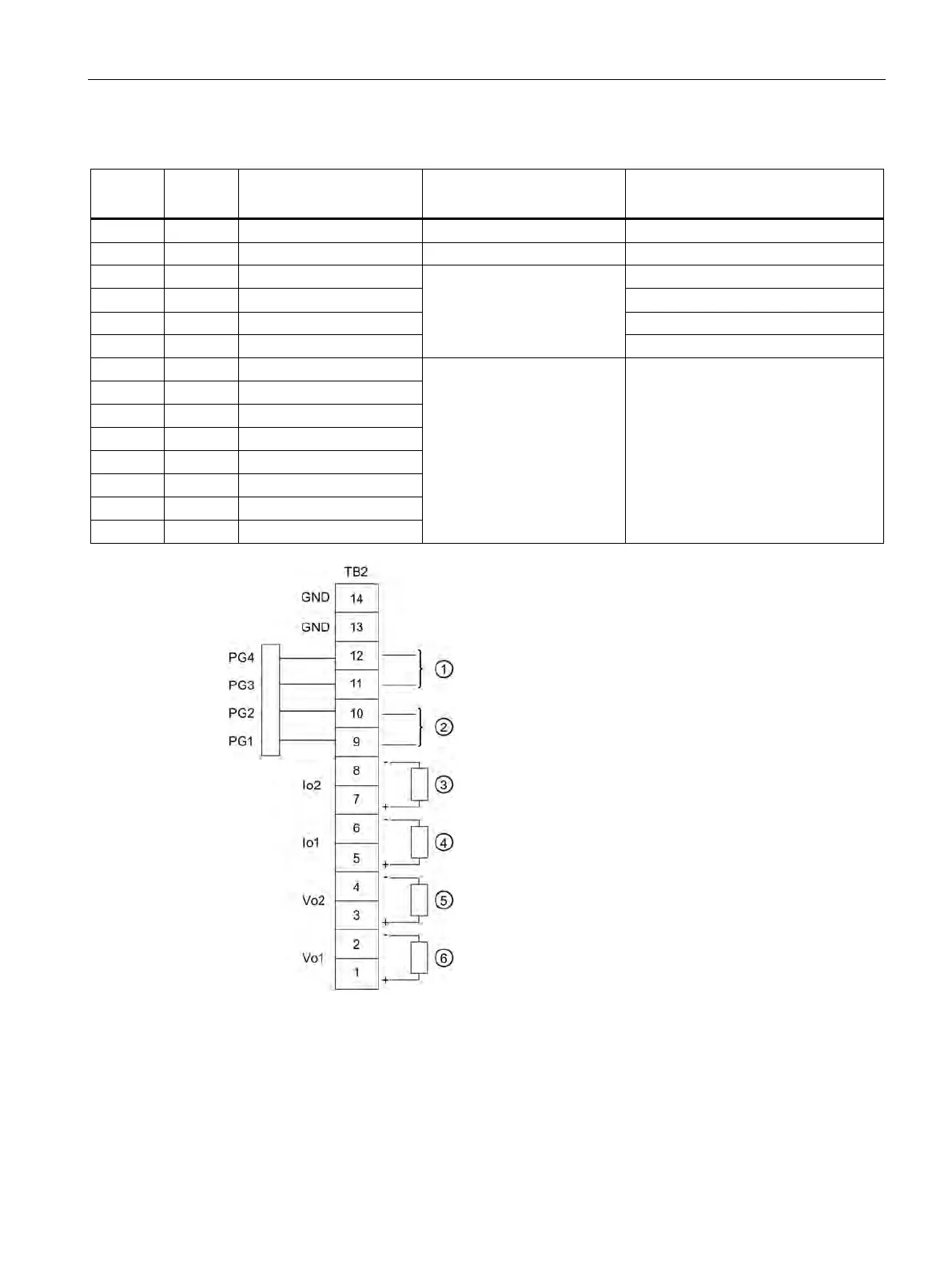

Table A- 5 Input/Output Wiring (TB2) - 7ME39400AL03 and 7ME39400AL04 Expanded I/O Module
Pin#
Signal
Definition
Description
Function
Dual/Quad Path Only
14
Chassis Ground
Chassis Ground
Cable Shield Terminations
13
Chassis Ground
Chassis Ground
Cable Shield Terminations
12
PG4
GND
0-5000 Hz frequency output ,
assignable
GND
11 PG3 TTL 5V TTL
10
PG2
GND
GND
9 PG1 TTL 5V TTL
8
Io2 (-)
Isolated Return
Flow meter process variables
assigned to individual outputs
under menu control.
System outputs assignable & scalable
to flow related parameters.
4-20mA outputs also provide a fault
indication by dropping to 2mA if as-
signed to flow rate and under fault
conditions.
7
Io2 (+)
4-20mA Output 2
6
Io1 (-)
Isolated Return
5
Io1 (+)
4-20mA Output 1
4
Vo2-
Ref. Ground
3
Vo2+
0-10 Volt Output
2
Vo1-
Ref. Ground
1
Vo1+
0-10 Volt Output
①
TB2-11 - POS [+] Total OC
TB2-12 - POS [+] Total TTL
④
4-20mA Load 1k ohm (max)
②
TB2-9 - NEG [-] Total OC
TB2-10 - NEG [-] Total TTL
⑤
0-10V Load 10k ohm (min)
③
4-20mA Load 1k ohm (max)
⑥
0-10V Load 10k ohm (min)
