Siemens SITRANS FUE1010 IP65 NEMA 4X User Manual

Appendix
A.3 I/O Connections and Wiring
FUE1010 IP65 NEMA 4X
186 Operating Instructions, 12/2014, A5E03086491-AC

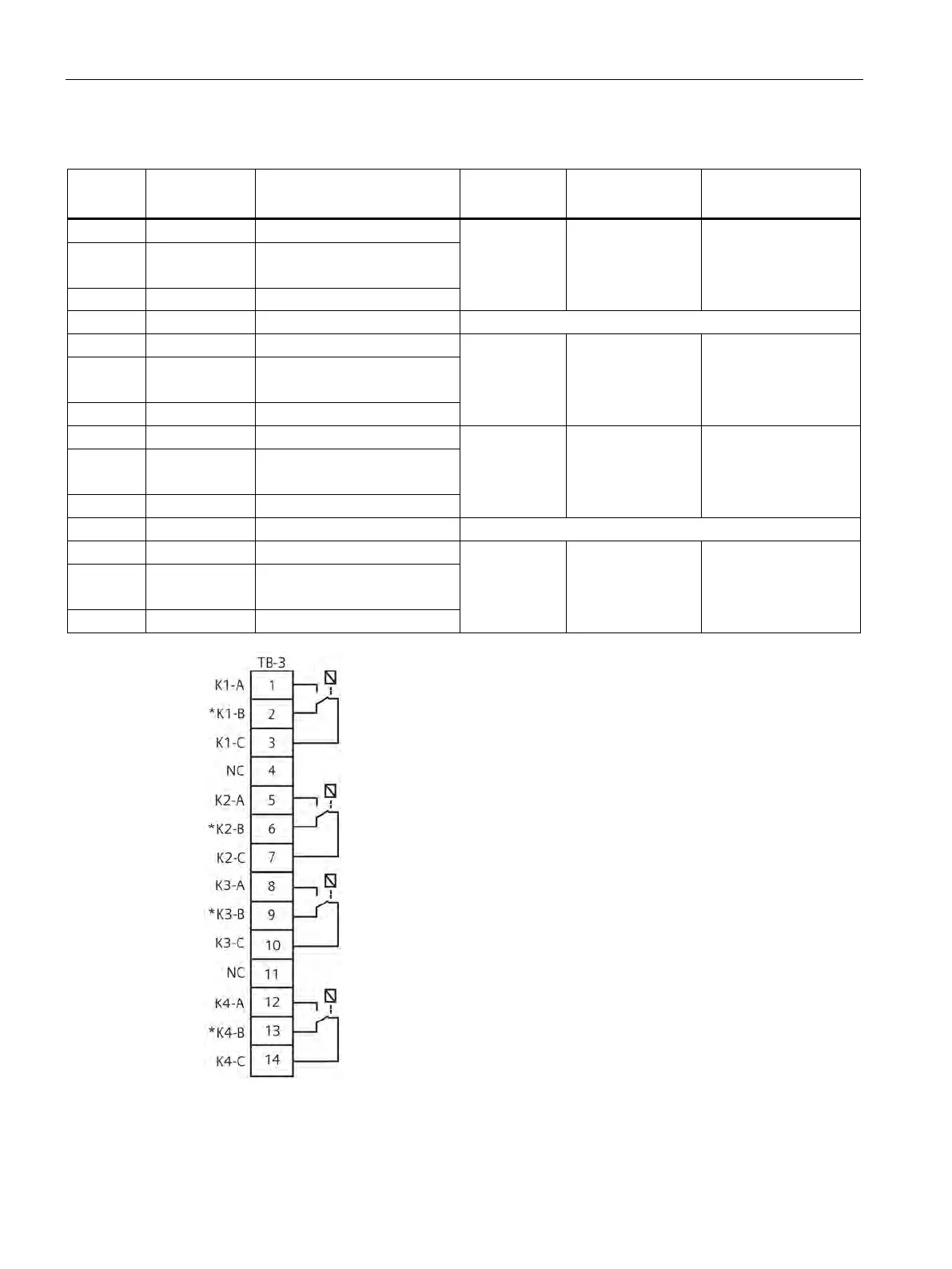

Table A- 11 Input/Output Wiring (TB3) - 7ME39400AL04 Expanded I/O Module
Pin#
Signal
Definition
Description
Function
Dual Path Only
Function
Quad Path Only
1
K1 A
Relay 1 Normally Open
Relay 1 Alarm or control
functions set by
CH 3.
Alarm or control func-
tions set by CH 5.
2 K1 B Relay 1 Normally Closed
(7ME39400AL04 only)
3
K1 C
Relay 1 Common
4
GND
Digital Return (GND)
DGND
5
K2 A
Relay 2 Normally Open
Relay 2 Alarm or control
functions set by
CH 3.
Alarm or control func-
tions set by CH 5.
6 K2 B Relay 2 Normally Closed
(7ME39400AL04 only)
7
K2 C
Relay 2 Common
8
K3 A
Relay 3 Normally Open
Relay 3 Alarm or control
functions set by
CH 3.
Alarm or control func-
tions set by CH 5.
9 K3 B Relay 3 Normally Closed
(7ME39400AL04 only)
10
K3 C
Relay 3 Common
11
GND
Digital Return (GND)
DGND
12
K4 A
Relay 4 Normally Open
Relay 4 Alarm or control
functions set by
CH 3.
Alarm or control func-
tions set by CH 5.
13 K4 B Relay 4 Normally Closed
(7ME39400AL04 only)
14
K4 C
Relay 4 Common
