Installing/mounting
4.5 Mounting the Transmitter
FUE1010 IP65 NEMA 4X
34 Operating Instructions, 12/2014, A5E03086491-AC
2-in (6cm) pipe
Cable Entry Ports
Transmitter
Mounting Flange (also use for wall mounting)
Mounting Plate
U-Bolt Assembly for standard 2-in (6 cm) mounting pipe

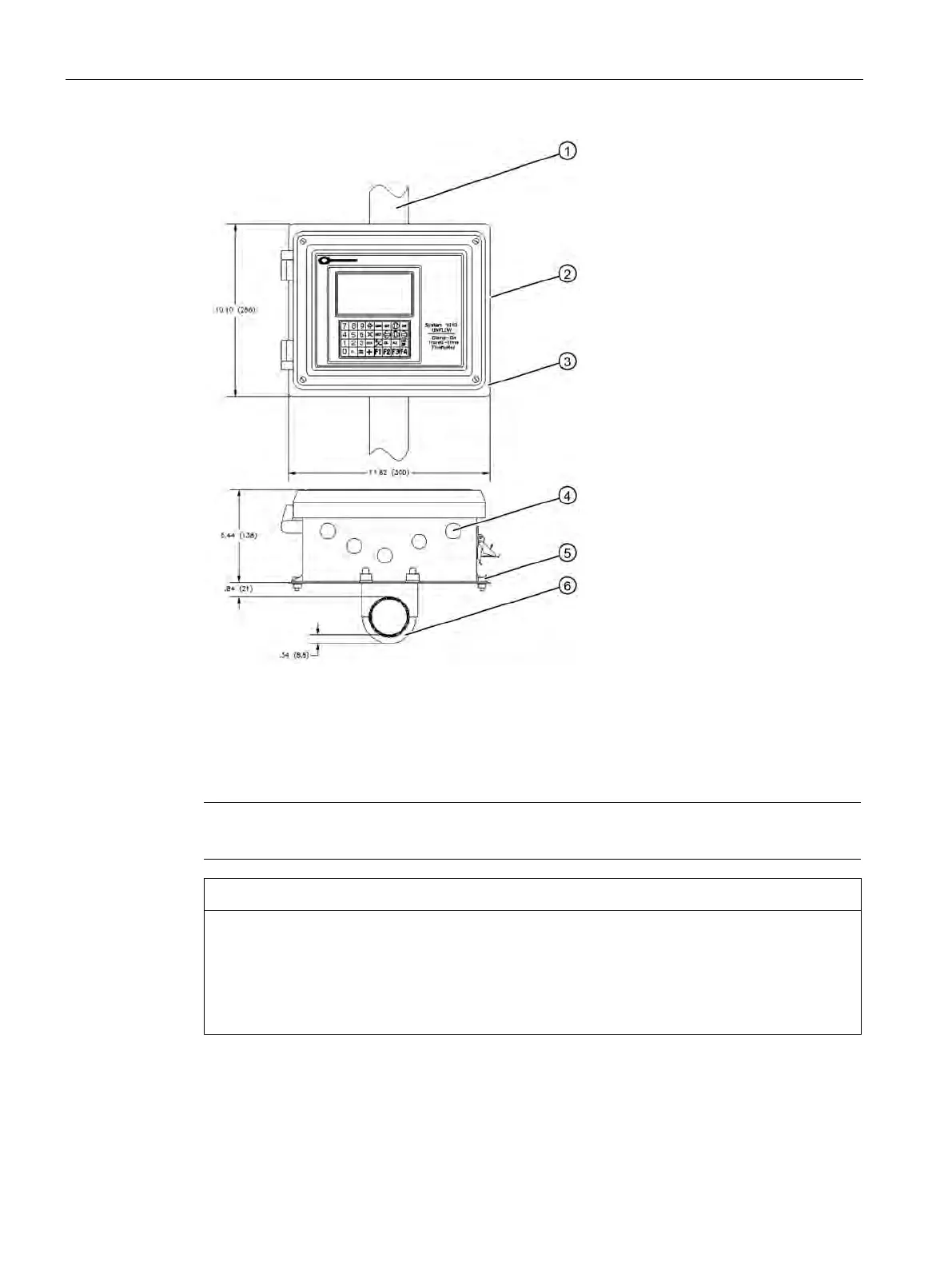

Figure 4-1 Pipe Mounting and Mounting Locations for Transmitter
Note
Use conduit fittings or cab
le glands on all cables.
NOTICE
Weather Seal Malfunctions
Incorrect installation of weather seals may result in failure to meet to IP65 standards and
damage to the equipment.
Install weather tight seals at all unused holes using proper cable conduit and close
additional holes to IP65 standards.
