Connecting
5.2 Transmitter Wiring
FUE1010 IP65 NEMA 4X
40 Operating Instructions, 12/2014, A5E03086491-AC

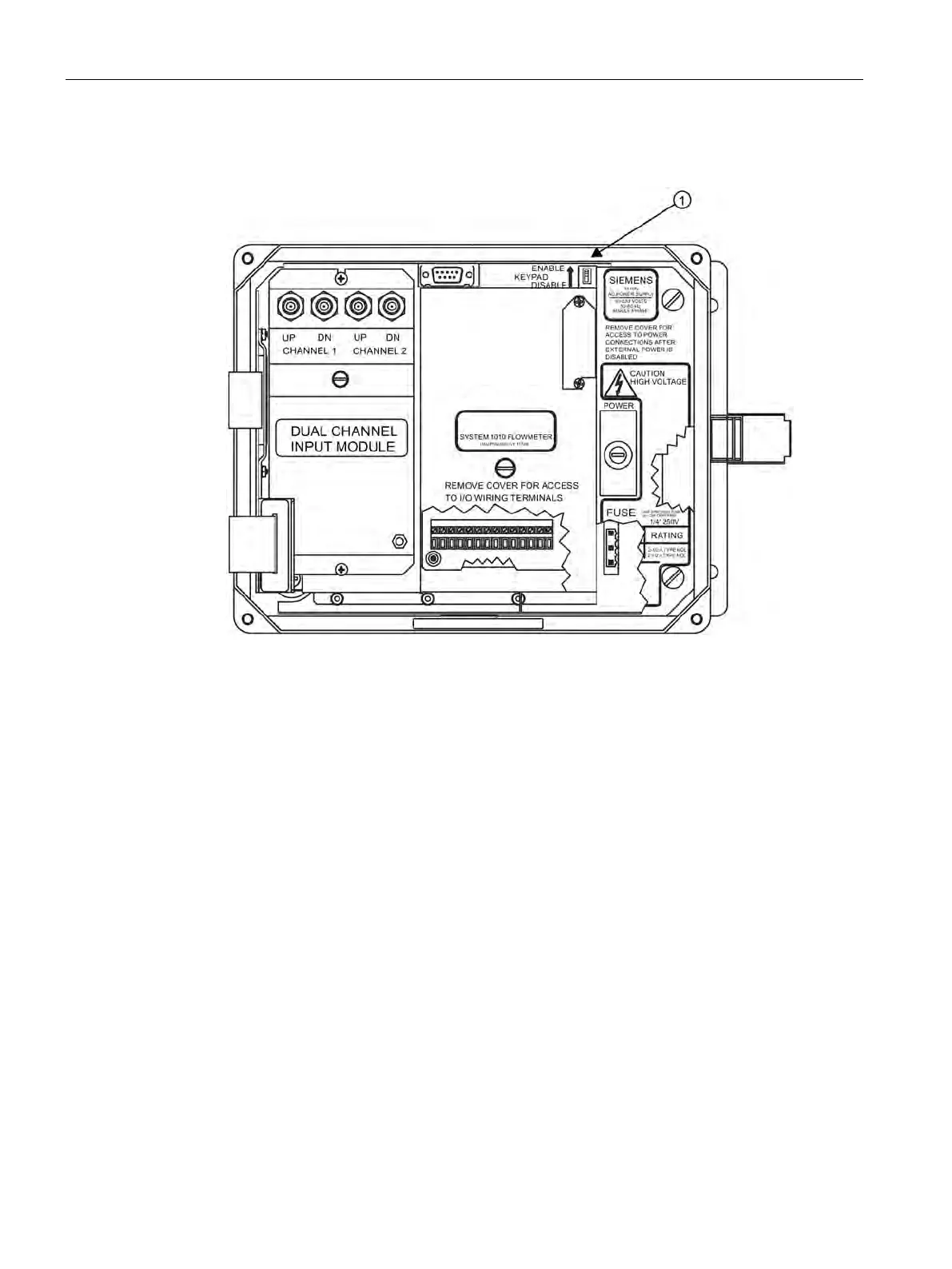

8. Replace access cover. Make sure Keypad Enable switch is in the "Enable" position (see
below).
9. If installing a Temperature Sensor board, go to Wiring Temperature Sensor to Transmitter
(Page 41). If not, go to Navigating The Menu (Page 46).
