5.5 Sensor Installation
FUE1010 IP65 NEMA 4X
64 Operating Instructions, 12/2014, A5E03086491-AC
Installing the Sensor
1. Take either sensor and apply a continuous lengthwise 3mm (1/8-inch) bead of coupling
compound across the center of the sensor emitting surface.
①
F-Connector
④
Front Face
②
Angled Edge
⑤
Emitting Surface
③
Sensor
⑥
Coupling Compound

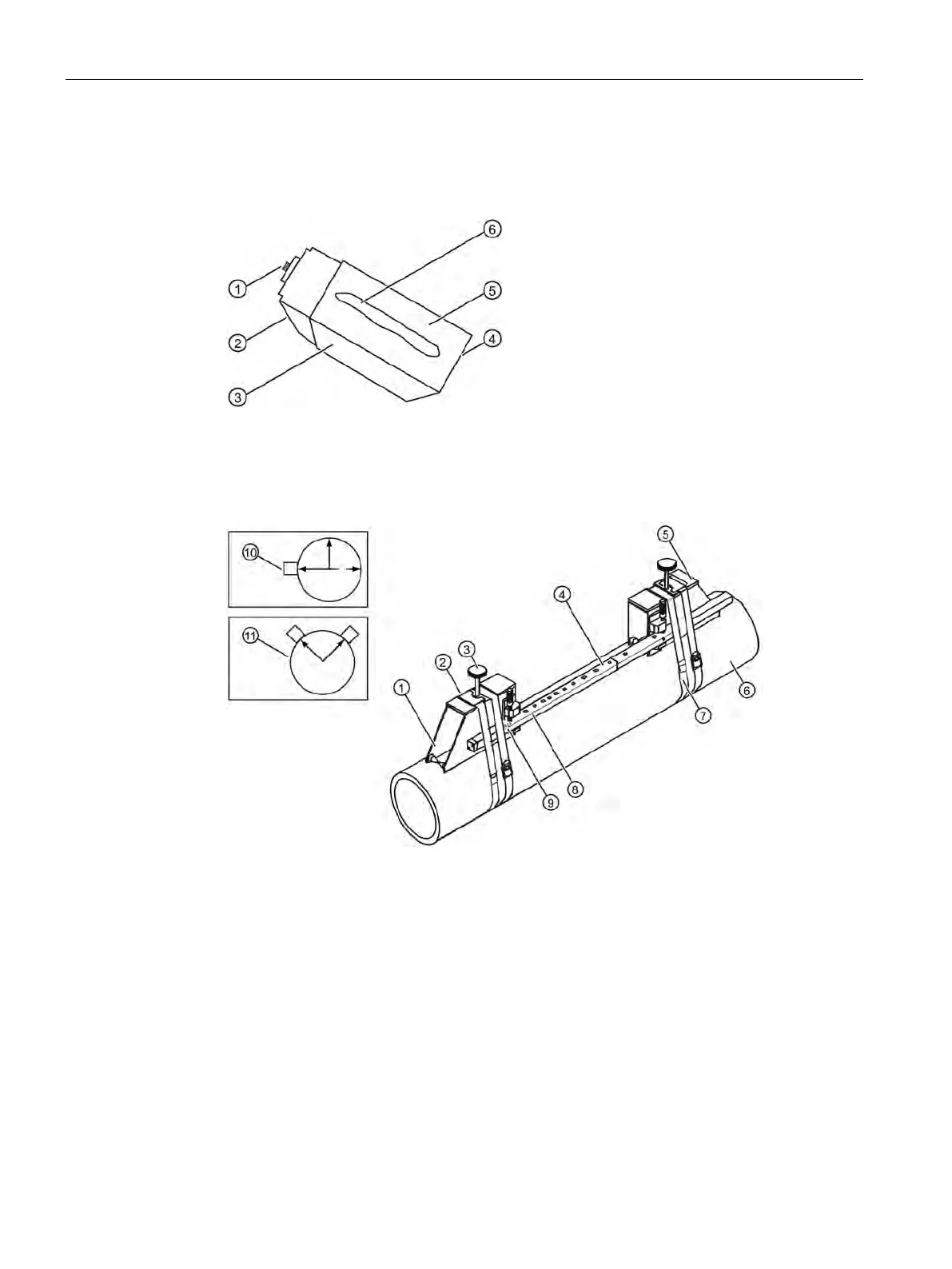

Figure 5-13 Sensor
①
Front View
⑥
Pipe
②
Spring Clip (Not present on some mod-
els)
⑦
Mounting Strap Note: Optional 2nd
Mounting Strap shown. Larger pipes over
76cm (30 inches) may need an additional
support.
③
Sensor Clamping Screw
⑧
Spacer Bar Platform and Clamping
Screw
④
Spacer Bar
⑨
Spacer Bar Reference Hole
⑤
7ME39600M Mounting Frame
⑩
Orientation for Single Beam Sensor at 9
o'clock position
⑪
Orientation for Dual Beam Sensor at 10
& 2 o'clock positions
Figure 5-14 Sensor Installation
