Connecting
5.6 Mounting Temperature Sensors
FUE1010 IP65 NEMA 4X
84 Operating Instructions, 12/2014, A5E03086491-AC
7ME39600CR 992EC Series Cable
Thermal Couplant
Clamp-on Temperature Sensor (Matched
pair required for FUE1010)
Pipe
Mounting Assembly

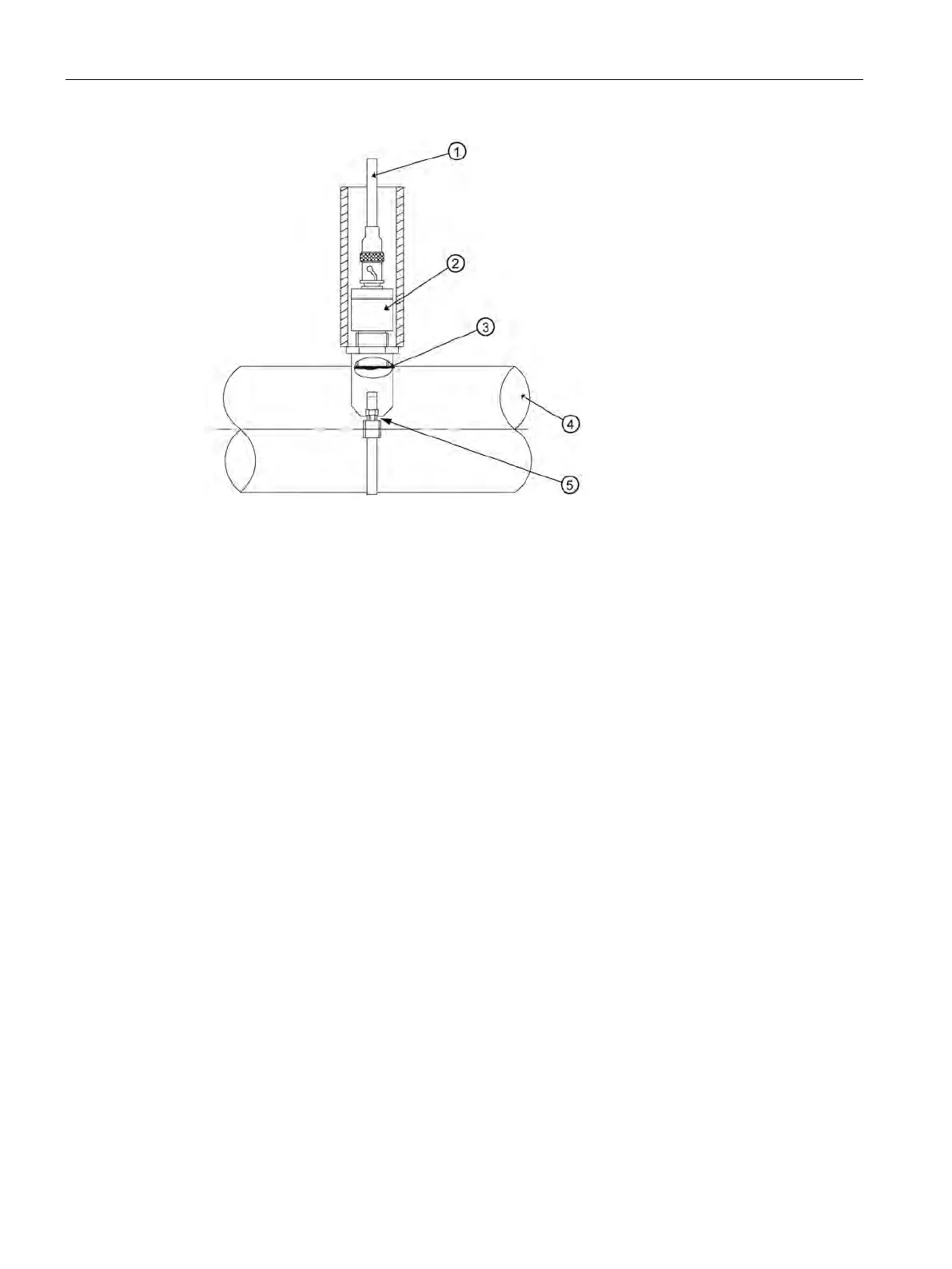

Figure 5-26 Clamp-on Temperature Sensor
