Page 42 SIMPLEX 4100 EWIS
INSTALLATION MANUAL
Document No.: 4100-M011 March 1998 Issue 1.0
3.6 P.A. MICROPHONE TERMINATIONS

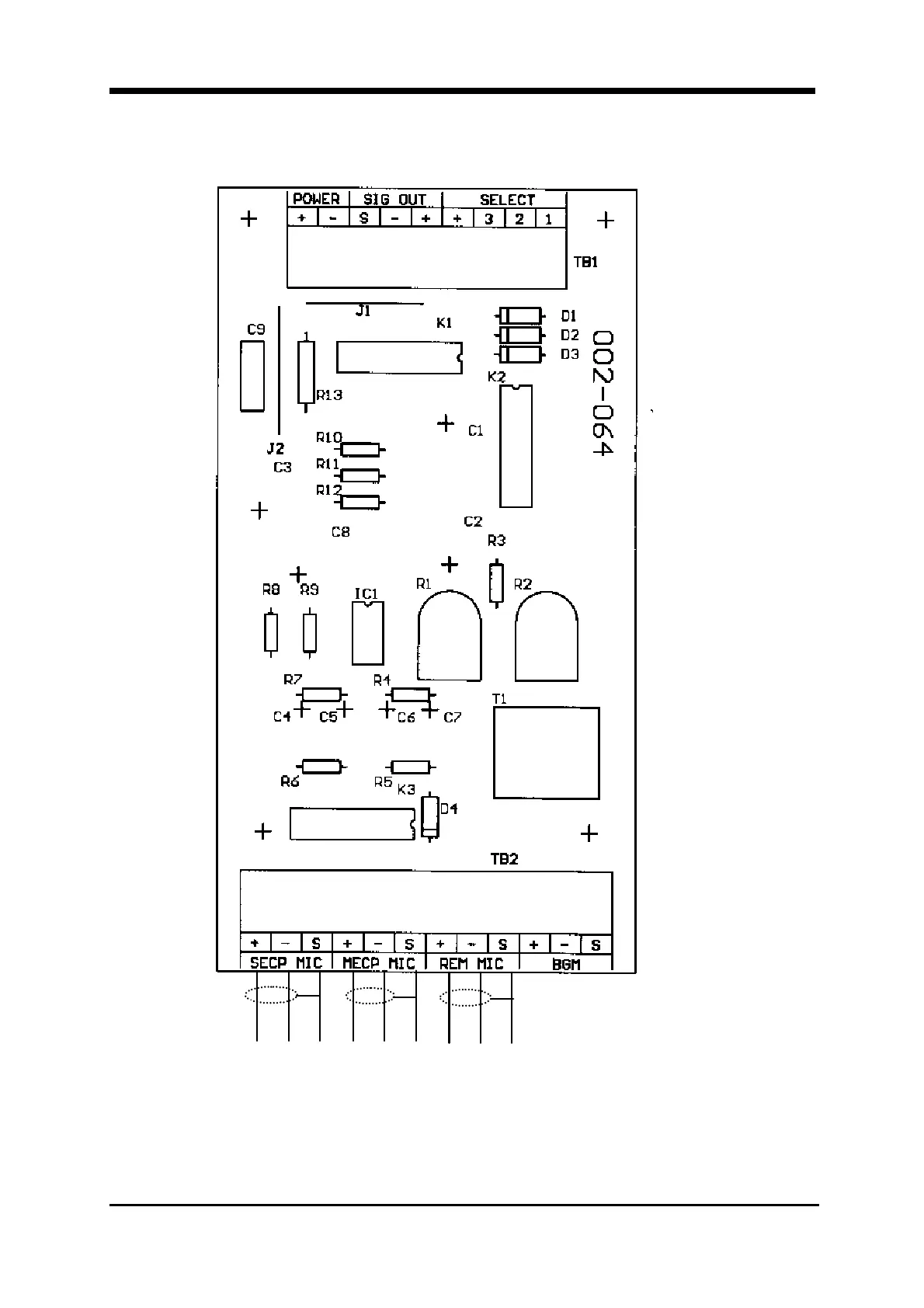

Figure 17 Pre Amplifier Board Terminations for PA
REM MIC
Terminations
MECP
Terminations
SECP
Terminations
Note S = Cable Shield
