SIMPLEX 4100 EWIS Page 7
INSTALLATION MANUAL
Document No.: 4100-M011 March 1998 Issue 1.0

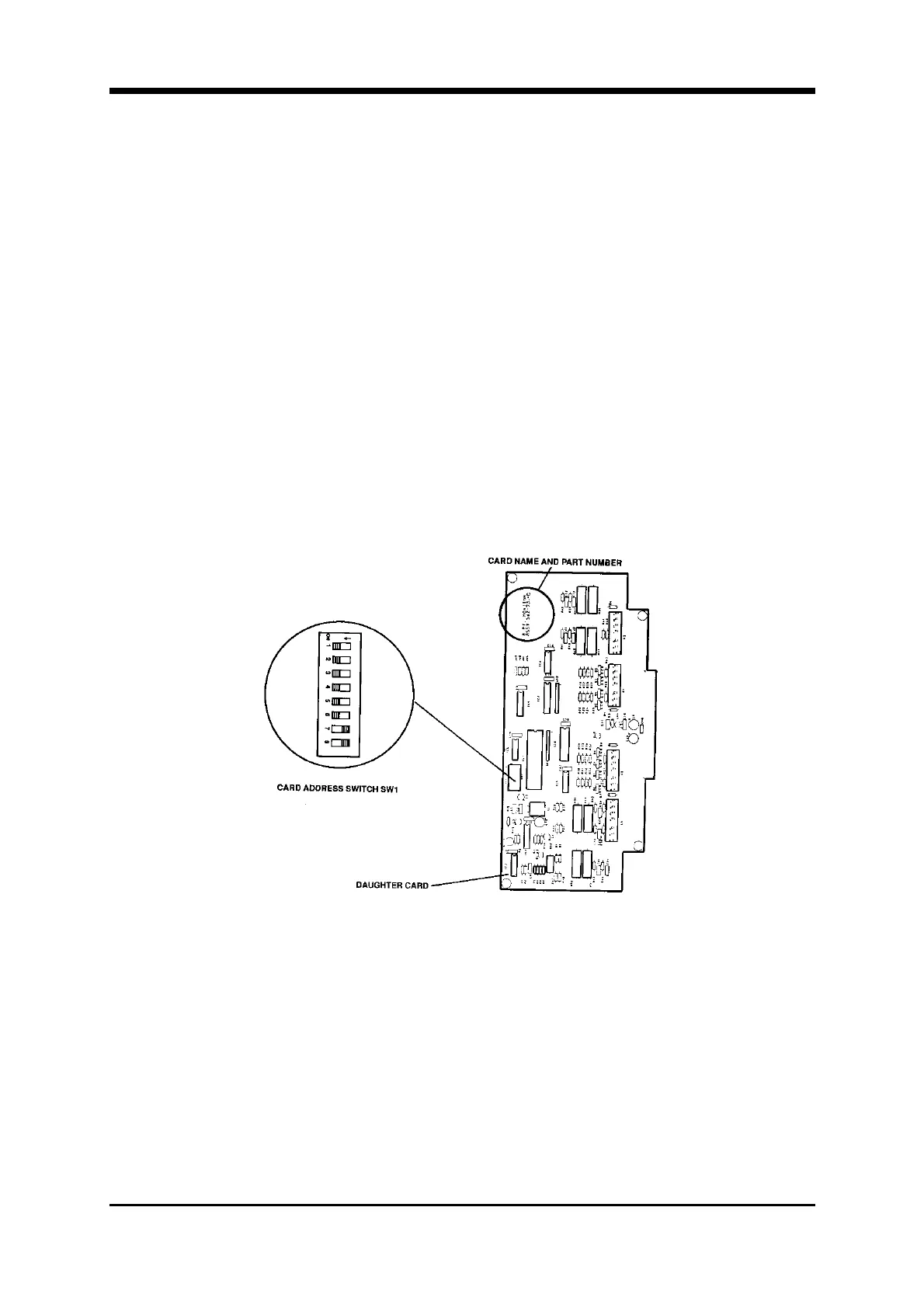

Figure 5 Location of Address Switch SW1 on a Typical 4100 Daughter Card
7. Make certain that all cables and wiring harness are connected in original locations
as shipped from the factory.
• Refer to Simplex Field Wiring Diagram (Part No. 841-731).
