3.8.2 Network WIP Phone Termination – Slave Node
The WIP Master Phone is terminated on connector P6. Only use approved master
phone part number 2084-9106.
The network connections for slave node WIP Phones in the WIP Phone network are
terminated on terminal block TB1 termination 7,8.
The cabling from the previous node and the next node in the network are
terminated together. See

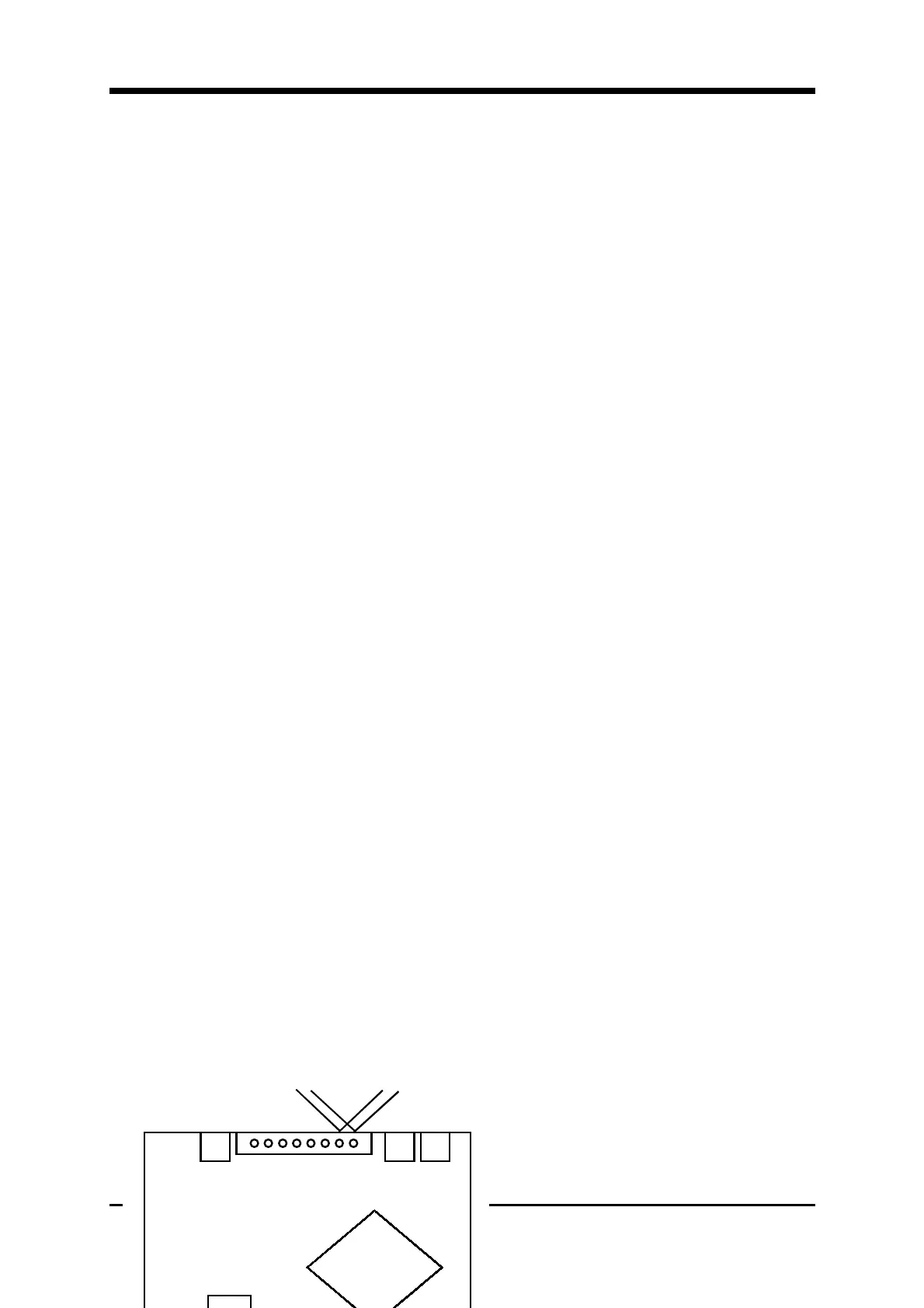

Figure 21
P5 P3 P4TB1
4100-0205
Not Used
1 2 3 4 5 6 7 8
To Next Node
in Network
From Previous Node
in Network
