Simplex 4100 - Background Music Terminations; Figure 18 Pre Amplifier Board Terminations for BGM

SIMPLEX 4100 EWIS Page 45
INSTALLATION MANUAL
Document No.: 4100-M011 March 1998 Issue 1.0
3.7 BACKGROUND MUSIC TERMINATIONS

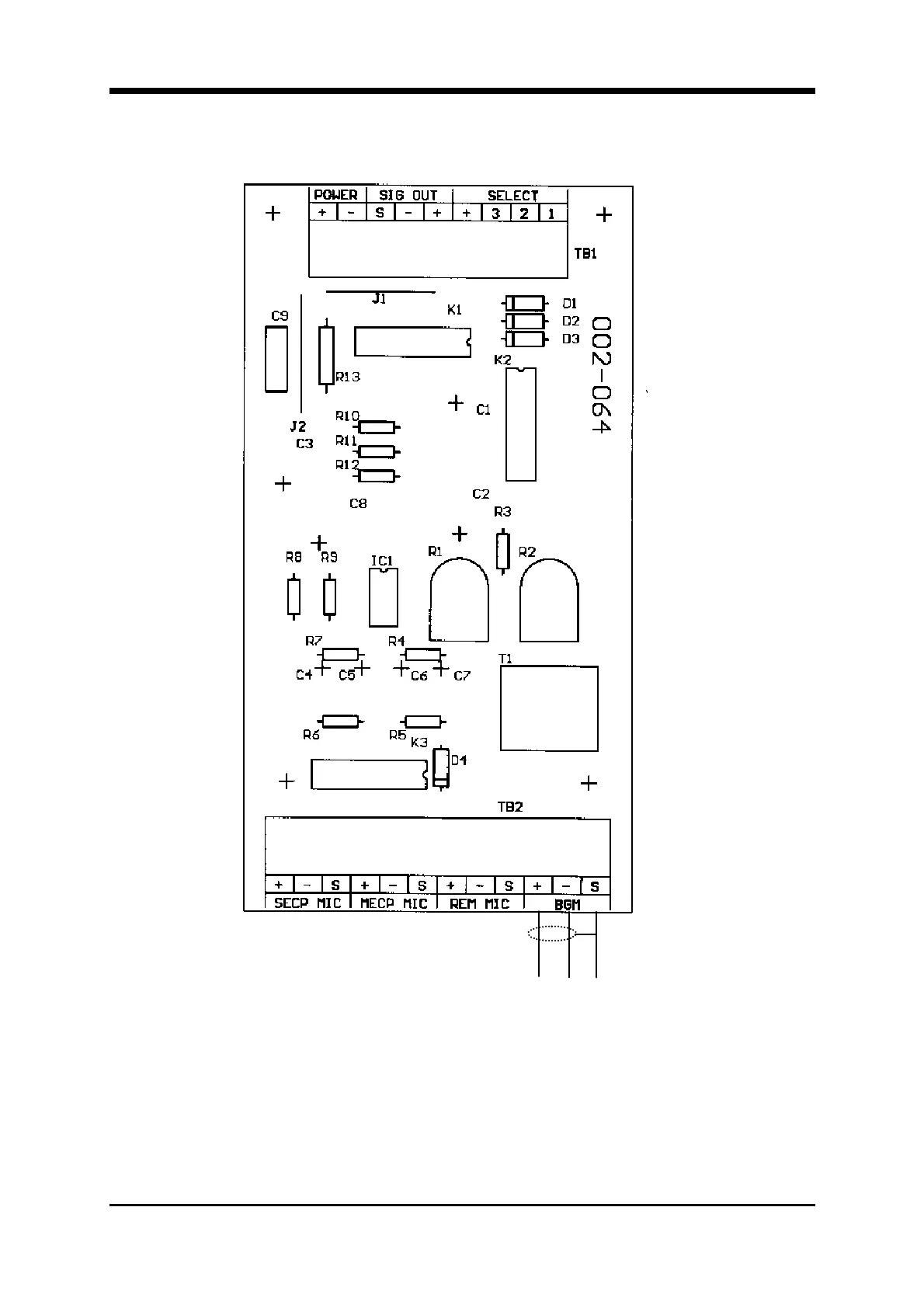

Figure 18 Pre Amplifier Board Terminations for BGM
The Background Music input is terminated on the pre amplifier card.
BGM
Terminations
Note S = Cable Shield
