4100ES-S1 Programming Guide Document: LT0400
Adding Zone Displays
7-4

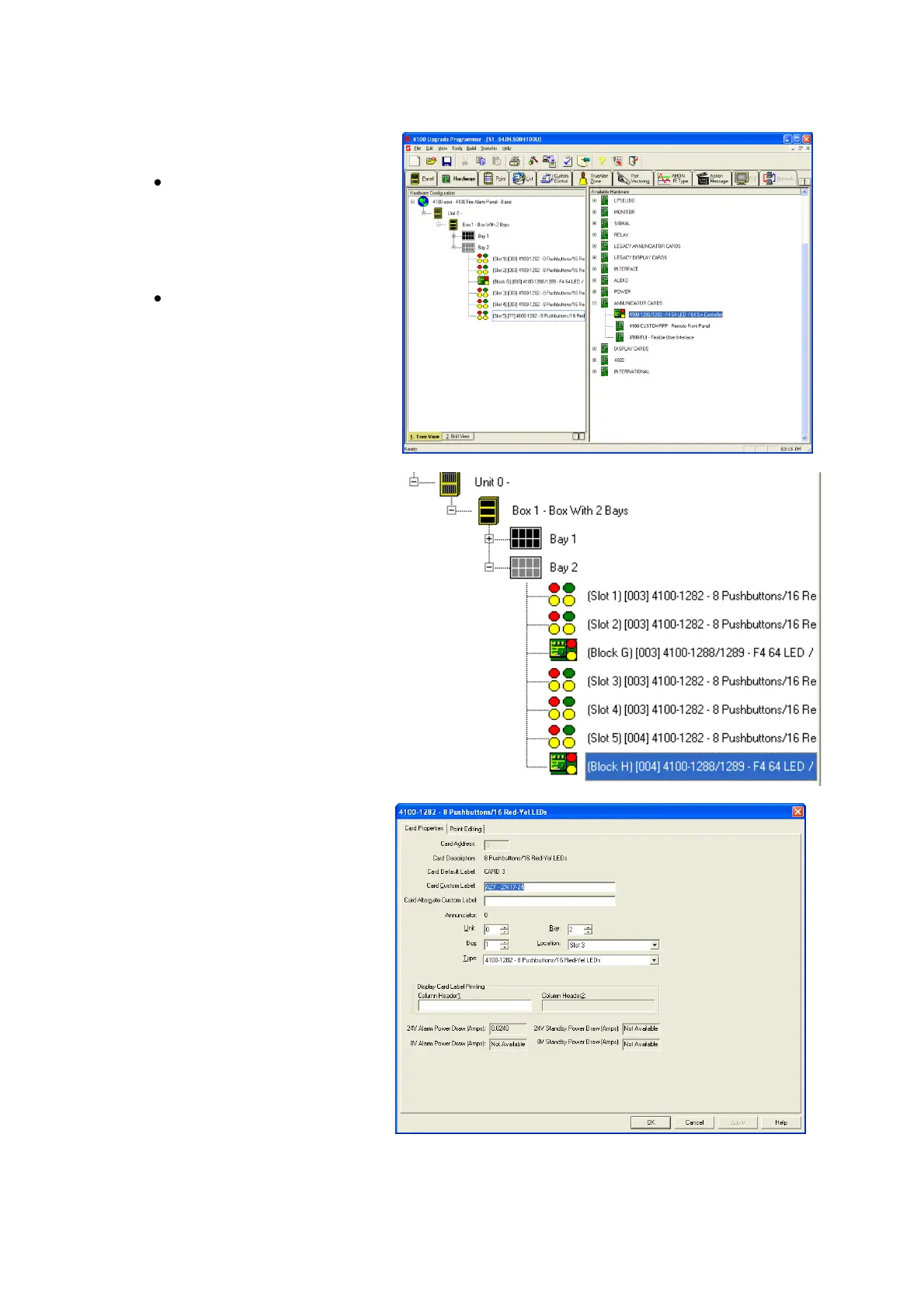

To add the 4100-1288/1289 – F4 64
LED / 64 SW Controller
Click on the “+” sign beside
the
ANUNNCIATOR CARDS
option on the
Available Hardware
window.
Drag the 4100-1288/1289 –
F4 64 LED / 64 SW
Controller Icon over to the
Bay 2 icon and release.
The card will be added to the
configuration.
Verify that the card appears with
address 4 and that 4100-1282 – 8
Pushbuttons/16 Red-Yellow
LEDs modules that previously
appeared with ‘[??]’ sign – now
appear with address 4 – [004].
Do not change the 2
nd
LED/Switch
Controller from address 4 as this
will mean all the Custom Control
equations will need modifying.
After the new 4100-1282 – 8
Pushbuttons/16 Red-Yellow
LEDs cards have been installed
configure their SW Mode and Ref
Address:
Double click on the card and enter
the Card Properties tab. Enter the
Card Custom Label text box with
an appropriate name.
To Next Page
