Section 1 – Scheduled Maintenance Scheduled Maintenance Inspections

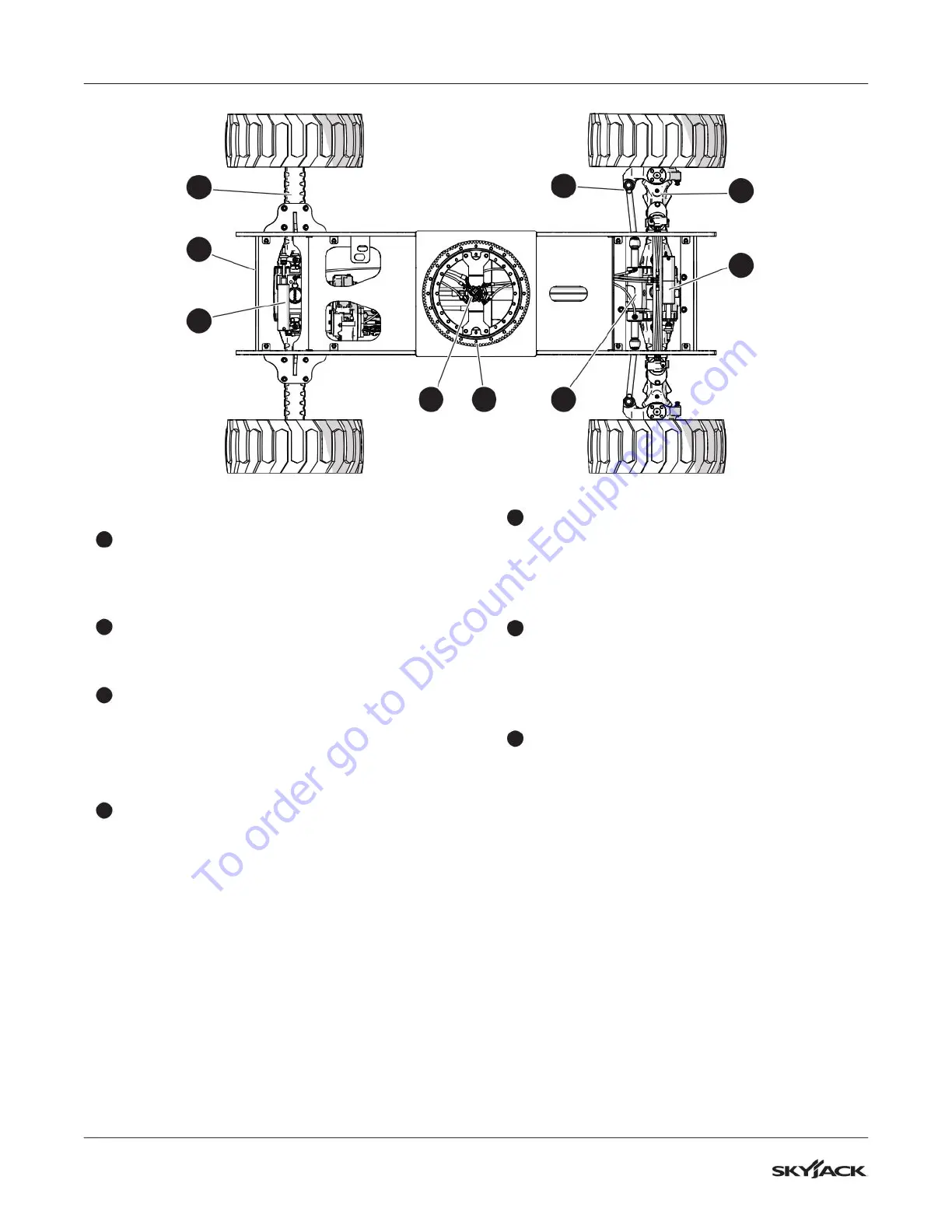

1.6-6 Base
1
Base weldment (B)
▪
Make sure there are no visible cracks in
welds or structure and there are no signs of
deformation.
2
Rotary manifold (B)
▪
Make sure all hoses are correctly tightened
and there is no sign of hydraulic leakage.
3
Turret rotation gear (B,C)
▪
Make sure there are no loose or missing parts.
▪
Make sure there is no visible damage.
C - Annual Inspection
▪
For the lube procedure, refer
4
Axles (B,C)
▪
Make sure the front and rear axles are
correctly attached.
▪
Make sure there are no loose or missing parts.
▪
Make sure all the fittings and hose connections
are tight.
▪
Make sure there is no sign of hydraulic
leakage.
C - Annual Inspection
▪
Check the brakes annually. Refer to the
procedure 5.10-10 Brake Inspection.
5
Brake Cylinder (B)
▪
Make sure there are no loose or missing parts.
▪
Make sure all the fittings and hoses are
correctly tightened and there are no hydraulic
leaks.
6
Steer cylinder (B)
▪
Make sure there are no loose or missing parts.
▪
Make sure all the fittings and hoses are
correctly tightened and there are no hydraulic
leaks.
7
Steer linkage (B)
▪
Make sure there are no loose or missing parts.
▪
Make sure the tie rod end studs are locked
and there is no visible damage.
6
1
7
3
5
4
4
2
5
