Skyjack SJ63 AJ+ Service Manual

62
SJ63 AJ+, SJ63 AJ229043AAA
Section 3 – System Component Identification and Schematics Rotary Manifold Port Identification

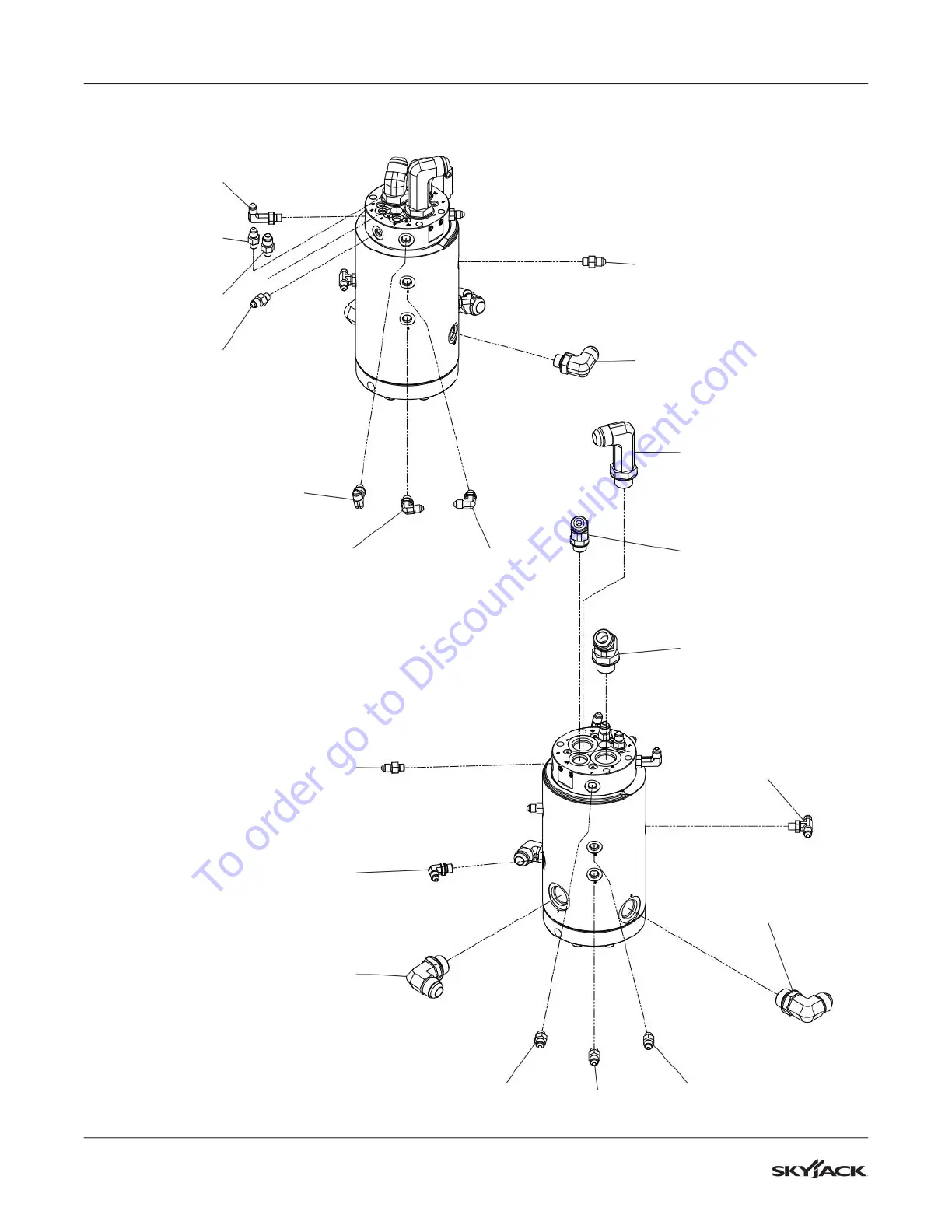

3.6 Rotary Manifold Port Identification
Port 6
To Brake Manifold
Port 3
To Drive Pump
Port 4
To Brake Manifold
Port 2
To Brake Manifold
Port 10
To Brake Manifold
Port 1
To Steer Cylinder
Port 9
To Drive Motor
Port 7
To Drive Pump
Port 8
To Drive Pump
Port 9
To Hydraulic Tank
Port 2
To Axle Lock Cylinder
Port 5
To Steer Cylinder
Port 6
To Drive Motor
Port 3
To Axle Lock Cylinder
Port 8
To Drive Motor
Port 4
To Brake Cylinders
Port 1
To Main Manifold
Port 7
To Drive Motor
Port 5
To Main Manifold
Port 10
To Diff Lock Cylinder
M153412AD-SM
