Skyjack SJ63 AJ+ Service Manual

A B C D E F G H
V
Z
Y
X
W
67
SJ63 AJ+, SJ63 AJ 229043AAA

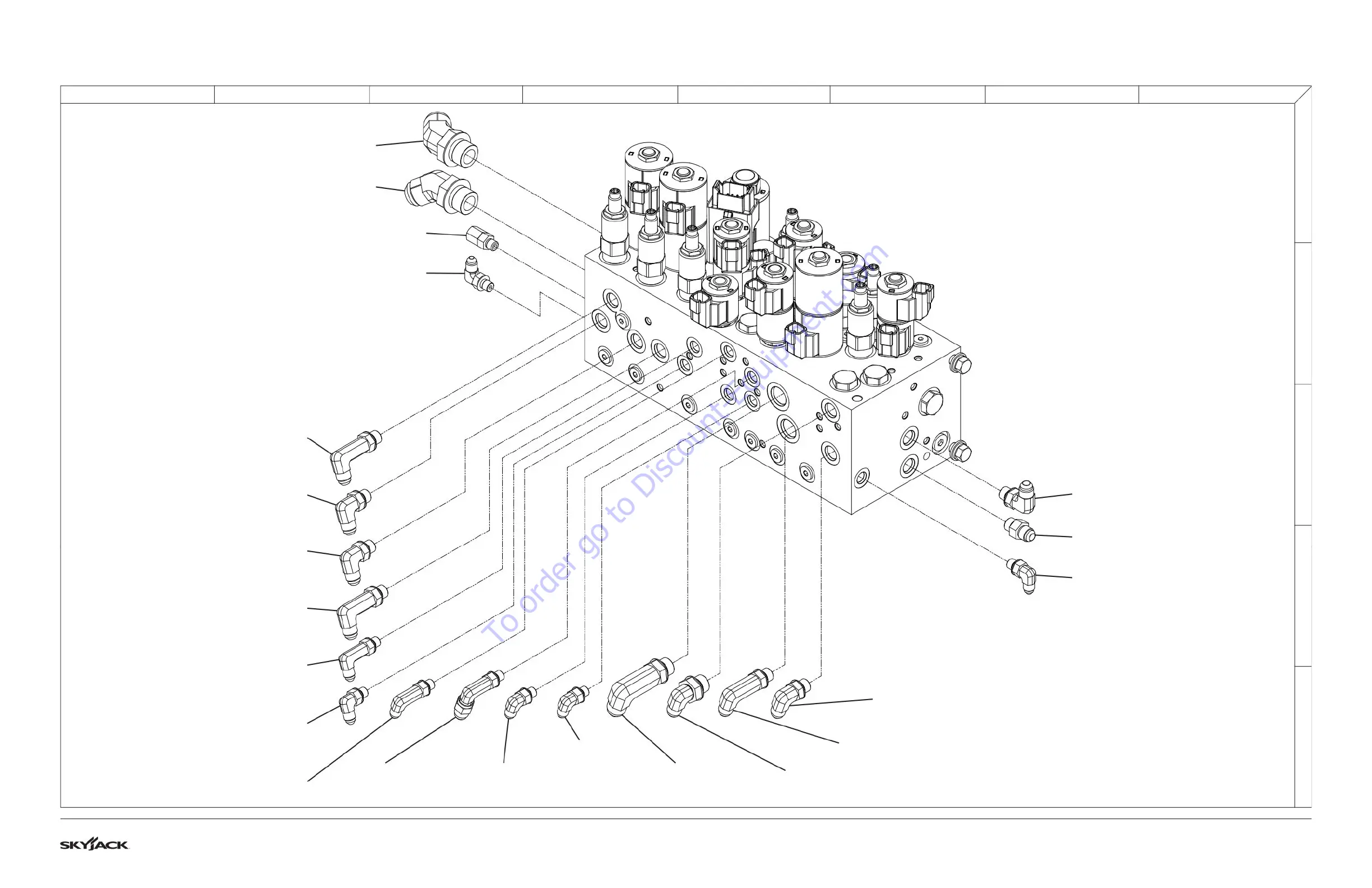

3.11 Main Manifold and Port Identifications
M153646AD-SMa
SWB
To Turret Swing Drive
T2
To Brake Manifold
AUX
To Emergency Power Unit
BLS
To System Pump
STR
To Rotary Manifold
STL
To Rotary Manifold
EA
To Boom Extension Cylinder
EB
To Boom Extension Cylinder
PLA
To Master Cylinder
PLB
To Master Cylinder
JPB
To Jib Valve
JPA
To Jib Valve
SWA
To Turret Swing Drive
RA
To Riser Cylinders
RB
To Riser Cylinders
LB
To Main Boom Lift Cylinder
LA
To Main Boom Lift Cylinder
LS
To Brake Manifold
T
To Return Filter
P1
To High Pressure Filter
GP
Gauge Pressure
