Skyjack SJ63 AJ+ Service Manual

A B C D E F G H
V
Z
Y
X
W
87
SJ63 AJ+, SJ63 AJ 229043AAA
TO ELECTRICAL PANEL
403A RED
402 GREEN
403 RED
02 WHITE (GROUND)
TO POSI AIR CONTROLLER
POSITIVE AIR SHUT OFF MODULE 10 PIN CONNECTOR PLUG
PIN 1 -BLACK (401) PIN 6 -BLUE (403)
PIN 2 -EMPTY PIN 7 -WHITE (02)
PIN 3 -RED (403A) PIN 8 -WHITE (408)
PIN 4 -GREEN (402) PIN 9 -EMPTY
PIN 5 -EMPTY PIN 10 -YELLOW (410)
TO SOLENOID
PIN A-WHITE (408)
PIN B-RED (403A)
PIN C-BLACK (401)
402
403A
403
403A
TO ALTERNATOR
TRIGGER
410
02
02
02
02
403A
4
3
2
1
7
8
9
6
5
10
BACK VIEW
CONNECTOR
403A
02
M226103AA

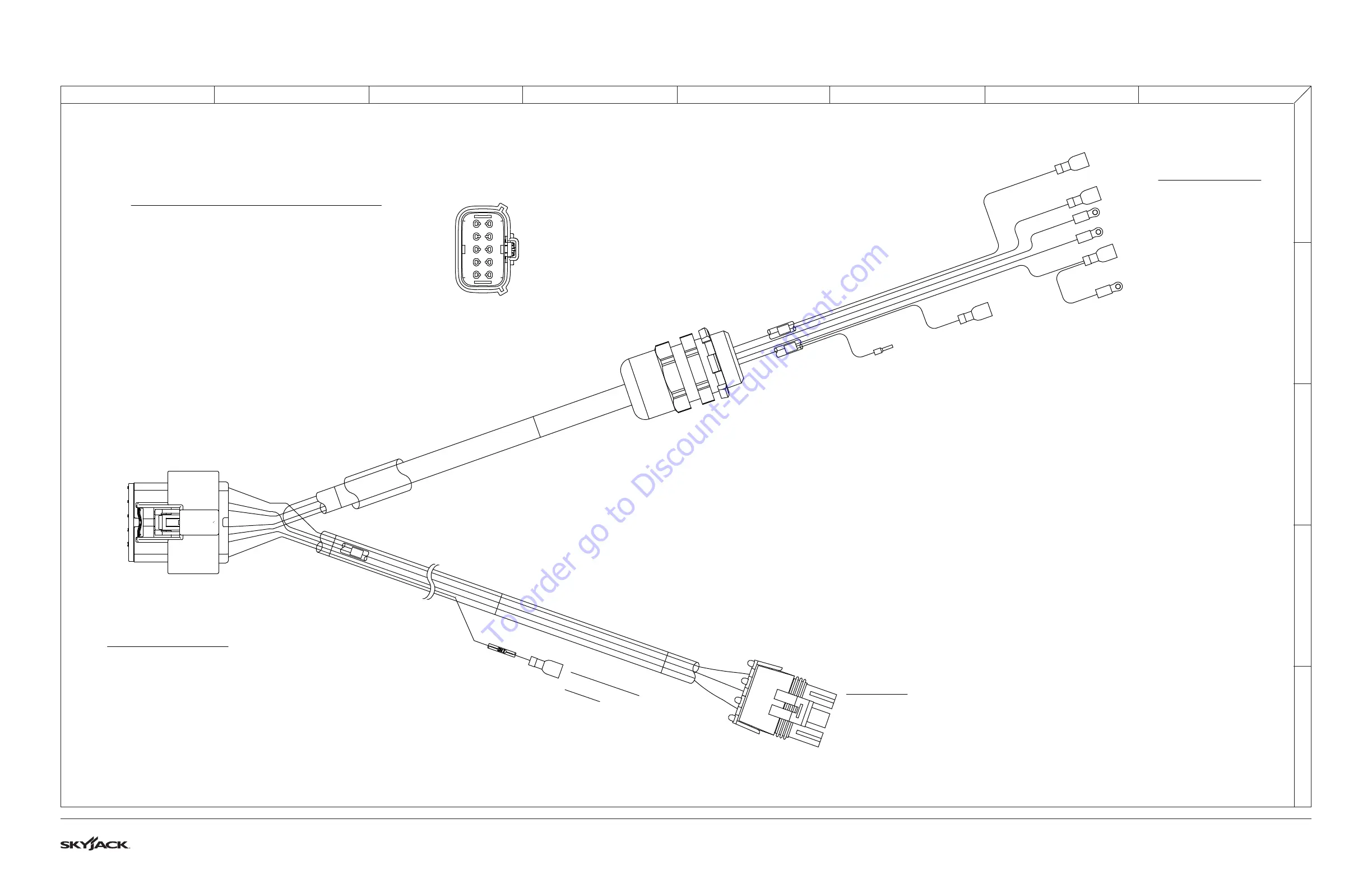

3.31 Positive Air Shutoff Harness
