Skyjack SJ63 AJ+ Service Manual

59
SJ63 AJ+, SJ63 AJ 229043AAA
Electrical Component Parts List Section 3 – System Component Identification and Schematics
3.5 Electrical Component Parts List
Index
No.
Skyjack
Part No.
Description
01ACR 931298
RELAY, Micro 12 V DC, 30 amp
(Base control console) (ANSI)
01ACR 127131 RELAY, 12 Volt 40 Amp (Base control console - E-pump) (CE & AS)
04ACR 931298 RELAY, Micro 12 V DC, 30 amp (Base control console)
07CR 127131 RELAY, 12 Volt 40 Amp (Base control console - E-pump/Enable)
08CR 127131 RELAY, 12 Volt 40 Amp (Platform control console - Footswitch/Starter interlock)
09CR 127131 RELAY, 12 Volt 40 Amp (Engine power on)
20CR 127131 RELAY, 12 Volt 40 Amp (Platform control console)
21CR 127131 RELAY, 12 Volt 40 Amp (Base control console - Dump valve)
27CR 127131 RELAY, 12 Volt 40 Amp (Platform control console - Tilt alarm)
36CR 127131 RELAY, 12 Volt 40 Amp (Platform control constole)
36CR1 127131 RELAY, 12 Volt 40 Amp (Base control constole)
37CR 127131 RELAY, 12 Volt 40 Amp (Base control constole)
45CR1 127131 RELAY, 12 Volt 40 Amp (Base control console - 2-SPD motor)
45CR2 127131 RELAY, 12 Volt 40 Amp (Base control console - 2-SPD motor controller)
49CR 127131 RELAY, 12 Volt 40 Amp (Base control console - Horn)
57ACR 127131 RELAY, 12 Volt 40 Amp (Base control console - Engine Start)
57BCR 127131 RELAY, 12 Volt 40 Amp (Base control console - Engine Start)
57DCR 931298 RELAY, Micro 12 V DC, 30 amp (Base control console)
59CR 127131 RELAY, 12 Volt 40 Amp (Base control console - Overload sensor)
60CR 127131 RELAY, 12 Volt 40 Amp (Base control console - System power)
78CR 127131 RELAY, 12 Volt 40 Amp (Base control console - High idle)
79CR 127131 RELAY, 12 Volt 40 Amp (Base control console - Low idle)
82CR 127131 RELAY, 12 Volt 40 Amp (Platform control console - Load sensing alarm)
86CR 127131 RELAY, 12 Volt 40 Amp (Optional oil cooler)
165CR 127131 RELAY, 12 Volt 40 Amp (Platform control console - Differential lock)
403ACR 931298 RELAY, Micro 12 V DC, 30 amp (Base control console - Positive air shut-off option)
2H-21A 159821 COIL, 12 Volt (Dump valve)
2H-34A 154679 COIL, 12 Volt (Jib enble valve)

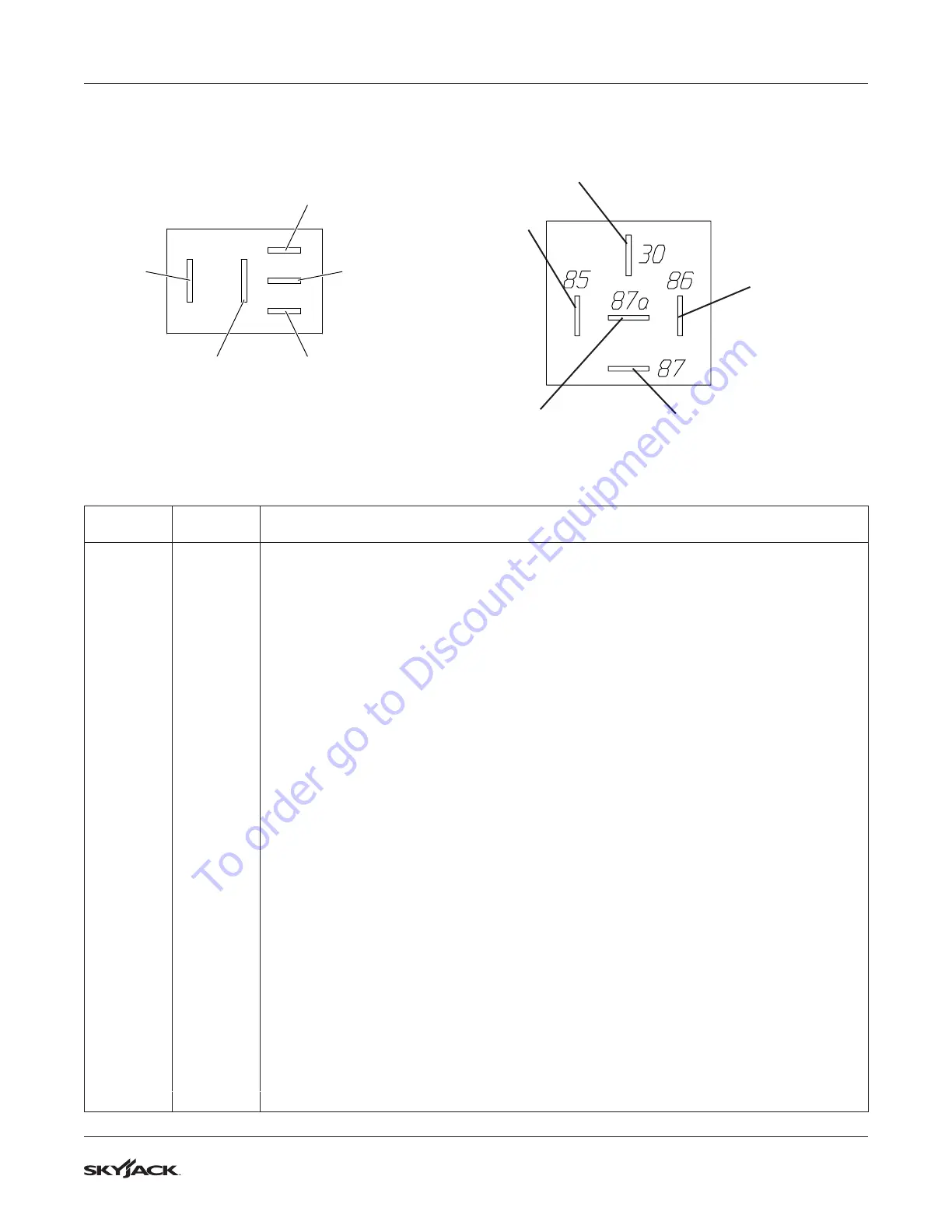

CONTROL (B+)
NORMALLY
CLOSED
CONTACT
SUPPLY (B+) (Common)
GROUND (B-)
NORMALLY
OPEN
CONTACT
Control B+
Supply (B+)
Ground (B-)Normally Open
Normally
Closed
