SJ63 AJ+, SJ63 AJ229043AAA

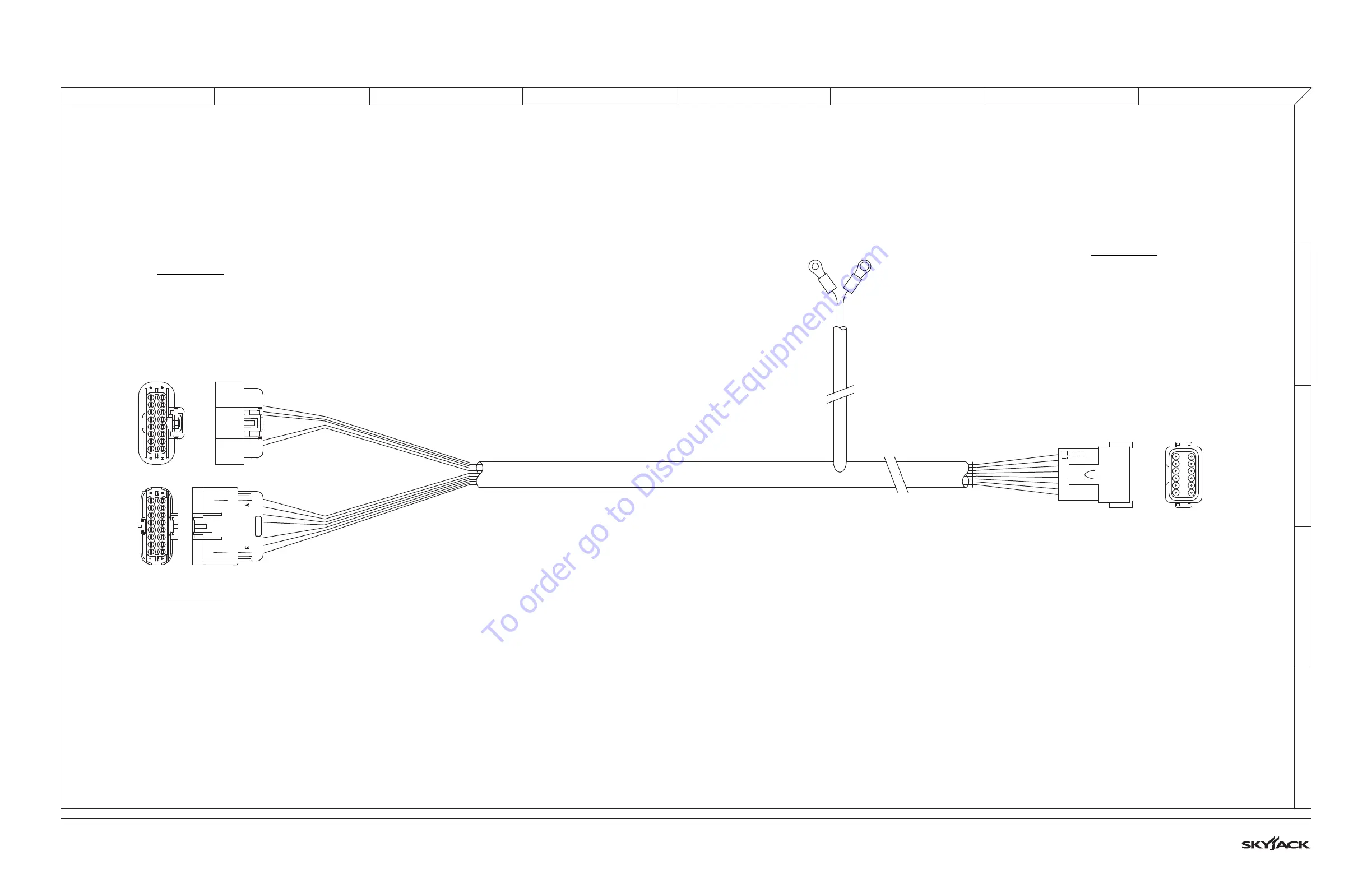

3.18 Engine Interface Harness - GM
7
8
9
10
11
12
1
2
3
4
5
6
DEUTSCH
3002
3056
ENGINE CONNECTOR 2
PIN C - 00A WHITE
PIN E - 02 WHITE
PIN F - 00B WHITE
PIN J - 78 RED/BLUE
PIN K - 79 BROWN/PURPLE
PINS (A,B,D,G,H,L,M,N,P,R,S) - N/U
BACK VIEW
ENGINE CONNECTOR 2
BACK VIEW
ENGINE CONNECTOR 1
ENGINE CONNECTOR 1
PIN A - 54A PURPLE/RED
PIN B - 77 BROWN/GREY
PIN C - 3002 WHITE
PIN D - 3056 BLACK
PIN F - 57A BROWN/GREEN
PIN G - 76 BROWN/BLUE
PIN H - 11 WHITE/ORANGE
PINS (E,J,K,L,M,N,P,R,S) - N/U
ENGINE CONNECTOR 1
PIN 1 - 02 WHITE
PIN 2 - 54A PURPLE/RED
PIN 3 - 57A BROWN/GREEN
PIN 4 - 11 WHITE/ORANGE
PIN 5 - 76 BROWN/BLUE
PIN 6 - 77 BROWN/GREY
PIN 7 - 78 RED/BLUE
PIN 8 - 79 BROWN/PURPLE
PIN 9 - 00B WHITE
PIN 10 - 00A WHITE
PINS (11,12) - N/U
BACK VIEW
FEUL PUMP (-)
3002 WHITE
FEUL PUMP (+)
3056 BLACK
M144265AD
