Skyjack SJ63 AJ+ Service Manual

A B C D E F G H
V
Z
Y
X
W
70
SJ63 AJ+, SJ63 AJ229043AAA

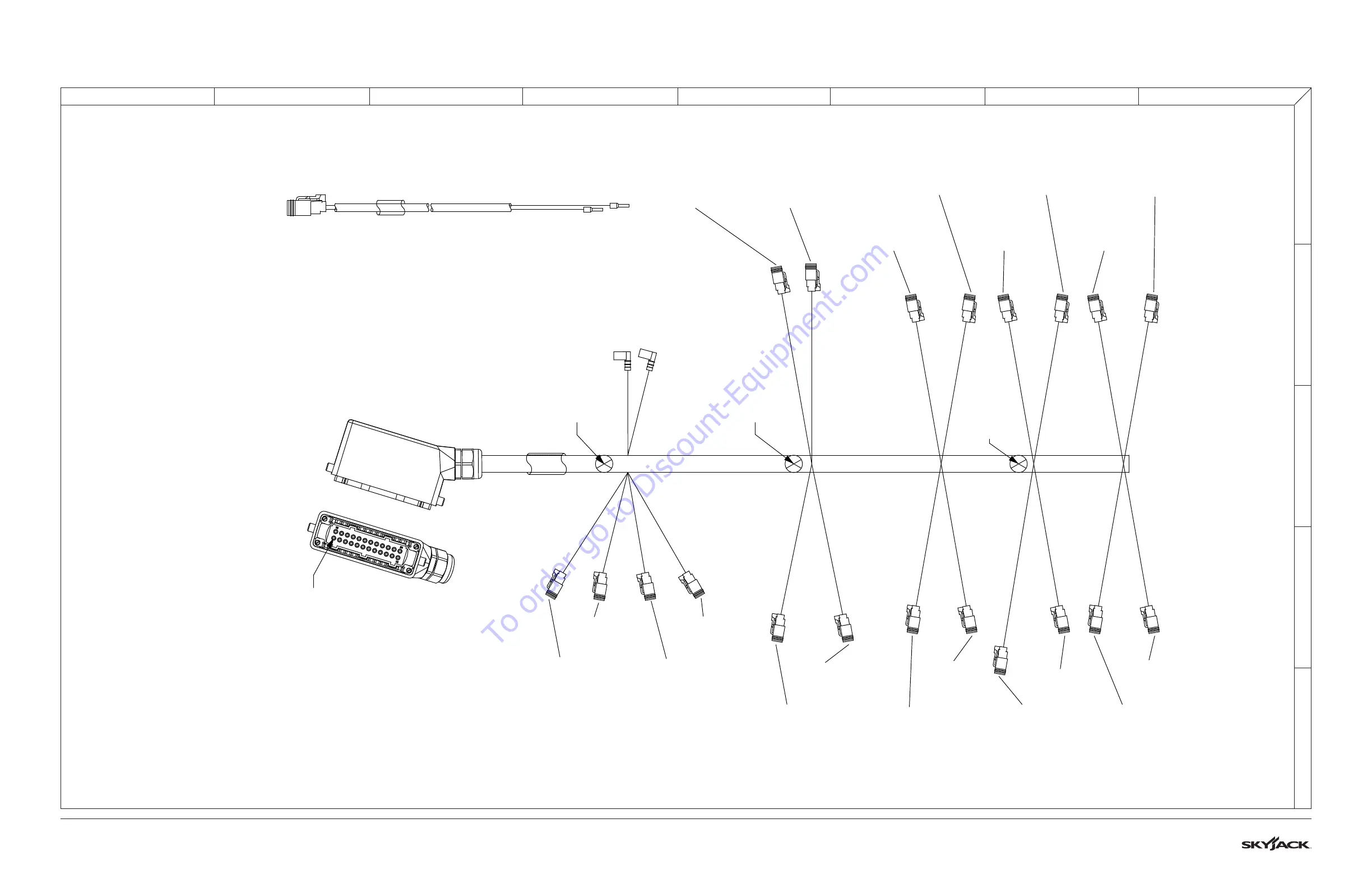

3.14 Main Electrical Harness and Fuel Level Switch Harness
SOCKET 1 - BLACK
SOCKET 2 - WHITE
MAIN ELECTRICAL HARNESS
49A
02
HORN
49A - GREEN/RED
02 - WHITE (SPLICE #3)
RISER UP
PIN 1 - 31 RED/WHITE
PIN 2 - 02 WHITE (SPLICE #1)
RISER DOWN
PIN 1 - 30 RED/GREEN
PIN 2 - 02 WHITE (SPLICE #1)
STEER LEFT
PIN 1 - 24A BLUE/BLACK
PIN 2 - 02 WHITE (SPLICE #1)
STEER RIGHT
PIN 1 - 23A BLACK/WHITE
PIN 2 - 02 WHITE (SPLICE #1)
JIB UP
PIN 1 - 35 ORANGE/WHITE
PIN 2 - 02 WHITE (SPLICE #2)
PLATFORM LEVEL UP
PIN 1 - 41 BLUE/PURPLE
PIN 2 - 02 WHITE (SPLICE #2)
PLATFORM LEVEL DOWN
PIN 1 - 40 BLUE/RED
PIN 2 - 02 WHITE (SPLICE #2)
TELESCOPE OUT
PIN 1 - 38 ORANGE/RED
PIN 2 - 02 WHITE (SPLICE #2)
TELESCOPE IN
PIN 1 - 39 BLACK/RED
PIN 2 - 02 WHITE (SPLICE #2)
BOOM DOWN
PIN 1 - 13 ORANGE
PIN 2 - 02 WHITE (SPLICE #1)
BOOM UP
BRAKE VALVE
PIN 1 - 14 BLACK
PIN 2 - 02 WHITE (SPLICE #1)
MOTOR TORQUE
PIN 1 - 45A YELOW/ORANGE
PIN 2 - 02 WHITE (SPLICE #3)
PIN 1 - 26 BLUE/YELLOW
PIN 2 - 02 WHITE (SPLICE #3)
DIFFERENTIAL LOCK VALVE
AXLE LOCK VALVE
PIN 1 - 65 YELOW/PINK
PIN 2 - 02 WHITE (SPLICE #3)
PIN 1 - 165 PINK/BLACK
PIN 2 - 02 WHITE (SPLICE #3)
TURRET ROTATE RIGHT
PIN 1 - 33 GREEN/WHITE
PIN 2 - 02 WHITE (SPLICE #1)
TURRET ROTATE LEFT
PIN 1 - 32 GREEN/BLACK
PIN 2 - 02 WHITE (SPLICE #1)
JIB DOWN
PIN 1 - 34 ORANGE/BLACK
PIN 2 - 02 WHITE (SPLICE #2)
DUMP VALVE
PIN 1 - 21A WHITE/RED
PIN 2 - 02 WHITE (SPLICE #2)
SPLICE #2
1
1
1
1 1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
PIN 3 - 21A - WHITE/RED
PIN 4 - 23A - BLACK/WHITE
PIN 1 - 13 - ORANGE
PIN 2 - 14 - BLACK
PIN 5 - 24A - BLUE/BLACK
PIN 6 - 26 - BLUE/YELLOW
PIN 7 - 30 - RED/GREEN
PIN 8 - 31 - RED/WHITE
PIN 9 - 32 - GREEN/BLACK
PIN 10 - 33 - GREEN/WHITE
PIN 11 - 34 - ORANGE/BLACK
PIN 12 - 35 - ORANGE/WHITE
PIN 13 - 38 - ORANGE/RED
PIN 14 - 39 - BLACK/RED
PIN 15 - 40 - BLUE/RED
PIN 16 - 41 - BLUE/PURPLE
PIN 17 - 45A - YELLOW/ORANGE
PIN 18 - 49A - GREEN/RED
PIN 19 - 65 - YELLOW/PINK
PIN 20 - 36 - RED/PURPLE
PIN 21 - 165 - PINK/BLACK
PIN 22 - 02 - WHITE (SPLICE #1)
PIN 23 - 02 - WHITE (SPLICE #2)
PIN 24 - 02 - WHITE (SPLICE #3)
ROTATE ENABLE
PIN 1 - 36 RED/PURPLE
PIN 2 - 02 WHITE (SPLICE #2)
SPLICE #1SPLICE #3
PIN 1 THIS CORNER
1
M153816AD M153941AB-SM
