287
SJ63 AJ+, SJ63 AJ 229043AAA
Axles Section 5 – Procedures
10. Remove the plugs and reconnect the hoses to
the cylinder fittings, torquing the larger hose end
to 28 Nm (21 ft-lb) and the smaller hose end to
16 Nm (12 ft-lb).
11. Reinstall the base cover and remove the block of
wood.
12. Turn the engine on and let it run for a few
minutes to pressurize the cylinder, then turn it off
again.
13. Check the oil level using the hydraulic tank sight
gauge. Add more hydraulic oil if needed.
14. Bleed the cylinder (refer to the next procedure).
5.10-8 Bleed the Oscillating Axle Cylinders
If the axle oscillation system is not operating properly,
the stability of the MEWP is compromised and it may
tip over.
Items you will need before starting:
â–ª
oil container
â–ª
hose (to reach from bleeders to bucket)

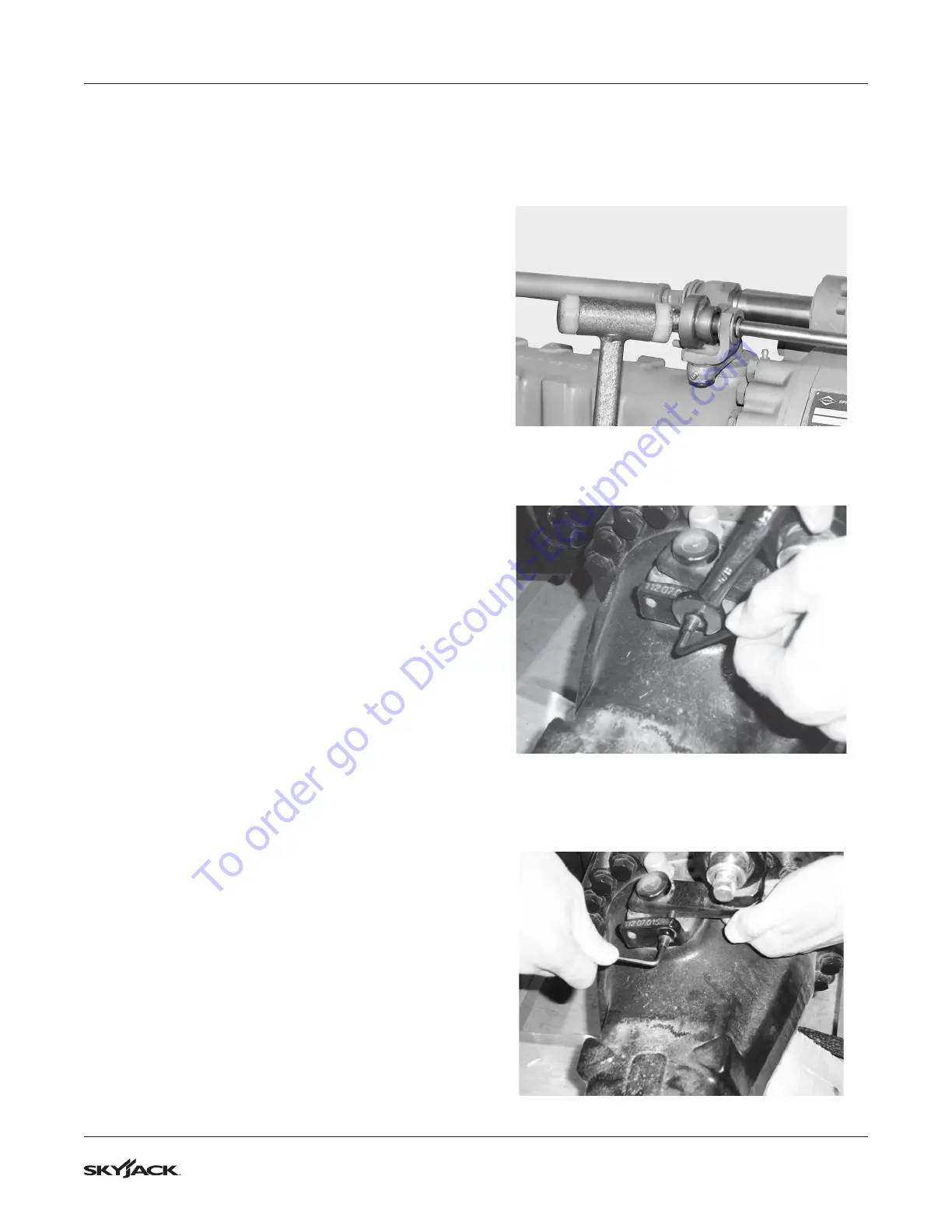

1. Locate a bleeder on either side of the oscillating
axle cylinder.
2. Connect a hose to the bleeder nipple.
3. Start the engine and slowly open the bleeder to
allow the oil to flow in a continuous stream.
4. Close the bleeder.
5. Repeat the procedure with the other oscillating
axle cylinder.
5.10-9 Pin Brake Adjustments
1. To manually release the brake give a light blow
to the external ring of the check unit.
2. To adjust the idle elimination, loosen the jam nut
and back out the adjustment stem a few turns.
3. Apply a 1 kg (2 lb) force in the direction of the
brake application, and turn the adjusting stem
so it touches the stop.
