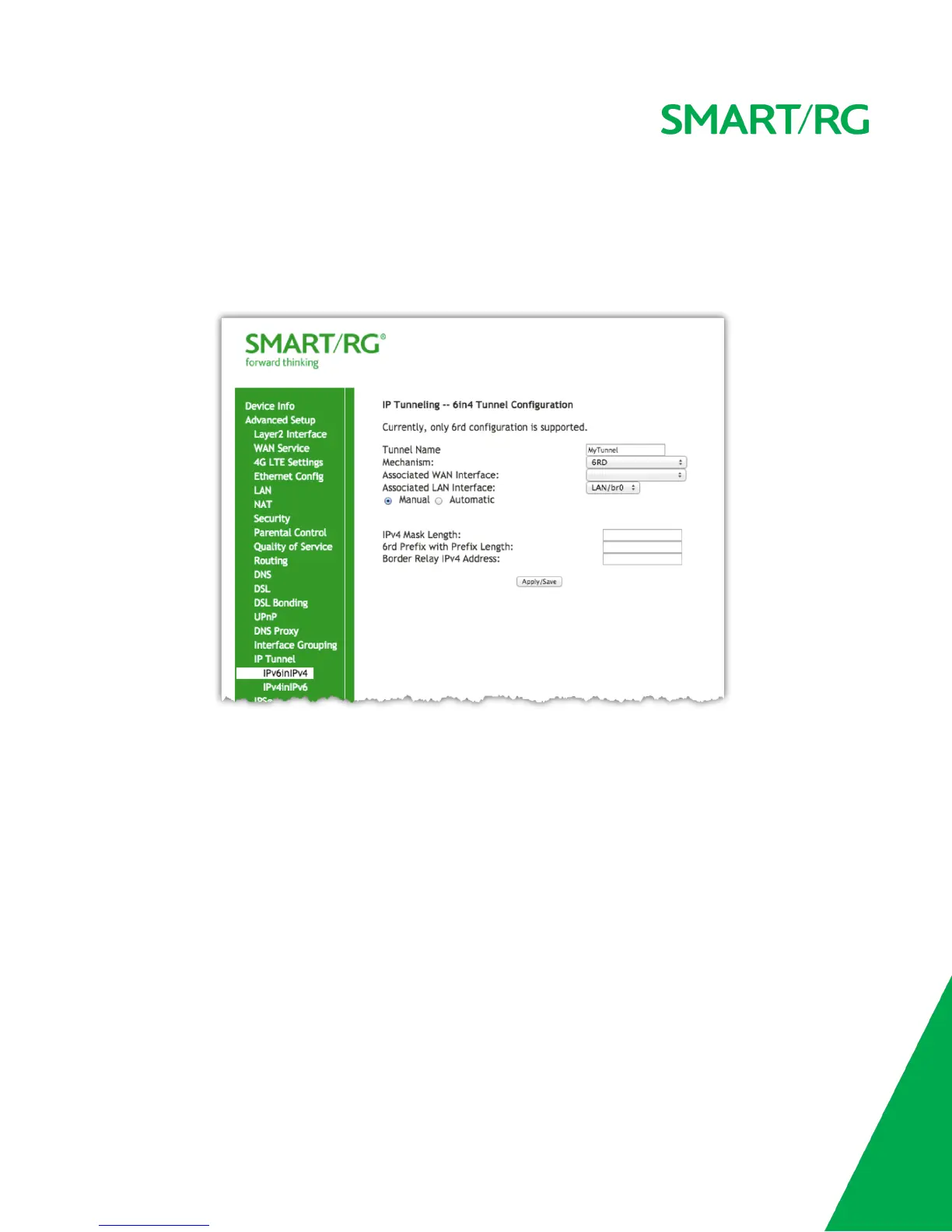

1. Enter a Tunnel Name
2. Currently, only the 6rd Mechanism is supported
3. Select the appropriate LAN and WAN interfaces from the drop-down lists associated with the tunnel you wish to establish.
4. IPv4 Mask Length, 6rd Prefix with Prefix Length and Border Relay IPv4 Address can be configured automatically. Select the Manual radio
button to specify your desired settings for these fields.
Click Apply/Save to commit your changes.
IPv4inIPv6
After selecting Advanced Setup -> IP Tunnel -> IPv4inIPv6 from the left navigation bar, click the Add button. The screen shown on the next page
will appear.
1. Enter a Tunnel Name
2. Currently, only the DS-Lite Mechanism is supported. Consult RFC6333 for further information regarding DS-Lite.
3. Select the appropriate LAN and WAN interfaces from the drop-down lists associated with the tunnel you wish to establish.
4. AFTR (Address Family Transition Router) may be configured automatically. Select the Manual radio button to specify your desired value
for fields.
Click Apply/Save to commit your changes.
