Field Name Description
Destination MAC Address
Destination MAC Mask
Enter the destination MAC Address and destination MAC Mask applied to classification.
Source IP Address/Mask Enter the source IP Address and Source IP Mask applied to classification.
Protocol (Optional) Enter the Protocol specified for classification criteria.
UDP/TCP Source Port
(Optional) Enter the Source Port applicable for classification criteria. Expressed as a range or single port. (port:port
or port).
UDP/TCP Destination Port
(Optional) Enter the Destination Port applicable for classification criteria. Expressed as a range or single port.
(port:port or port).
Specify Class Queue
Choose from available queues in the drop-down list.
Packets classified into a queue that exit through an interface for which a queue is not specified to exist, will instead
egress to the default queue on the interface.
Mark Applied
Differentiated Service
Code Point
Select the desired DSCP code from the drop down list.
802.1P priority
[1-7] (Lower values have higher priority.) This value is inserted into the Ethernet frame to be used by QoS disciplines
to differentiate traffic.
Rate Limit (kbps) Data traffic rate limit applied to classification.

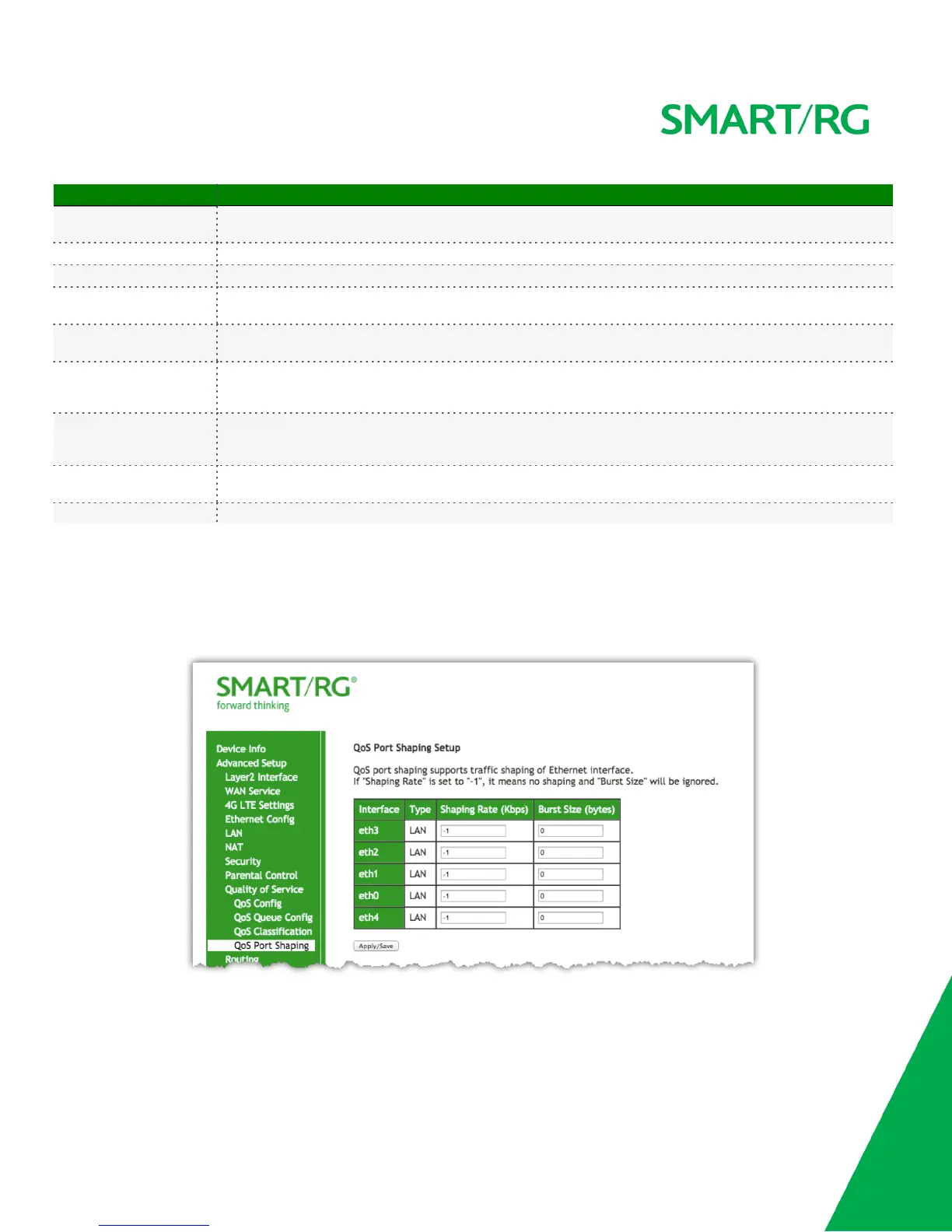

QoS Port Shaping
QoS Port Shaping facilitates setting a fixed rate (Kbps) for each of the Ethernet ports.
Select Advanced Setup -> Quality Of Service -> QoS Port Shaping and the following screen will appear.
Click the Apply/Save button to commit the changes entered.
