143
Data Manager Operations Scanner DataViewer Operation
11.6.1 Menu Bar
The menu bar at the top of the screen contains the File, View, Tools, and Help menus.
File Menu
The File menu offers the following selections:
• Load—locate and open data files, launches a navigation window
• Print—print selected pids
• Print Preview—preview pids before printing
• Exit—closes Scanner DataViewer
When Print or Print Preview is selected, a dialog box opens and allows you to define the printed
output. Print settings include, print as graphs or text, which pids to include, number of pids per
page, display colors, and the text font (Figure 11-18).

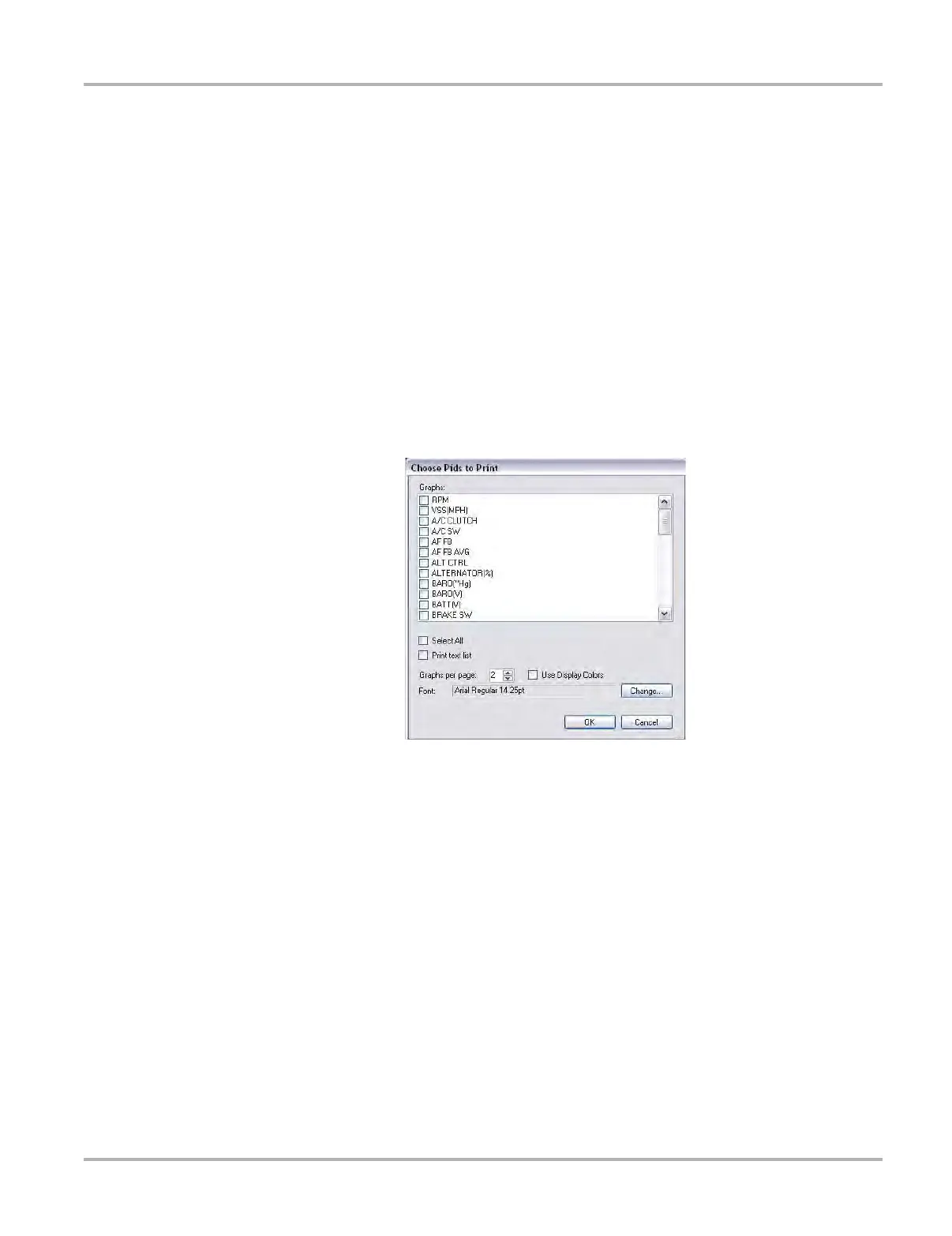

Figure 11-18 Pids print settings
z To print:
1. Select the desired pids. A checked box indicates the pid will be printed. Select again to
deselect the pid.
2. Select Change to modify the font, this opens a standard Windows font dialog box.
a. Modify the font as desired.
b. Select OK to close the font dialog box.
3. Once all selections are made, select OK.
A print dialog box opens.
4. Select OK.
a. If Print was selected, the file is sent to the printer.
b. If Print Preview was selected, a preview window opens. Select the printer icon
(Figure 11-19) to send the file to the printer.
