3.3.3 Function Icons

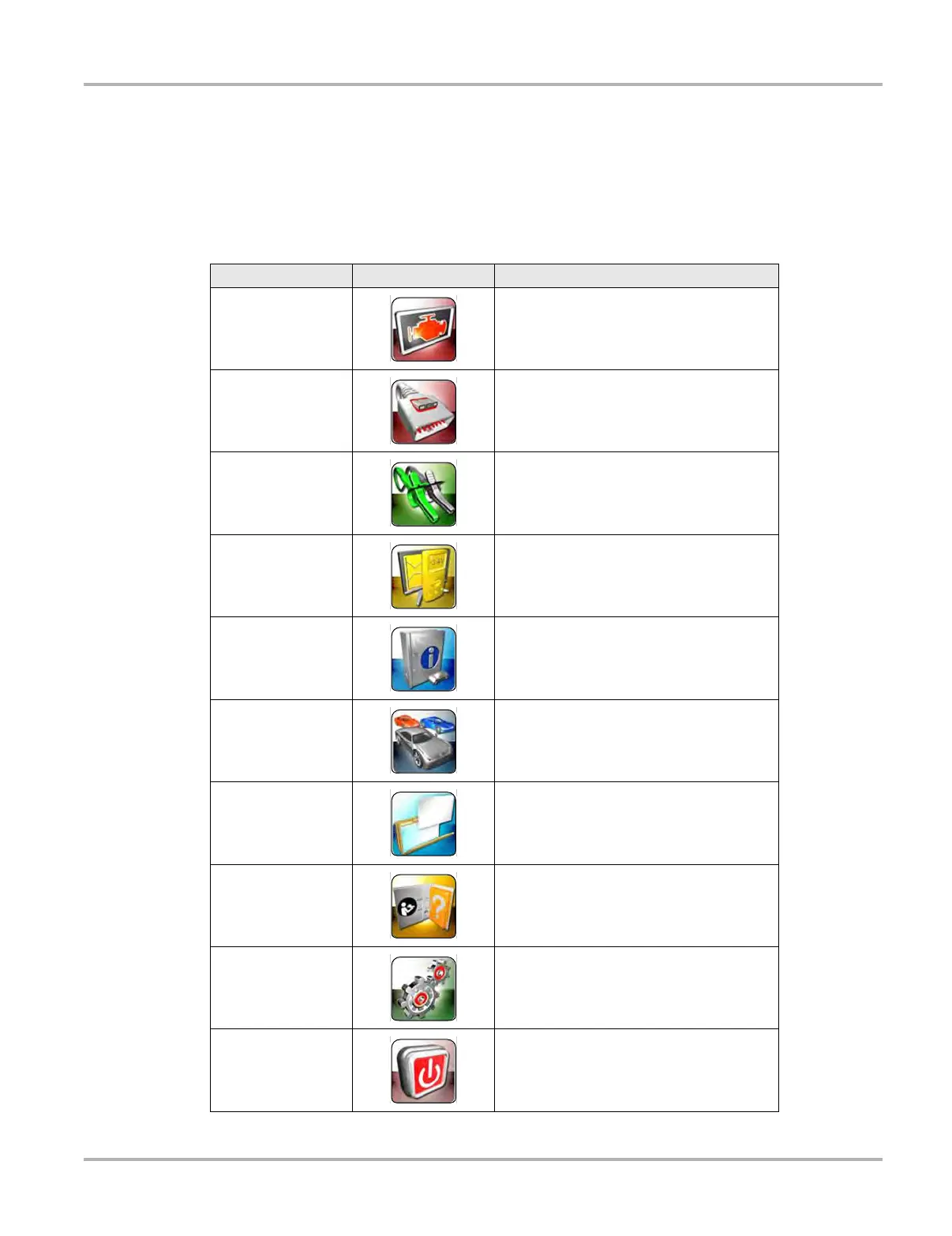

The Function Icons configure the diagnostic tool for the type of test to be performed. Tabl e 3-1
gives brief descriptions of the available icons, which operations are available depends upon the
individual configuration of your system. Use the stylus or your finger tip to select from the icons.
Table 3-1
Name Icon Description
Scanner
Configures the diagnostic tool to operate as
a scan tool. See “Scanner Operations” on
page 20.
OBD Direct
Allows you to perform generic OBD-II or
EOBD system tests without identifying the
specific vehicle. See “OBD Direct
Operations” on page 67.
Guided Component
Test
Opens a diagnostic database of specific
tests for the identified vehicle. See “Guided
Component Test Operations” on page 75.
Scope Multimeter
Configures the diagnostic tool to operate as
a lab scope, graphing multimeter, or digital
multimeter. See “Scope Multimeter” on
page 86.
Information
Provides the information needed to make
repairs once you have made your
diagnosis. The linked program varies by
region. See “Information” on page 111.
Vehicle History
Identifies the test vehicle and organizes and
manages work in progress and service
records. See “Vehicle History Operations”
on page 123.
Data Manager
Opens the organization system for saved
data files. See “Data Manager Operations”
on page 129.
Help
Opens the on-line help for the system. See
“Help Operations” on page 154.
System Settings
Establishes and manages connections to
peripheral devices. See “System Settings
Operations” on page 155.
Exit
Closes the diagnostic tool software and
returns the display to the Windows desktop.
See “Turning Off” on page 12.
