10
Introduction Scan Module (Wireless)
2.2 Scan Module (Wireless)
The wireless Scan Module is provided as standard equipment on all late-model VERUS
Diagnostic Tools. Early VERUS Diagnostic Tools, which are designed to operate with a cable
connection to the test vehicle, can also be converted to operate with the wireless Scan Module.
2.2.1 Functional Description

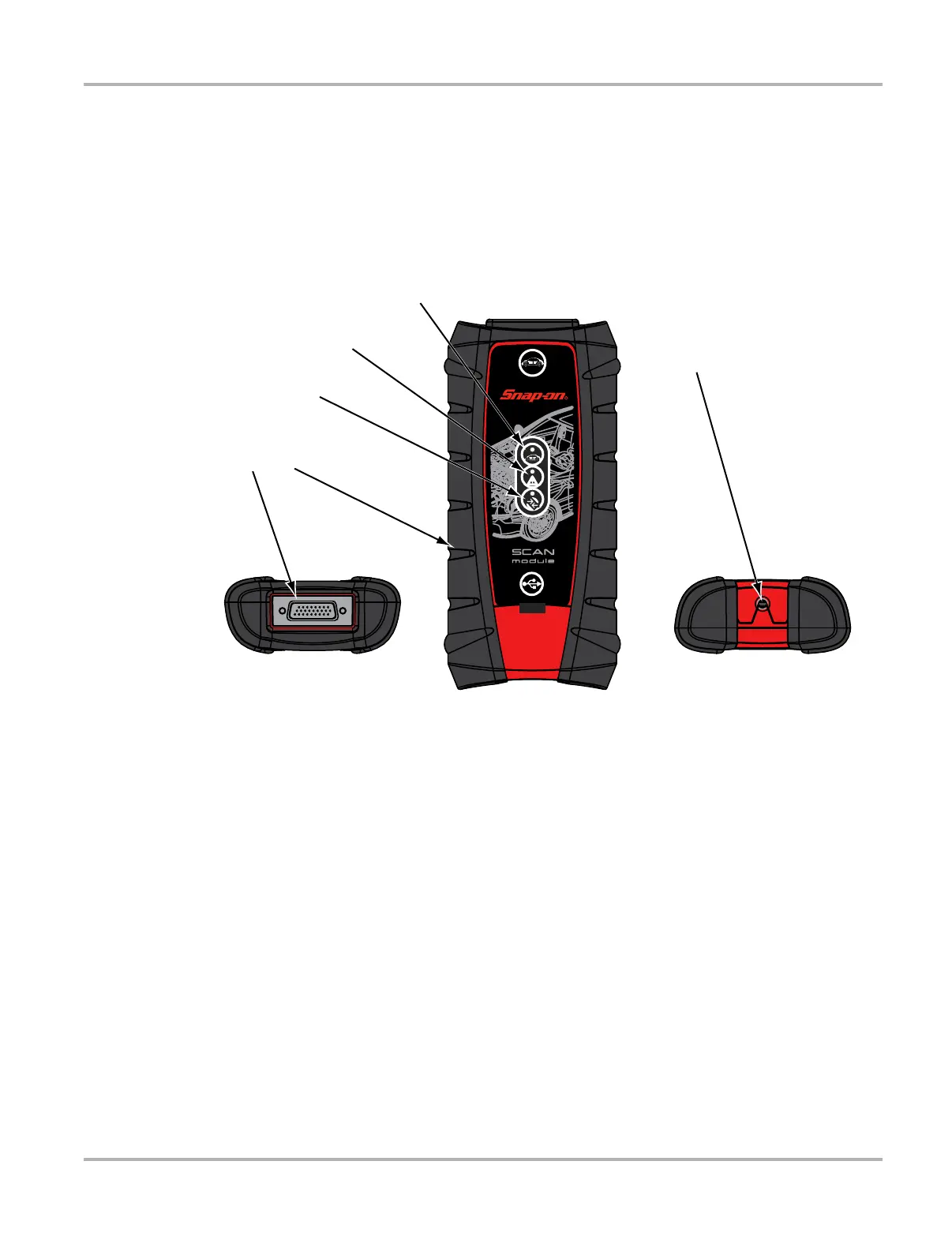

1— Data cable connector
2— Memory card port (remove protective hand grip for access)
3— Bluetooth LED (green)
4— Communication issue LED (red)
5— Vehicle power LED (green)
6— Universal serial bus (USB) jack (remove protective hand grip for access)
Figure 2-5 Scan Module
Wireless Communication
The wireless Scan Module is a communication device that transmits vehicle data to the Diagnostic
Tool without a physical connection. The working range of the transmitter is about 30 feet (9.14 m).
A signal lost due to moving out of range automatically restores itself when the Diagnostic Tool is
brought closer to the Scan Module. The Scan Module sounds a tone and the Diagnostic Tool
shows a warning message when the signal is lost.
($//%
5
7RS
)URQW
%RWWRP
