Data Manager Operations Scanner DataViewer Operation
Help Menu
The Help menu provides Scanner Viewer software version information.
11.6.2 Display Toolbar
The Display toolbar provides the following controls (Figure 11-22).
• Exit—closes Scanner DataViewer.
• Hide PID List—toggles display between parameter text and graph views.
• Display Views (1 to 16)—determines how many graphs display at a time.
• Scale—switches the scale values shown to the left of the graph off and on.
• Sweep—switches the sweep values shown below the graph off and on.

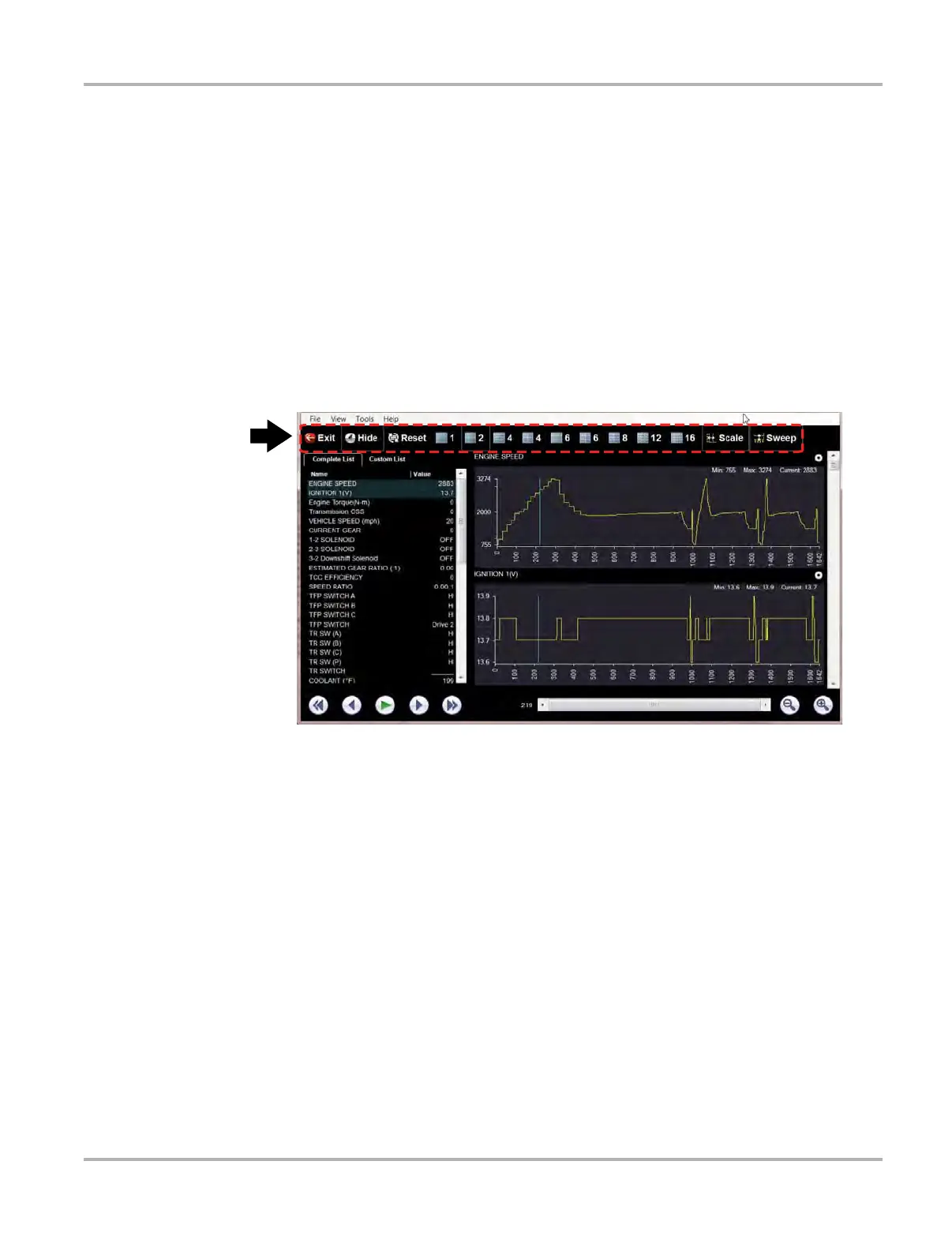

Figure 11-22 Display toolbar
