7.2 Operations
The Guided Component Test software provides vehicle specific guided component test
procedures and information that aid in setting up scopes and meters. Once a test vehicle is
identified, you can select a g
uided component test from the list of available tests. For most
selections two main choices are available on the component menu:
1. COMPONENT INFORMATION—provides information on the selected component and
connector pin details that assists you in understanding the components prior to diagnosis.
2. TESTS—provides a pre-configured list of tests, guides you through performing the tests, and
offers tips and resources to reduce setup and testing time.
7.2.1 Component Information
Component Information provides details on specific vehicle components to provide a better
understanding of the components prior to diagnosis.
The Component Information screens contain information to assist you with testing. The screens
are divided in sections to help quickly guide you to the correct information (Figure 7-6):
• Operation—provides a general description of normal component operation.
• Connector—displays the component connector and lists pin assignments.
• Location—identifies the component location and the best place for testing it.
• Tech note—provides guided component test-related tips (for example, common failures or
faults) as well as update or recall information.

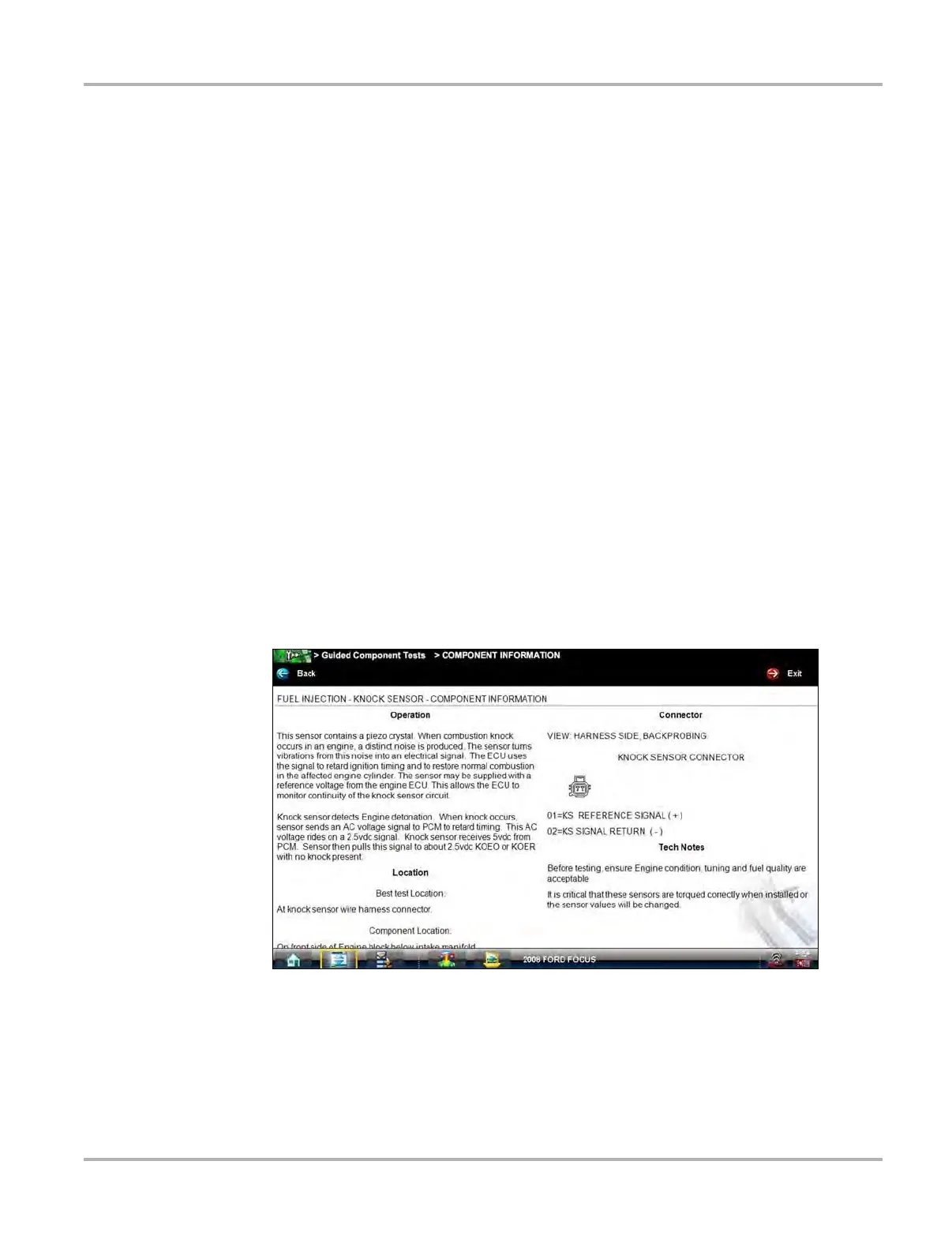

Figure 7-6 Sample Component Information screen
z To view component information:
1. Select a component from the tests list.
2. Select COMPONENT INFORMATION from the component menu.
