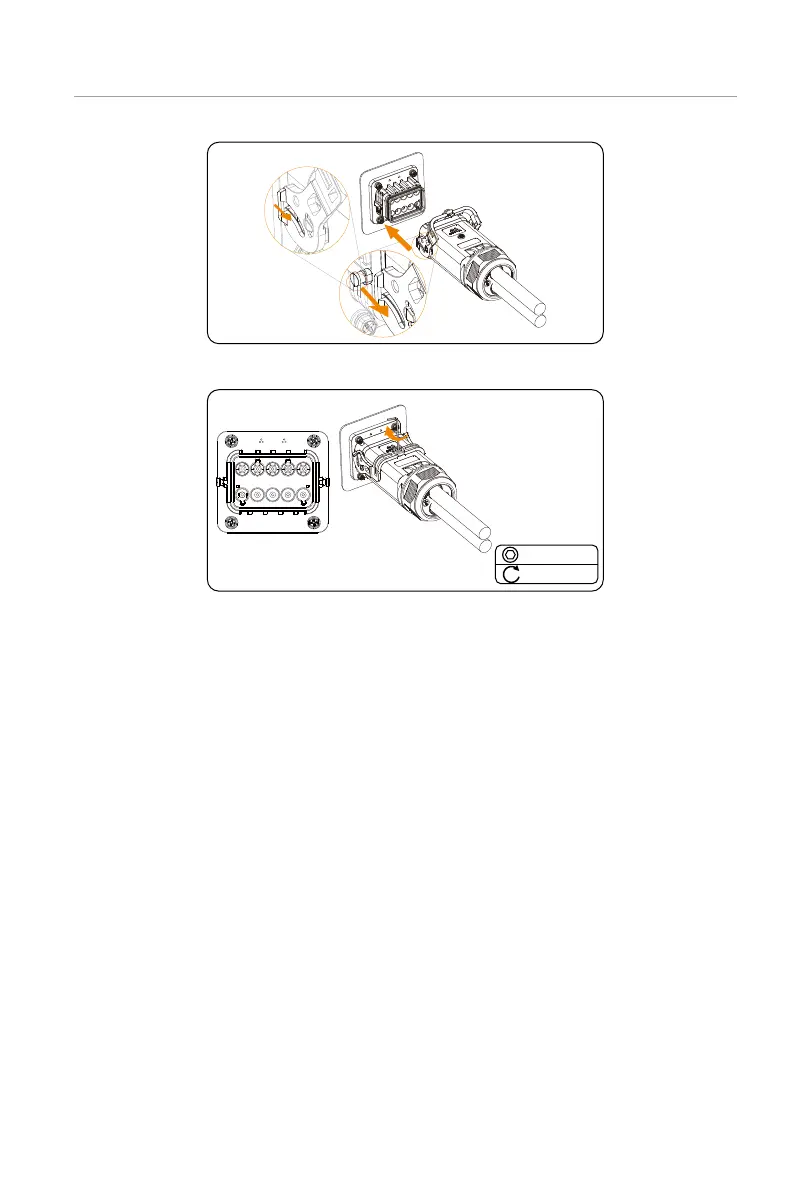

Figure 7-27 Plugging the AC connector into the port on the inverter
Allen key
2.5±0.1 N·m
PE L1 L2 L3 N
EPS
GRID
outer side
inner side
Figure 7-28 Tightening the lock on the AC connector
